AMIS-30543 Stepper Motor Driver Carrier


Description

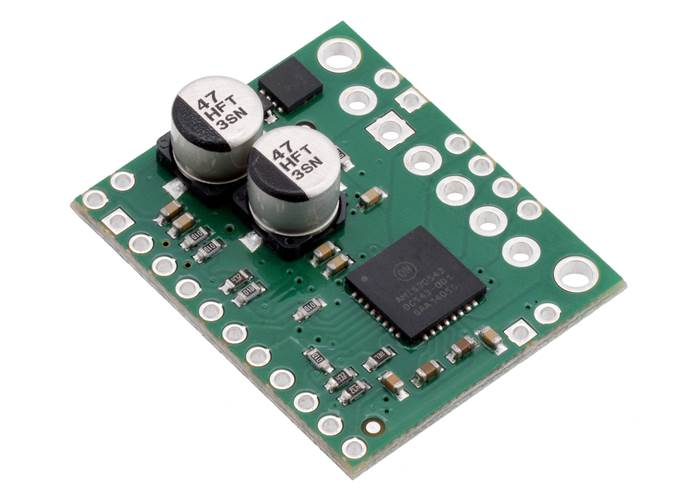

AMIS-30543 stepper motor driver carrier, bottom view with dimensions

AMIS-30543 stepper motor driver carrier, bottom view with dimensions

Overview

This product is a carrier board or breakout board for ON Semiconductor’s AMIS-30543 Micro-Stepping Motor Driver; we therefore recommend careful reading of the AMIS-30543 datasheet (495k pdf) before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 3 A output current per coil (see the Power Dissipation Considerations section below for more information). Here are some of the board’s key features:

  • Standard step and direction control interface
  • SPI interface for configuring settings (e.g. step mode, current limit, sleep) and reading status registers
  • Speed and load angle output that can be used for stall detection or closed-loop control of the torque and speed based on the load angle
  • Eleven different step modes: full-step (uncompensated, compensated 1-phase, or compensated 2-phase), half-step (uncompensated or compensated), 1/4-step, 1/8-step, 1/16-step, 1/32-step, 1/64-step, and 1/128-step
  • SPI-programmable current control (from 132 mA to 3 A) enables your microcontroller to adjust the peak-current limit on the fly as more or less torque or speed is needed
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • Low-EMI PWM with SPI-selectable voltage slopes
  • Compatible with 5 V and 3.3 V microcontrollers
  • Integrated 5V regulator that can be used to supply an external microcontroller
  • Integrated watchdog function
  • Open coil detection
  • Thermal warning indicates when the driver is close to the thermal shutdown temperature
  • Over-current status and shutdown (short-to-ground and shorted-load protection)
  • Reverse voltage protection

Note: This driver needs to be enabled and configured through its SPI interface on power up, so your microcontroller must be capable of acting as an SPI master (either with an SPI peripheral or software SPI).

AMIS-30543 stepper motor driver carrier with included hardware

AMIS-30543 stepper motor driver carrier with included hardware

Included hardware

This product ships with all surface-mount components—including the AMIS-30543 driver IC—installed as shown in the product picture. However, soldering is required for assembly of the included through-hole parts. The following through-hole parts are included:

The 0.1″ male header can be broken or cut into smaller pieces as desired and soldered into the smaller through-holes. These headers are compatible with solderless breadboards, 0.1″ female connectors, and our premium and pre-crimped jumper wires. The terminal blocks can be soldered into the larger holes to allow for convenient temporary connections of unterminated power and stepper motor wires. You can also solder your motor leads and other connections directly to the board for the most compact installation.

AMIS-30543 stepper motor driver carrier assembled with included header pins facing up

AMIS-30543 stepper motor driver carrier assembled with included header pins facing up

AMIS-30543 stepper motor driver carrier assembled for use with a breadboard (with IOREF=VDD)

AMIS-30543 stepper motor driver carrier assembled for use with a breadboard (with IOREF=VDD)

Using the driver

Pinout

AMIS-30543 stepper motor driver carrier, top view with labeled pinout

AMIS-30543 stepper motor driver carrier, top view with labeled pinout

PIN Description
VMOT Reverse-protected 6 V to 30 V board power supply connection. Note: Available VDD current is reduced for input voltages under 8 V, and sleep mode is not available for input voltages under 9 V.
VBB This pin gives access to the motor power supply after the reverse-voltage protection MOSFET (see the board schematic below). It can be used to supply reverse-protected power to other components in the system. It is generally intended as an output, but it can also be used to supply board power.
GND Ground connection points for the motor power supply and control ground reference. The control source and the motor driver must share a common ground.
MOTXP Motor output: “positive” end of phase X coil.
MOTXN Motor output: “negative” end of phase X coil.
MOTYP Motor output: “positive” end of phase Y coil.
MOTYN Motor output: “negative” end of phase Y coil.
VDD (5V OUT) The board is powered by an internal 5V regulator, and this pin gives access to the regulated 5 V output. This can be used to supply the neighbouring IOREF pin when using this board in 5V systems, and it can be used to power an external microcontroller. When VMOT is over 8 V, approximately 30 mA is available for external components; when VMOT is less than 8 V, the available current drops to less than 10 mA.
IOREF All of the board signal outputs (except SLA) are open-drain outputs that are pulled up to IOREF, so this pin should be supplied with the logic voltage of the controlling system (e.g. 3.3V for use in 3.3V systems). For convenience, it can be connected to the neighbouring VDD pin when it is being used in a 5V system.
NXT Changes on this input move the motor current one step up or down in the translator table (even when the motor is disabled). The edge that triggers the step depends on the NXT-polarity configuration bit, which can be changed through the SPI interface (rising edge by default).
DIR Input that determines the direction of rotation. The direction can also be controlled through the SPI interface.
DO SPI data output. (This pin is also often referred to as “MISO”.)
DI SPI data input. (This pin is also often referred to as “MOSI”.)
CLK SPI clock input.
CS SPI chip select input. Logic transitions on this pin are required for SPI communication, even if this is the only device on the SPI bus.
CLR Chip reset input. A logic high on this input clears all internal registers, except in sleep mode.
ERR Error output. This pin drives low to indicate that an error condition has occurred. The specific error can be determined by using the SPI interface to check the error flags.
POR/WD Power-on reset/watch dog function output. This pin provides an active-low signal that can be used as a reset input for an external microcontroller.
SLA (filtered) SLA (speed and load angle) output after a low-pass filter. The result is an analogue voltage between 0  V and 5 V that indicates the level of the back-EMF voltage of the motor. This signal can be used for stall detection or closed-loop control of the torque and speed based on the load angle. Note: Since the output of this pin ranges from 0 V to 5 V regardless of IOREF, extra precautions should be taken when connecting this pin to a 3.3V device (such as passing it through an appropriate voltage divider).

General minimal wiring diagram

Minimal wiring diagram for connecting a microcontroller to an AMIS-30543 stepper motor driver carrier

Minimal wiring diagram for connecting a microcontroller to an AMIS-30543 stepper motor driver carrier

While the AMIS-30543 allows control of a stepper motor through a simple step (NXT) and direction (DIR) interface, it first needs to be enabled and configured through its SPI interface. This means that the controlling microcontroller must be capable of acting as an SPI master (either with an SPI peripheral or software SPI), and it must be connected to the DI, CLK, and CS pins. While the DO and ERR pins are not required to use this driver, it is generally a good practice to use them to monitor for error conditions.

Minimal wiring diagram (5 V systems only)

Minimal wiring diagram for connecting a microcontroller with a logic voltage of 5 V to an AMIS-30543 stepper motor driver carrier

Minimal wiring diagram for connecting a microcontroller with a logic voltage of 5 V to an AMIS-30543 stepper motor driver carrier

The AMIS-30543 has an internal 5 V regulator that can be used to supply IOREF in cases where the board is being used in 5 V systems. This internal regulator can also be used to supply the external microcontroller’s logic voltage if the regulator can deliver the required current, in which case there would be a wire from the AMIS-30543 VDD to the microcontroller VDD in the above diagram, and the “logic power supply” box would not be present.

Arduino library and example code

Controlling an AMIS-30543 stepper motor driver carrier with an Arduino-compatible #3104 A-Star 32U4 Mini SV

Controlling an AMIS-30543 stepper motor driver carrier with an Arduino-compatible #3104 A-Star 32U4 Mini SV

If you are new to the AMIS-30543 or stepper motors in general, our AMIS-30543 Arduino library can help you get started. The library provides basic functions for configuring and operating the driver using an Arduino or Arduino-compatible controller. It also provides access to many of the driver’s advanced features and includes example sketches that show you how to use them.

Power dissipation considerations

The AMIS-30543 driver IC has a maximum current rating of 3 A per coil, but the actual current you can deliver depends on how well you can keep the IC cool. The carrier’s printed circuit board is designed to draw heat out of the IC, but to supply more than approximately 1.8 A per coil continuously, a heat sink or other cooling method is required. However, it is possible to use the SPI-configurable current limit to selectively deliver higher currents than this for short durations without overheating the driver.

This product can get hot enough to burn you long before the chip overheats. Take care when handling this product and other components connected to it.

Please note that measuring the current draw at the power supply will generally not provide an accurate measure of the coil current. Since the input voltage to the driver can be significantly higher than the coil voltage, the measured current on the power supply can be quite a bit lower than the coil current (the driver and coil basically act like a switching step-down power supply). Also, if the supply voltage is very high compared to what the motor needs to achieve the set current, the duty cycle will be very low, which also leads to significant differences between average and RMS currents.

Schematic diagram

AMIS-30543 stepper motor driver carrier schematic diagram

AMIS-30543 stepper motor driver carrier schematic diagram

This diagram is also available as a downloadable pdf: AMIS-30543 stepper motor driver carrier schematic (231k pdf)


Specifications

Dimensions

Size: 1.0″ × 1.2″
Weight: 4.0 g1

General specifications

Minimum operating voltage: 6 V2
Maximum operating voltage: 30 V
Continuous current per phase: 1.8 A3
Maximum current per phase: 3 A4
Minimum logic voltage: 2.5 V
Maximum logic voltage: 5.5 V
Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128
Reverse voltage protection?: Y

Notes:

1
Without included optional headers or terminal blocks.
2
The regulated 5V (VDD) output current is reduced for input voltages under 8 V, and sleep mode is not available for input voltages under 9 V.
3
Without a heat sink or forced air flow.
4
With sufficient additional cooling.

Resources

File downloads

ON Semiconductor AMIS-30543 stepper motor driver datasheet (495k pdf)
AMIS-30543 stepper motor driver carrier schematic diagram (231k pdf)
Printable schematic diagram of the AMIS-30543 Motor Driver Carrier.
Dimension diagram of the AMIS-30543 Stepper Motor Driver Carrier (437k pdf)
Drill guide for the AMIS-30543 Stepper Motor Driver Carrier (50k dxf)
This DXF drawing shows the locations of all of the board’s holes.
AMIS-30543 application note: how to measure Bemf on the SLA-pin (1MB PDF)
This application note from ON Semiconductor explains how to use the Speed and Load Angle (SLA) output to build accurate stall-detection and torque-adaptive algorithms.

Recommended links

AMIS-30543 library for Arduino
An Arduino library for controlling the AMIS-30543 micro-stepping stepper motor driver.
ON Semiconductor AMIS-30543 product page
ON Semiconductor product page for the AMIS-30543 microstepping stepper motor driver, where you can find the latest datasheet, application notes, and additional resources.

FAQs

I want to control a 3.6 V, 2 A per phase bipolar stepper motor like this, but your AMIS-30543 stepper motor driver carrier has a minimum operating voltage of 6 V. Can I use this driver without damaging the stepper motor?

Yes. To avoid damaging your stepper motor, you want to avoid exceeding the rated current, which is 2 A in this instance. The AMIS-30543 stepper motor driver lets you limit the maximum current, so as long as you set the limit below the rated current, you will be within spec for your motor, even if the voltage exceeds the rated voltage. The voltage rating is just the voltage at which each coil draws the rated current, so the coils of your stepper motor will draw 2 A at 3.6 V. By using a higher voltage along with active current limiting, the current is able to ramp up faster, which lets you achieve higher step rates than you could using the rated voltage.

If you do want to use a lower motor supply voltage (under 6 V) for other reasons, consider using our DRV8834 low-voltage stepper motor driver carrier.

Do I really need to set the current limit on my stepper motor driver before using it, and if so, how do I do it?

Yes, you do! Setting the current limit on your stepper motor driver carrier is essential to making sure that it runs properly. An appropriate current limit also ensures that your motor is not allowed to draw more current than it or your driver can handle, since that is likely to damage one or both of them.

Setting the current limit on our AMIS-30543 stepper motor driver carrier is done through its SPI interface (this is very different from our A4988, DRV8825, DRV8824, and DRV8834 stepper motor driver carriers, which have their current limits set through their on-board potentiometers). The AMIS-30543 defaults to its lowest possible current limit (132 mA) when it is first enabled; you will need to set this to an appropriate value for your stepper motor before your system will work properly. The AMIS-30543 data sheet (495k pdf) has more information on how to set the current limit through the SPI interface, and our AMIS-30543 Arduino library includes an example sketch showing how to implement this in software.

My AMIS-30543 stepper motor driver is overheating, but my power supply shows it’s drawing significantly less than 1.8 A per coil. What gives?

Measuring the current draw at the power supply does not necessarily provide an accurate measure of the coil current. Since the input voltage to the driver can be significantly higher than the coil voltage, the measured current on the power supply can be quite a bit lower than the coil current (the driver and coil basically act like a switching step-down power supply). Also, if the supply voltage is very high compared to what the motor needs to achieve the set current, the duty cycle will be very low, which also leads to significant differences between average and RMS currents: RMS current is what is relevant for power dissipation in the chip but many power supplies won’t show that. You should base your assessment of the coil current on what the limit has been set to (through the SPI interface) or by measuring the actual coil currents.

While the AMIS-30543 driver IC is rated for up to 3 A (peak) per coil, the chip by itself will overheat at lower currents. We have found that it generally requires a heat sink to deliver more than approximately 1.8 A per coil, but this number depends on factors such as ambient temperature and air flow. For example, sealing three driver carriers in close proximity in a small box will cause them to overheat at lower currents than a unit by itself in open air. It is worth noting that it is possible to use the SPI-configurable current limit to selectively deliver higher currents for short durations without overheating the driver.

How do I connect my stepper motor to the AMIS-30543 stepper motor driver carrier?

The answer to this question depends on the type of stepper motor you have. When working with stepper motors, you will typically encounter two types: unipolar stepper motors and bipolar stepper motors. Unipolar motors have two windings per phase, allowing the magnetic field to be reversed without having to reverse the direction of current in a coil, which makes unipolar motors easier to control than bipolar stepper motors. The drawback is that only half of the phase is carrying current at any given time, which decreases the torque you can get out of the stepper motor. However, if you have the appropriate control circuitry, you can increase the stepper motor torque by using the unipolar stepper motor as a bipolar stepper motor (note: this is only possible with 6- or 8-lead unipolar stepper motors, not with 5-lead unipolar stepper motors). Unipolar stepper motors typically have five, six, or eight leads.

Bipolar steppers have a single coil per phase and require more complicated control circuitry (typically an H-bridge for each phase). The AMIS-30543 has the circuitry necessary to control a bipolar stepper motor. Bipolar stepper motors typically have four leads, two for each coil.

Two-phase bipolar stepper motor with four leads.

The above diagram shows a standard bipolar stepper motor. To control this with the AMIS-30543, connect stepper lead A to board output MOTXP, stepper lead C to board output MOTXN, stepper lead B to board output MOTYP, and stepper lead D to board output MOTYN. See the AMIS-30543 datasheet for more information.

If you have a six-lead unipolar stepper motor as shown in the diagram below:

Two-phase unipolar stepper motor with six leads.

you can connect it to the AMIS-30543 as a bipolar stepper motor by making the bipolar connections described in the section above and leaving stepper leads A’ and B’ disconnected. These leads are centre taps to the two coils and are not used for bipolar operation.

If you have an eight-lead unipolar stepper motor as shown in the diagram below:

Two-phase unipolar stepper motor with eight leads.

you have several connection options. An eight-lead unipolar stepper motor has two coils per phase, and it gives you access to all of the coil leads (in a six-lead unipolar motor, lead A’ is internally connected to C’ and lead B’ is internally connected to D’). When operating this as a bipolar stepper, you have the option of using the two coils for each phase in parallel or in series. When using them in parallel, you decrease coil inductance, which can lead to increased performance if you have the ability to deliver more current. However, since the AMIS-30543 actively limits the output current per phase, you will only get half the phase current flowing through each of the two parallel coils. When using them in series, it’s like having a single coil per phase (like in four-lead bipolar steppers or six-lead unipolar steppers used as bipolar steppers). We recommend you use a series connection.

To connect the phase coils in parallel, connect stepper leads A and C’ to board output MOTXP, stepper leads A’ and C to board output MOTXN, stepper leads B and D’ to board output MOTYP, and stepper leads B’ and D to board output MOTYN.

To connect the phase coils in series, connect stepper lead A’ to C’ and stepper lead B’ to D’. Stepper leads A, C, B, and D should be connected to the stepper motor driver as normal for a bipolar stepper motor (see the bipolar stepper connections above).
