This light ball castor uses a 1″ diameter plastic ball. The height of the assembled kit ranges from 1.1″ to 1.4″, depending on the combination of included spacers used.
In stock in Australia
Shipping from $9.90
+63 more from our supplier in 7-10 days
Our Code: MEC-30033
Supplier Link: [Pololu MPN:956]

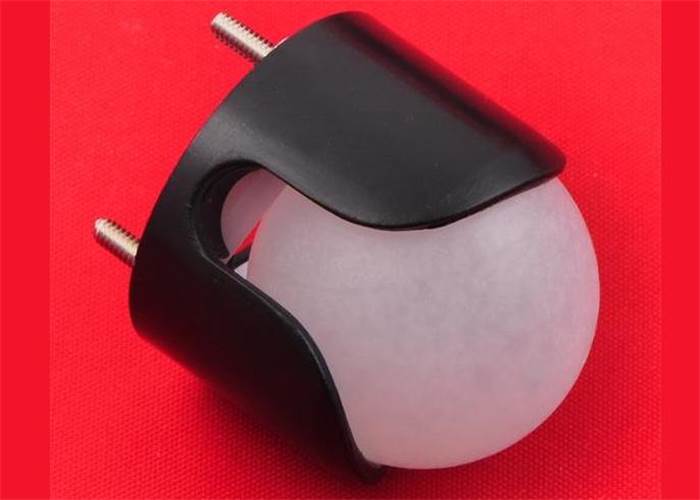

This light ball caster uses a 1″ diameter plastic ball. The height of the assembled kit ranges from 1.1″ to 1.4″, depending on the combination of included spacers used. Included dowel pins can be used to reduce the friction between the ball and the ABS housing, but they are not necessary for operation.
Note: We have released an improved ball castor with 1″ plastic ball that we recommend over this older version for applications that are not somehow specifically tied to this item #956 design. The new version is available with better plastic rollers or with ball bearings and it holds the ball more securely.

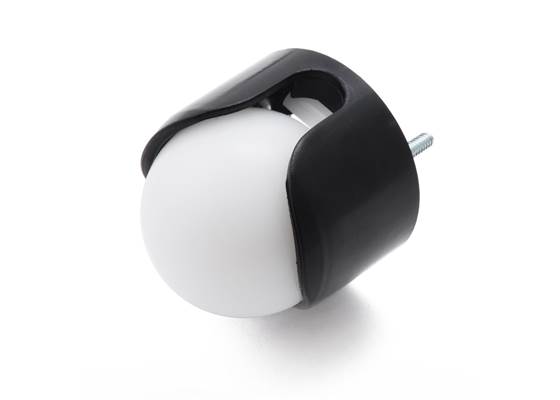

Pololu 1" ball caster (old version) with included hardware.

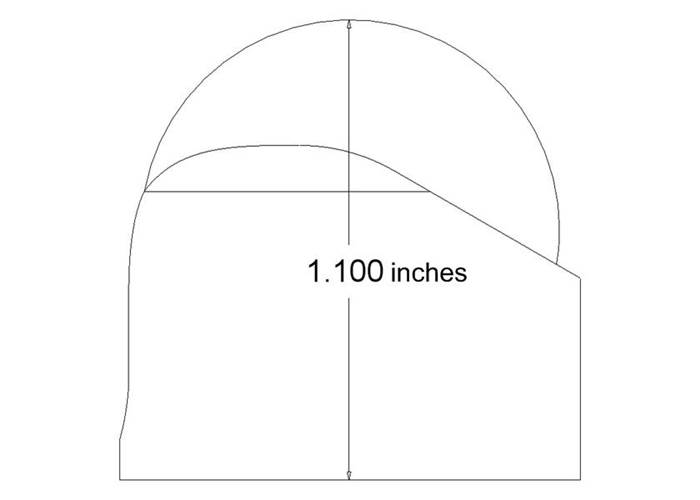

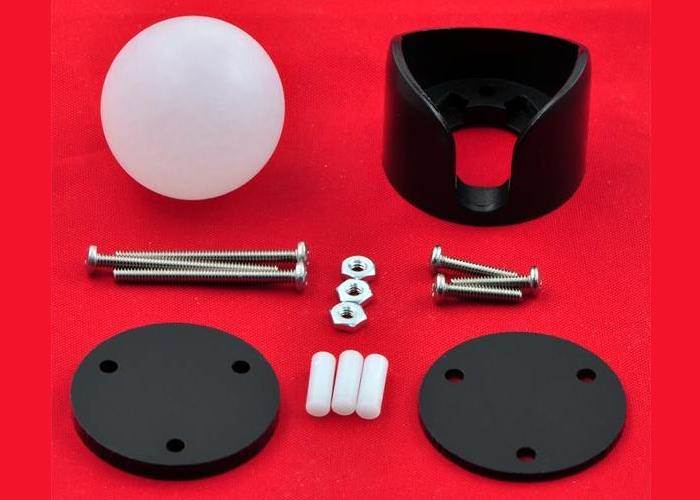

This ball castor kit includes a black ABS housing, a 1″ diameter plastic ball, three dowel pin rollers, two spacers (1/16″ and 1/8″ thick), and mounting hardware. The total height of the ball castor, 1.1″, can be increased to about 1.3″ using the included spacers. The mounting hardware consists three 7/16″ #2 screws and three 1″ #2 screws (and three nuts) so you can pick the most appropriate length for your particular application. You can also use your own #2 or M2 screws if your application requires some other length.
Note that our ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will generally keep it from rolling well.
|
|
 |
Pololu ball casters with plastic and metal balls. Ball diameter from left to right: 1″, 3/4″, 1/2″, and 3/8″. |
|---|
Pololu ball castor ball diameter |
height with no spacers |
distance between screw holes |
weight with no spacers or screws |
| 0.40″ | 0.53″ | 0.03 oz | |
| 0.40″ | 0.53″ | 0.14 oz | |
| 0.53″ | 0.58″ | 0.07 oz | |
| 0.53″ | 0.58″ | 0.32 oz | |
| 0.88″ | 0.24″ | 0.25 oz | |
| 0.82″ | 0.61″ | 1.05 oz | |
| 1.10″ | 0.48″ | 0.65 oz | |
| 1.10″ | 0.48″ | 0.58 oz | |
| 1.10″ | 0.70″ | 0.36 oz |
