0.100" (2.54 mm) Breakaway Male Header: 1×40-Pin, Straight, Black

AUD $1.05

Order As Required

Back orders: Ship 468 units in 7 days

Our Code: SKU-002443

Supplier: [Pololu MPN:965]

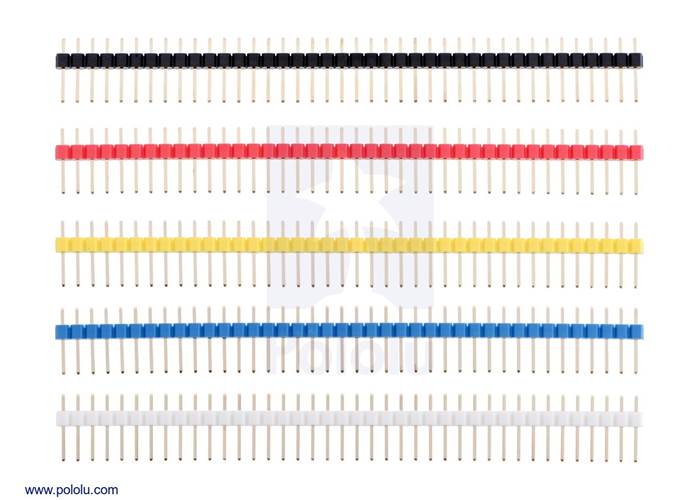

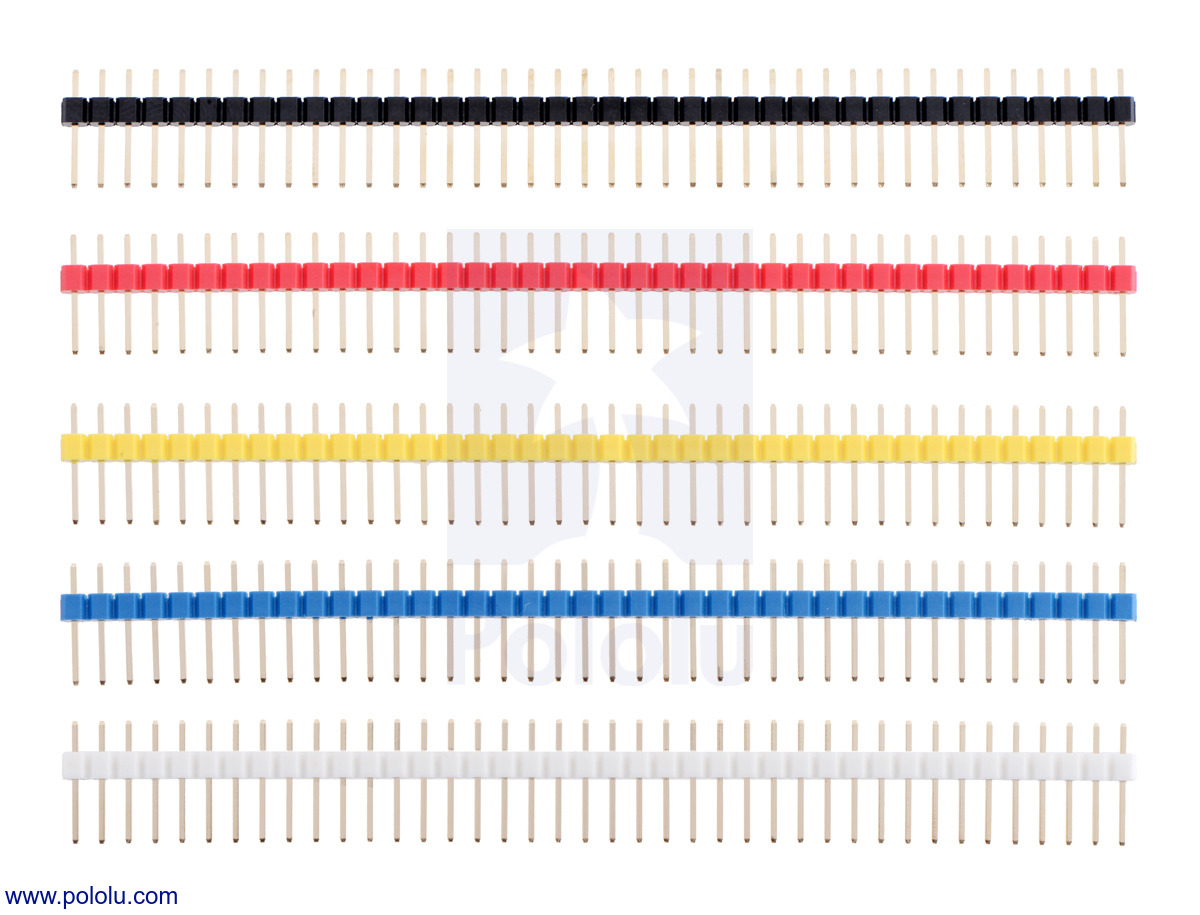

This connector is a single-row, 40-pin, straight male header strip that can be cut or broken into smaller strips. This strip has a standard-colour ( black ) plastic base; other colors are available for those looking to add some character (or colour-coded connections) to their projects.


Description

These 0.1″/2.54mm-pitch header strips are commonly used as low-cost connectors. The standard spacing allows use with solderless breadboards, perforated prototyping PCBs, female headers, and our premium and pre-crimped jumper wires. The single-row header strips can easily be snapped into smaller strips to fit your application. The double- and triple-row strips can also be broken into smaller strips, but it takes a little more effort, and it is sometimes easier to use wire/diagonal cutters.

We carry the following 0.1″-pitch breakaway male headers:

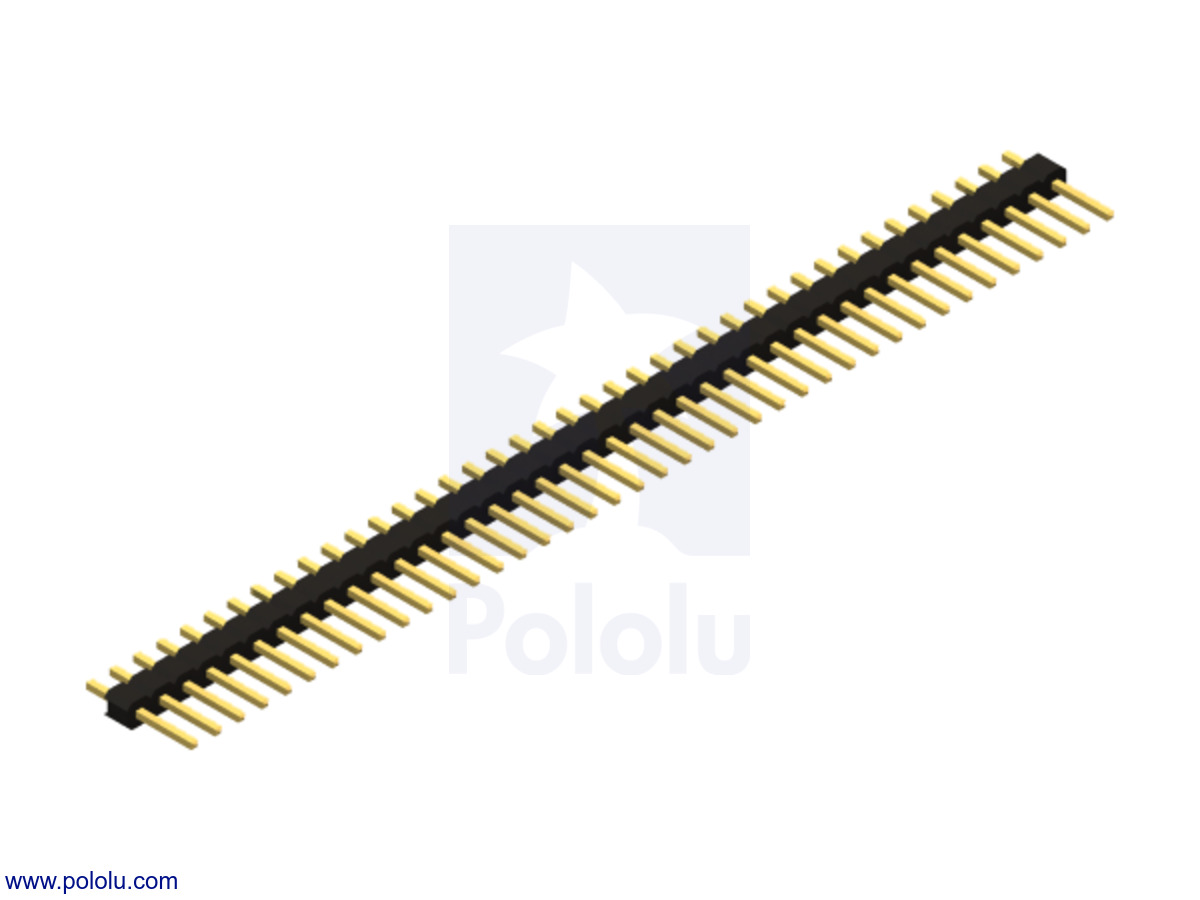

1x40-Pin, Straight

1x40-Pin, Straight

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight

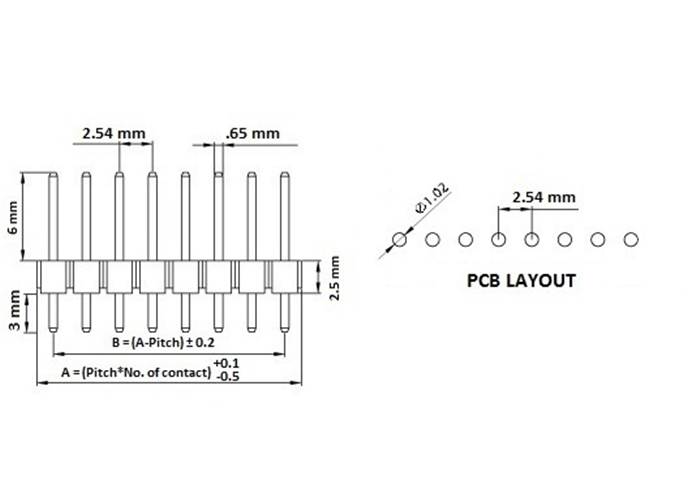

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight

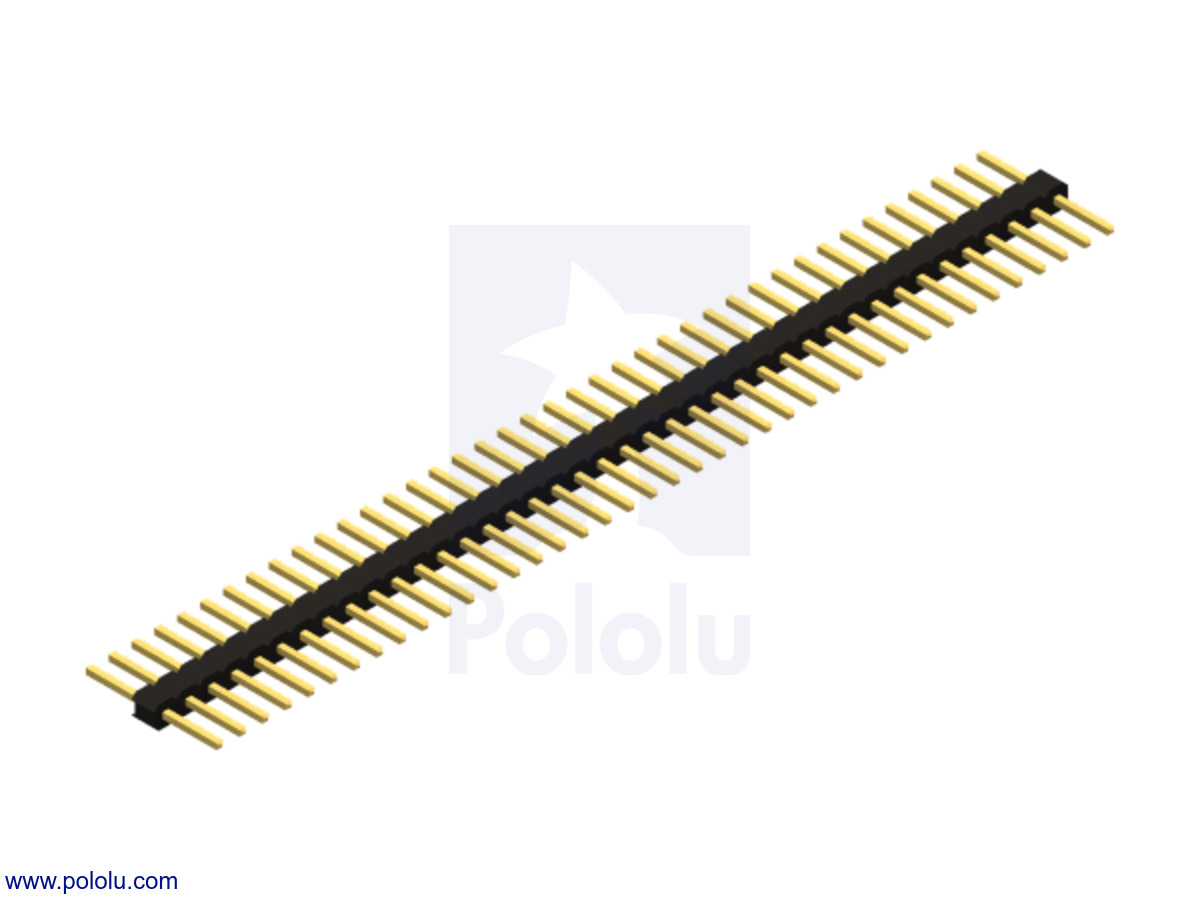

  • 1×40-pin, straight, double-sided (Both sides of the strip are long, allowing for unique connections that cannot be made with standard male header strips. For example, this header can be used as a female-to-male adaptor, and both sides are compatible with wire wrap.)

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided

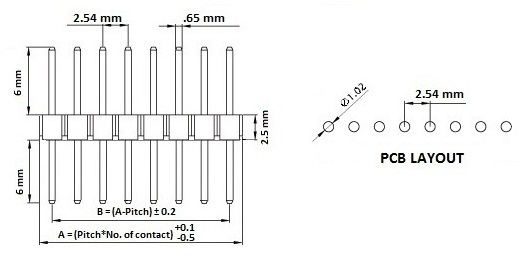

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided

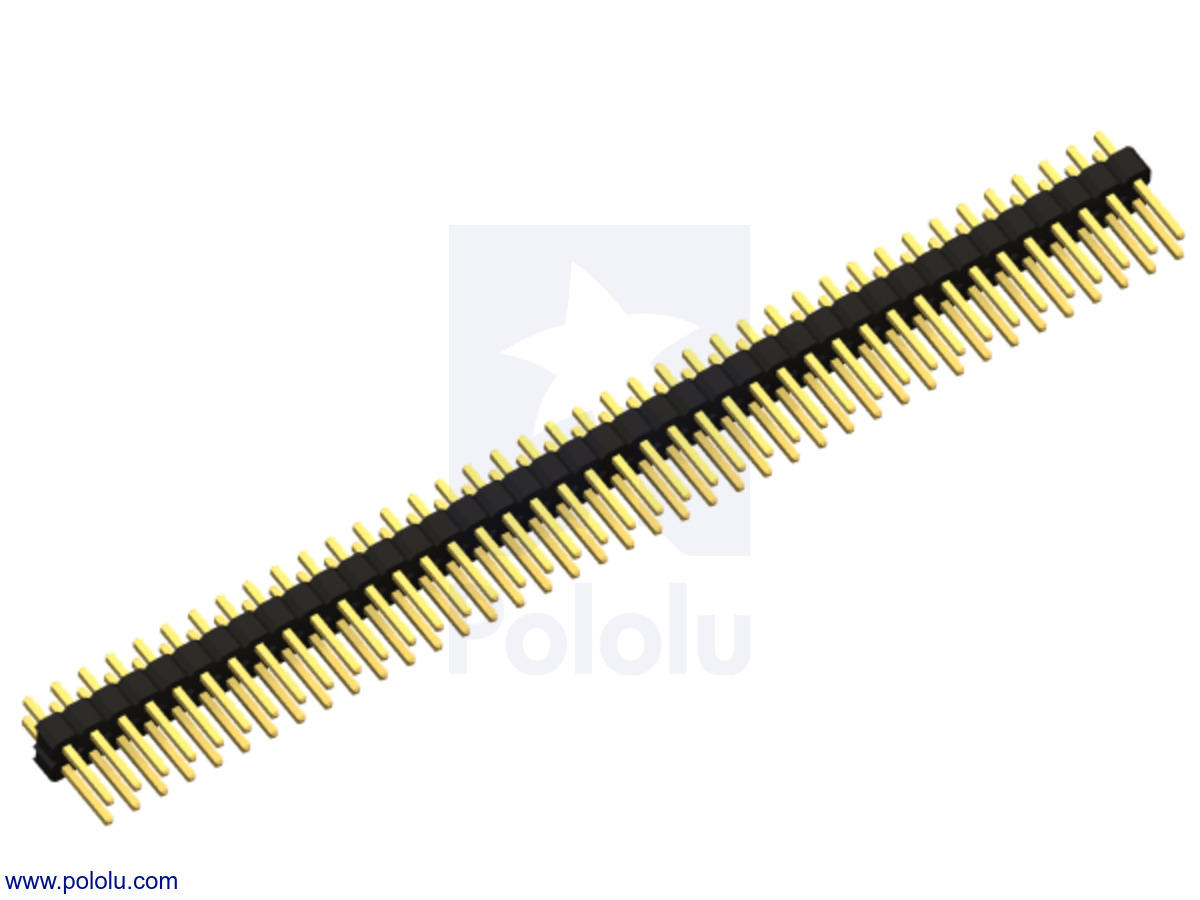

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight

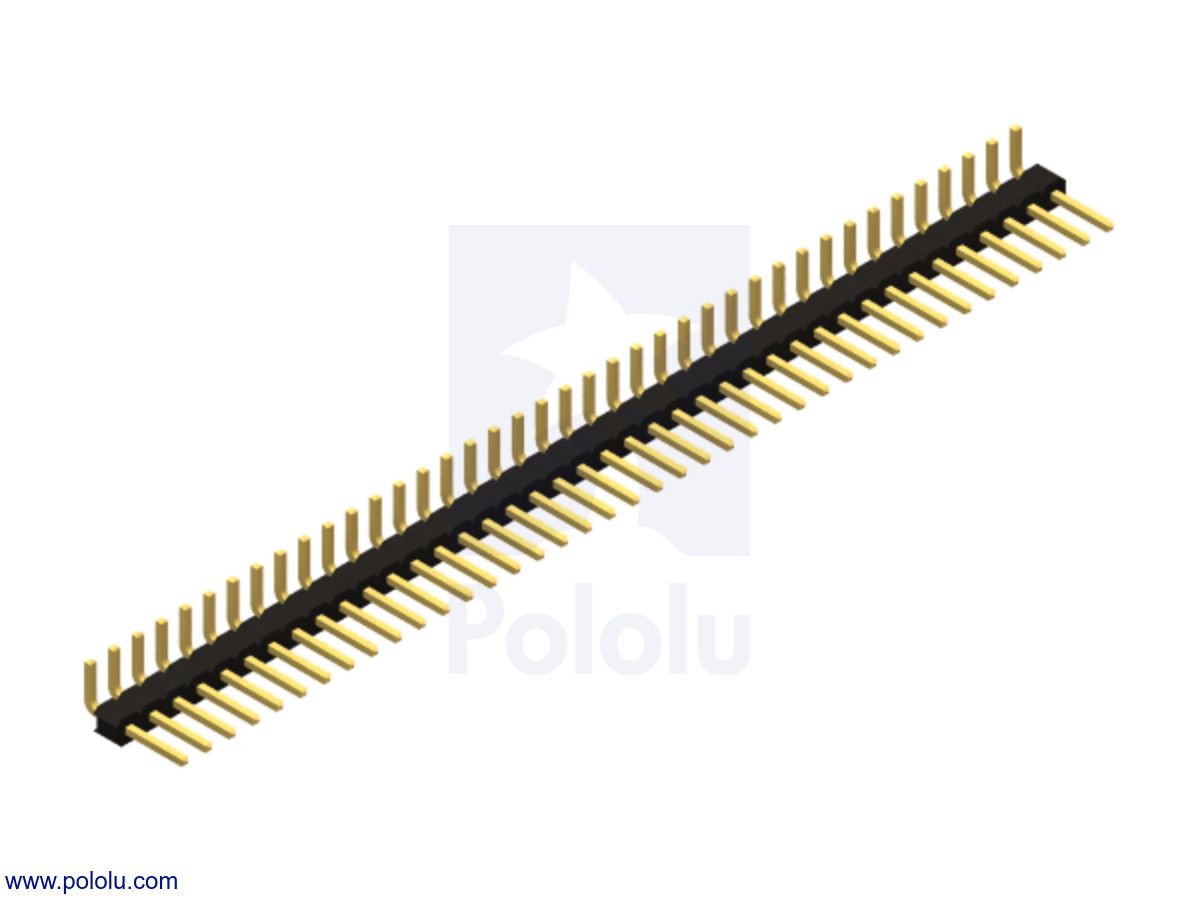

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle

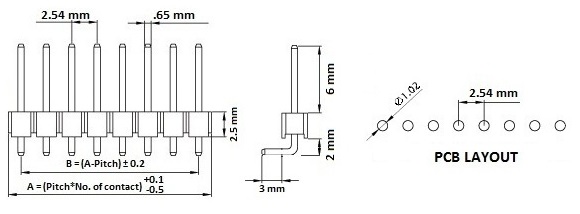

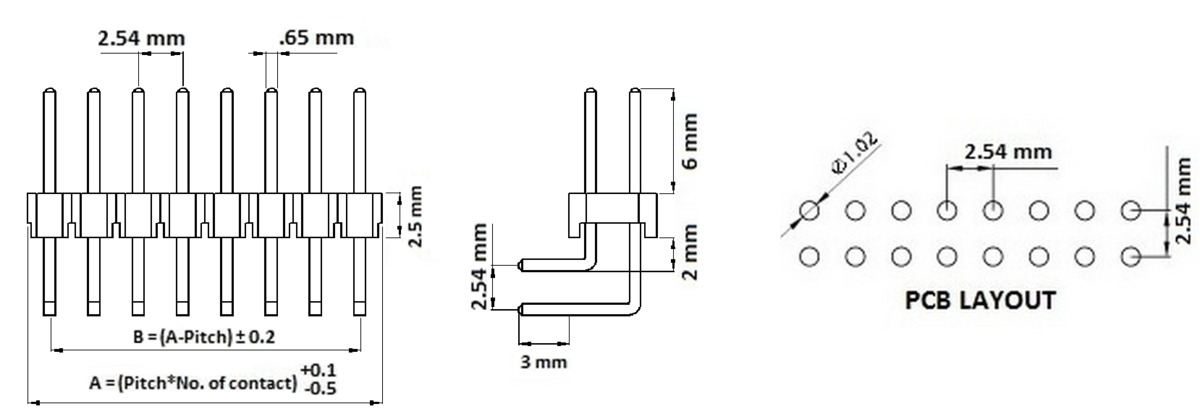

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle

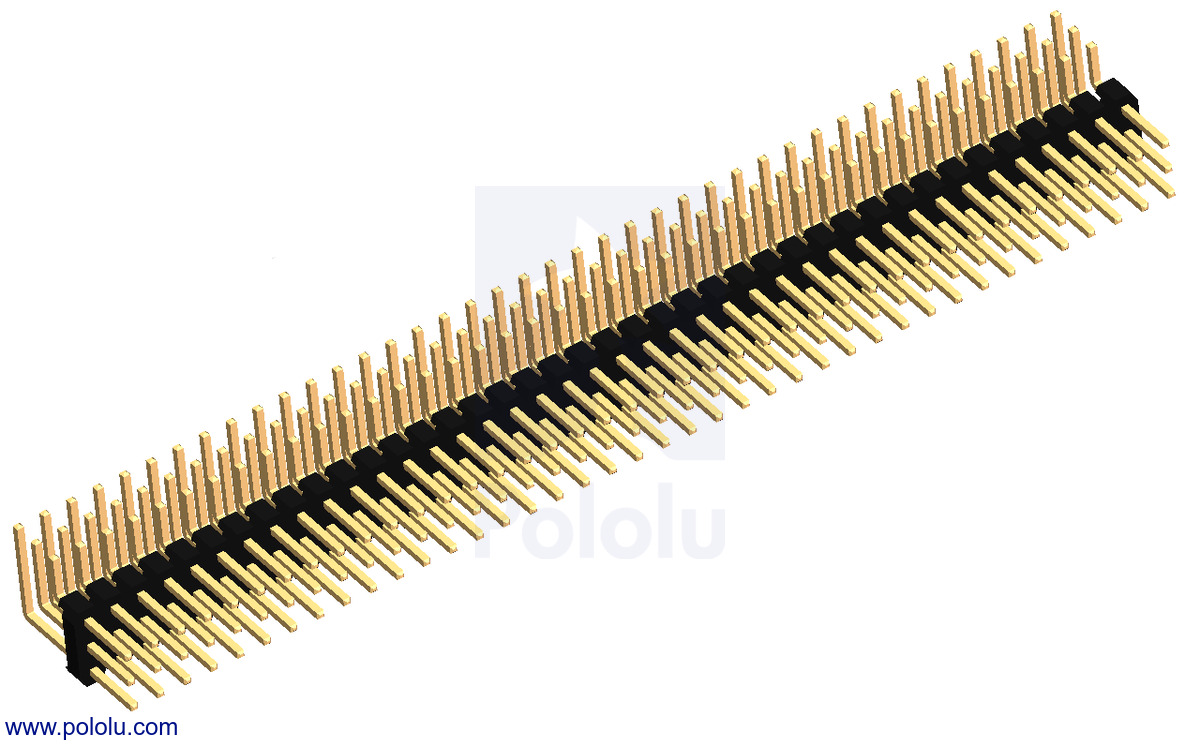

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle

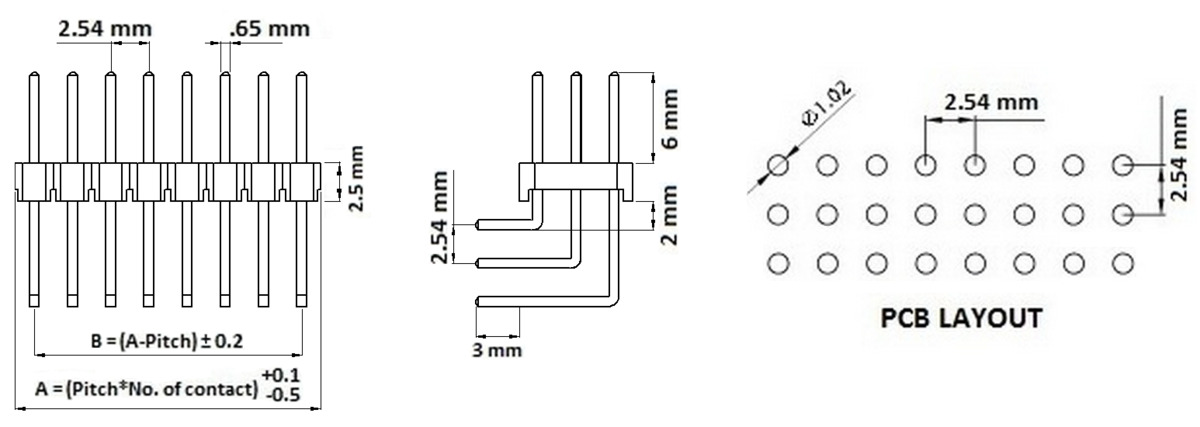

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle



Specifications

Dimensions

Pins: 1 × 40
Spacing: 0.100 in

General specifications

Gender: male
Pin type: straight
Current rating: 3 A
Colour: black
Material: PBT UL94V-0 plastic base, brass pins with gold-flash
