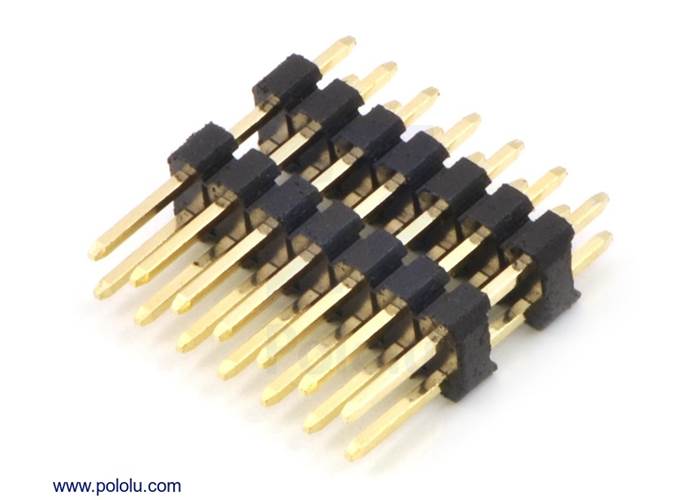

This custom connector is a double-row, 14-pin, extended (17.1 mm) male header strip. We use this header to connect the LCD on the 3pi robot to the main PCB.
Special Order
Shipping from $7.90
+58 more from our supplier in 7-10 days
Our Code: SKU-002495
Supplier Link: [Pololu MPN:1113]

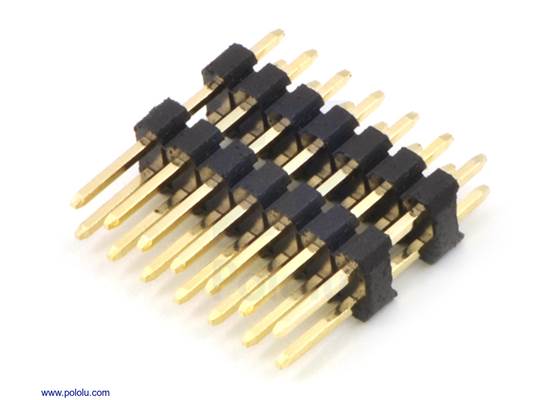

This connector is a double-row, 14-pin, extended male header strip. The extra-long pins have a length of 17.1 mm, which is 5.45 mm longer than typical 0.1" straight male header pins. The standard 0.1" spacing allows use with perforated prototyping PCBs and female headers.
This connector was specifically designed for connecting the LCD on the 3pi robot to the main PCB so that it can extend out over the rear battery holder. .
 |
| Dimension diagram of 0.100" (2.54 mm) extended male header: 2×7-pin, 17.1 mm. |
|---|
