0.100" (2.54 mm) Female Header: 2x7-Pin, Straight


Description

Overview

These 0.1" straight female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. The standard spacing is the same as on most solderless breadboards and matches 0.1" male header strips. Our female headers are available in a variety of commonly used pin counts:

Select options:

We also carry right-angle versions of some of these headers:

Select options:

Dimensions

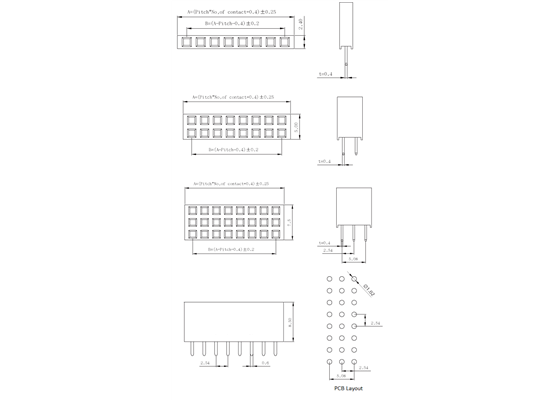

Dimensions for 0.1″ female headers in millimeters.


Specifications

Dimensions

Pins: 2 x 7
Spacing: 0.100 in

General specifications

Gender: female
Pin type: straight
Current rating: 3 A
