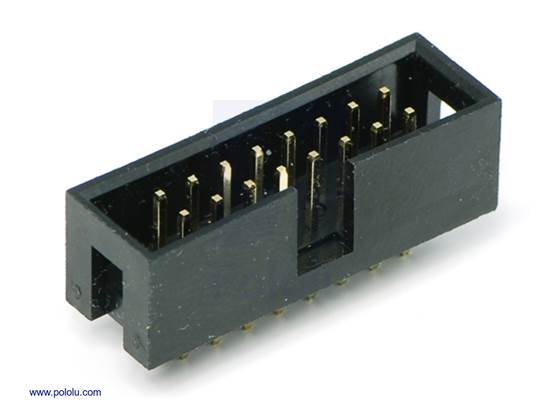

Shrouded Box Header: 2×8-Pin, 0.100" (2.54 mm) Male

These 16-pin (2×8) shrouded male headers are great general-purpose connectors for applications such as parallel LCDs with backlights.

AUD $1.75

Order As Required

Back orders: Ship 17 units in 7 days

Our Code: SKU-002417

Supplier: [Pololu MPN:898]


Description

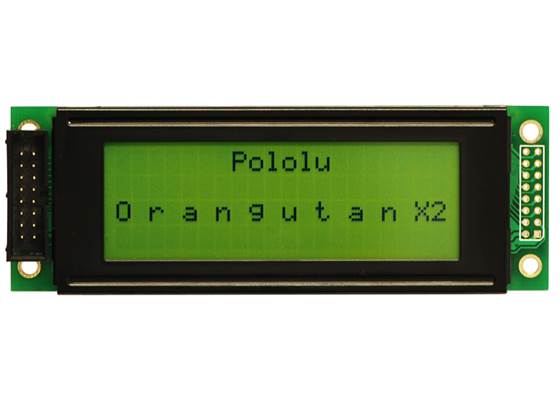

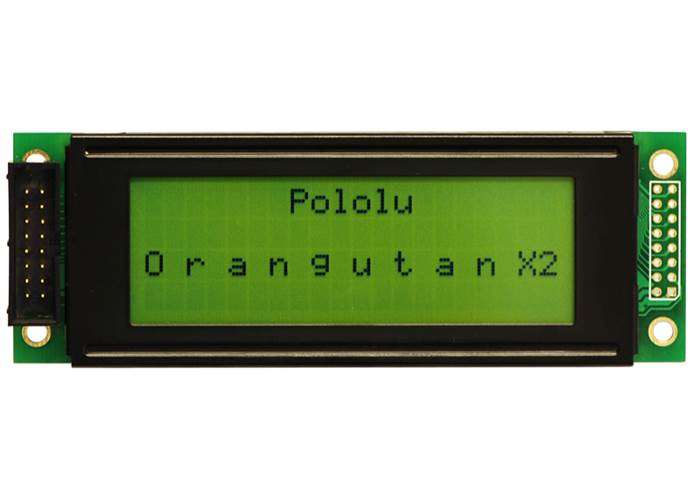

We use these units to connect our 20×4 character LCD to our Orangutan X2 robot controllers.

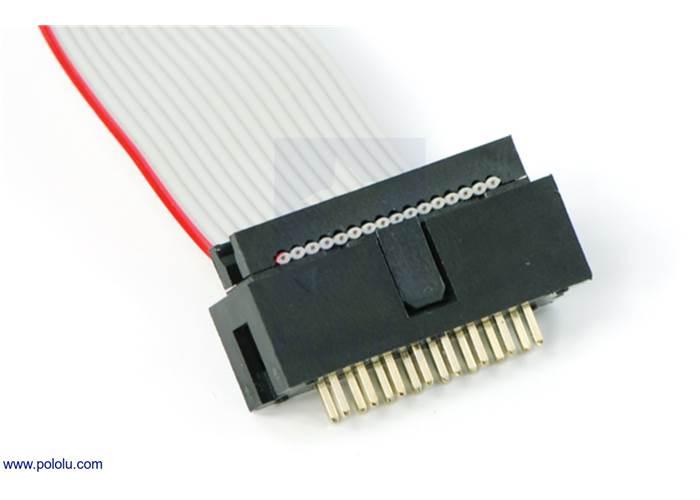

Shrouded 2x8-pin box header with a ribbon cable and IDC connector plugged into it

Dimensions

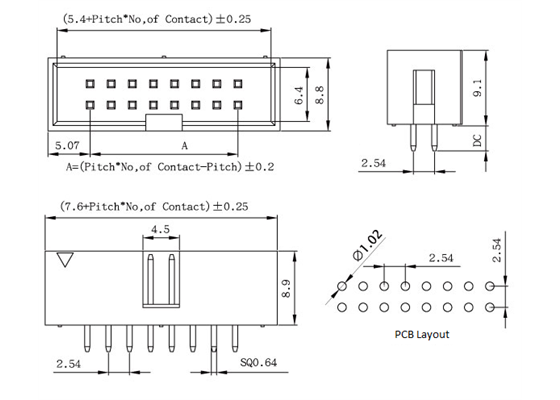

Dimensions for the shrouded male header in millimeters.


Specifications

Dimensions

Pins: 2 x 8
Spacing: 0.100 in

General specifications

Gender: male
Pin type: straight
Current rating: 3 A
