This connector is a double-row, 40-pin, right-angle male header strip that can be cut or broken into smaller strips.
Special Order
Shipping from $7.90
+55 more from our supplier in 7-10 days
Our Code: SKU-003345
Supplier Link: [Pololu MPN:2668]
These 0.1″/2.54mm-pitch header strips are commonly used as low-cost connectors. The standard spacing allows use with solderless breadboards, perforated prototyping PCBs, female headers, and our premium and pre-crimped jumper wires. The single-row header strips can easily be snapped into smaller strips to fit your application. The double- and triple-row strips can also be broken into smaller strips, but it takes a little more effort, and it is sometimes easier to use wire/diagonal cutters.

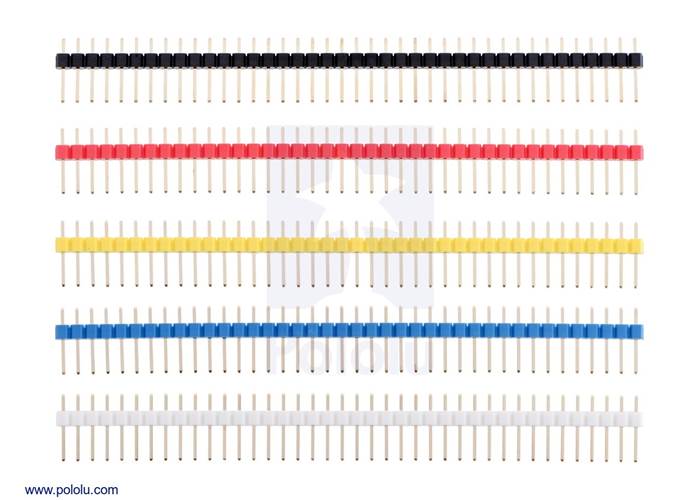

1x40-Pin, Straight
Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight |
Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight |
Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided |
Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided |
Pololu - 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight |

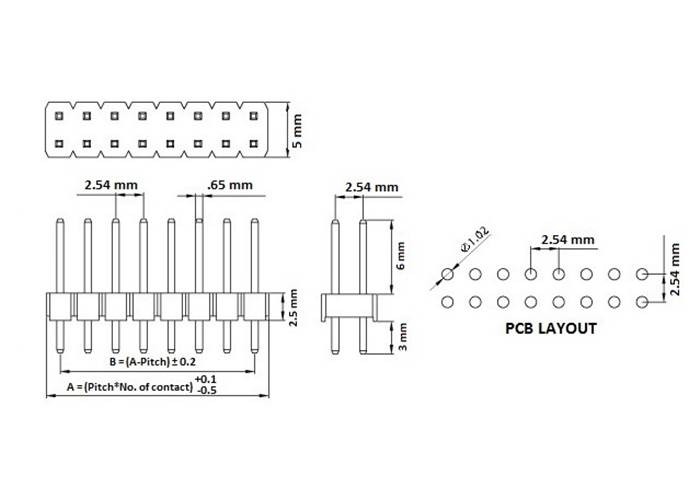

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight |
Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle |
Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle |

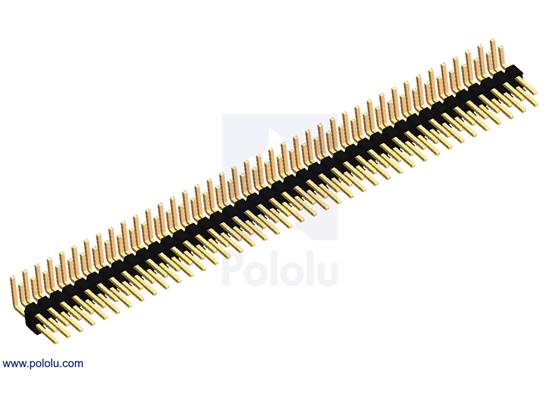

0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle |
Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle |
Pololu - 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle |
Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle |
| Pins: | 2 × 40 |
|---|---|
| Spacing: | 0.100 in |
| Gender: | male |
|---|---|
| Pin type: | right angle |
| Current rating: | 3 A |
| Colour: | black |
| Material: | PBT UL94V-0 plastic base, brass pins with gold-flash |
