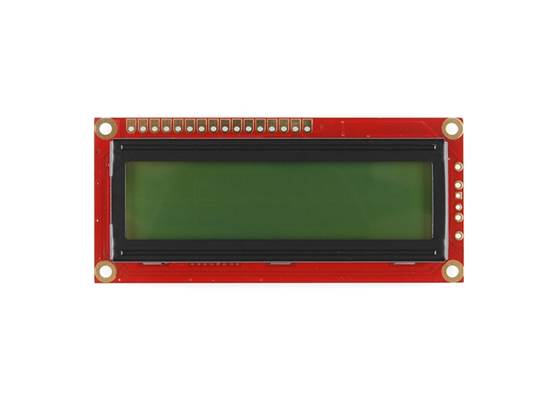

This is a 16 character by 2 line display that runs at 3.3V. Utilizes the common ST7066/HD44780 parallel interface ( datasheet ). Interface code is widely available for many different controllers and systems. You will need ~11 general I/O pins to interface to this LCD screen.
Special Order
Shipping from $2.90
+13 more from our supplier in 7-10 days
Our Code: SKU-000307
Supplier Link: [SparkFun MPN:9053]
This is a 16 character by 2 line display that runs at 3.3V. Utilizes the common ST7066/HD44780 parallel interface (datasheet). Interface code is widely available for many different controllers and systems. You will need ~11 general I/O pins to interface to this LCD screen. Includes yellow LED backlight.
Dimensions: 0.34 x 1.4 x 3.2" (8.6 x 36 x 80mm)
