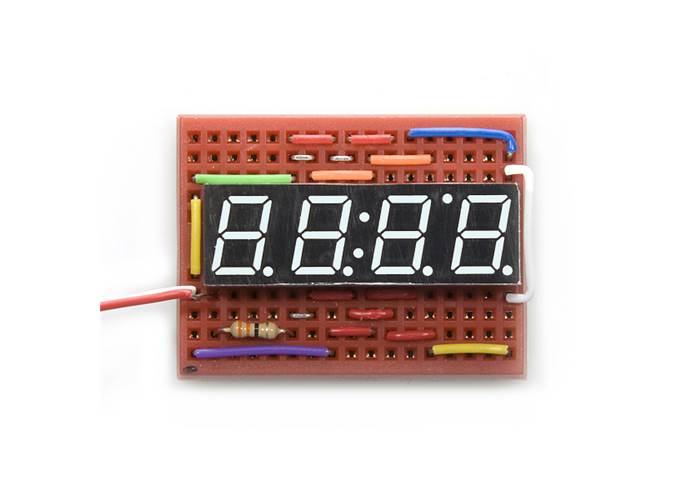

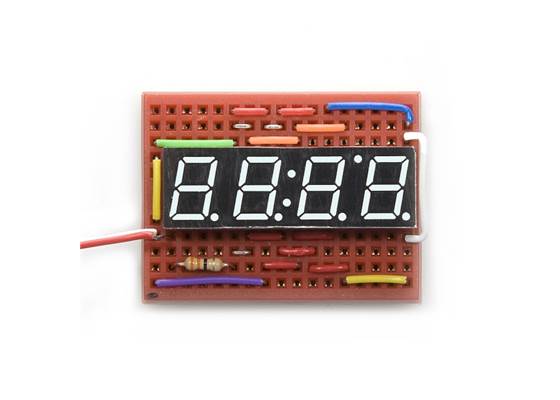

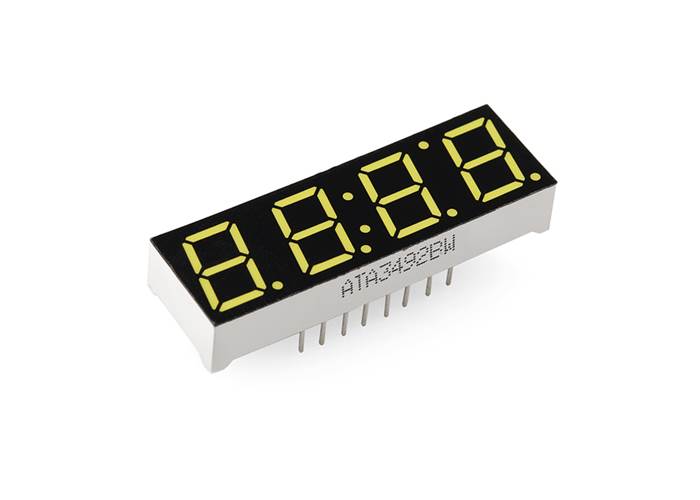

7-Segment Display - 4-Digit (White)

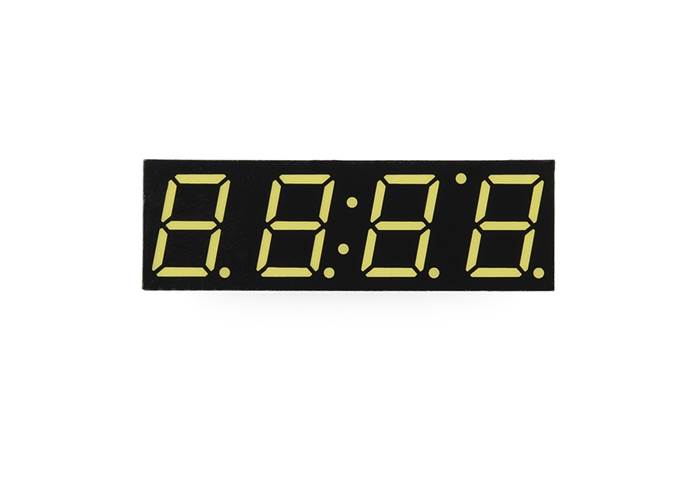

This is a basic, 4-digit 7-segment display - white in colour. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points.

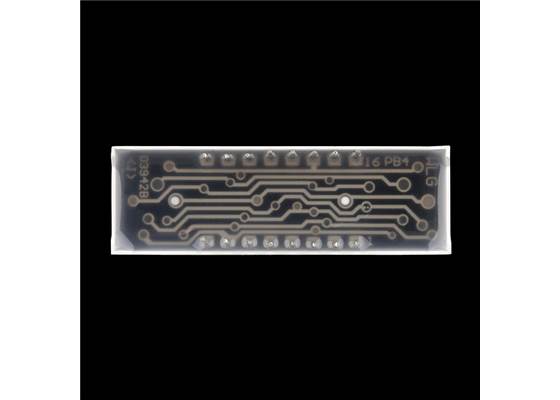

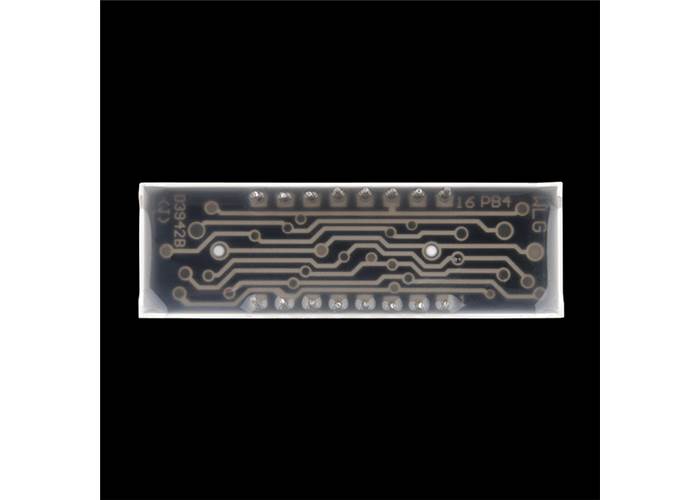

The LEDs have a forward voltage of 1.9VDC and a max forward current of 20mA. The hardware interface is sixteen (two rows of eight) through-hole pins

The datasheet for this device says “blue” but that’s because the white display is simply a blue display with a coloured film over it.

We carry this same display in yellow, green, red, and blue.

• Overall Display: 40.18 x 12.8 mm (1.58 x 0.50")
• Digit Height: 10mm (0.39")

Documents:

• Datasheet
• Display Example Code
