0.100" (2.54 mm) Breakaway Male Header: 1×40-Pin, Straight, Double-Sided

AUD $1.35

Order As Required

Back orders: Ship 426 units in 7 days

Our Code: SKU-002478

Supplier: [Pololu MPN:1065]

This connector is a single-row, 40-pin, straight male header strip that can be cut or broken into smaller strips. Both sides of the strip are long, allowing for unique connections that cannot be made with standard male header strips.


Description

These 0.1″/2.54mm-pitch header strips are commonly used as low-cost connectors. The standard spacing allows use with solderless breadboards, perforated prototyping PCBs, female headers, and our premium and pre-crimped jumper wires. The single-row header strips can easily be snapped into smaller strips to fit your application. The double- and triple-row strips can also be broken into smaller strips, but it takes a little more effort, and it is sometimes easier to use wire/diagonal cutters.

We carry the following 0.1″-pitch breakaway male headers:

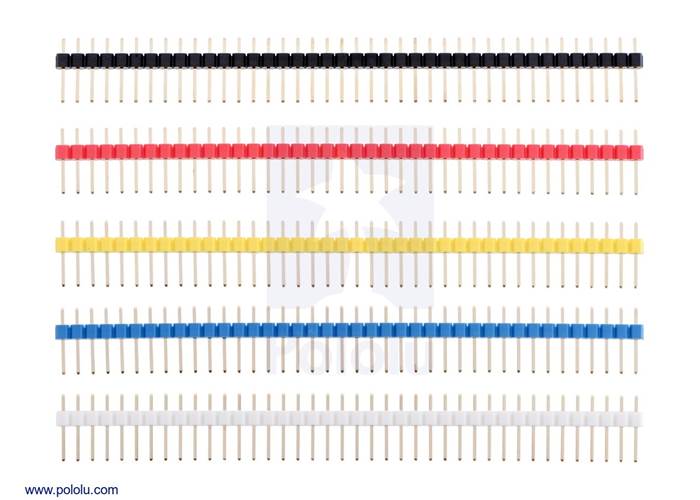

1x40-Pin, Straight

1x40-Pin, Straight

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight

  • 1×40-pin, straight, double-sided (Both sides of the strip are long, allowing for unique connections that cannot be made with standard male header strips. For example, this header can be used as a female-to-male adaptor, and both sides are compatible with wire wrap.)

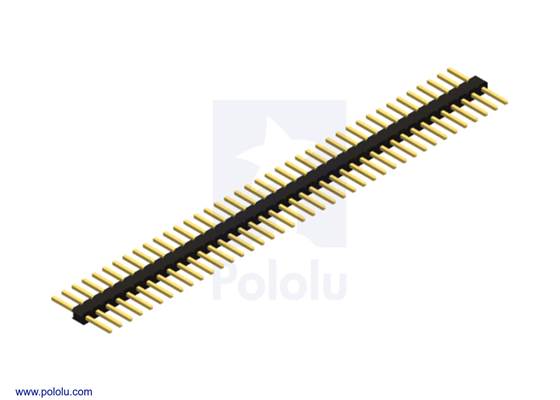

0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided

0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided

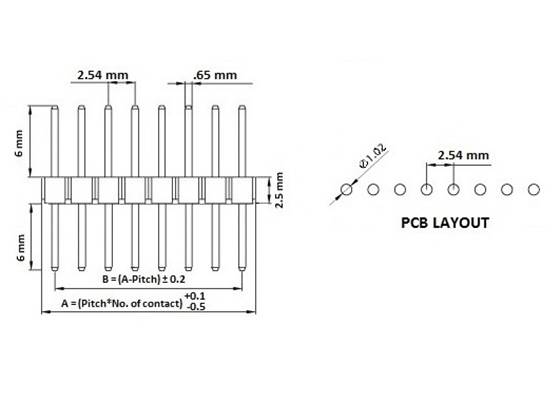

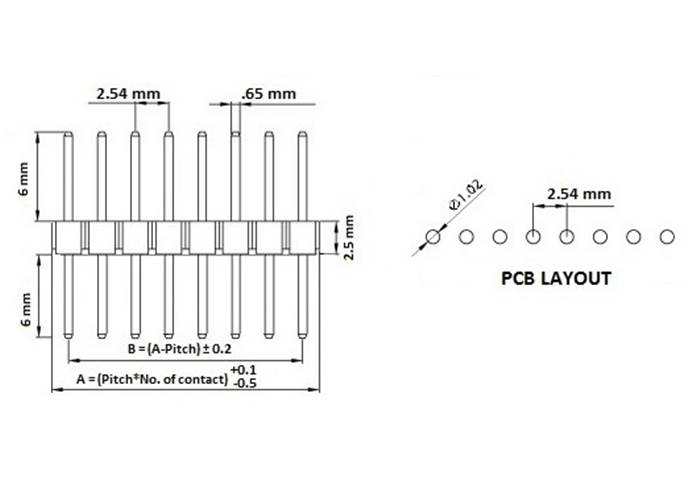

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Straight, Double-Sided

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Straight

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 1x40-Pin, Right Angle

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 2x40-Pin, Right Angle

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle

Pololu - 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle

Pololu - Dimension diagram of 0.100" (2.54 mm) Breakaway Male Header: 3x40-Pin, Right Angle



Specifications

Dimensions

Pins: 1 × 40
Spacing: 0.100 in

General specifications

Gender: male
Pin type: straight, double-sided
Current rating: 3 A
Colour: black
Material: PBT UL94V-0 plastic base, brass pins with gold-flash
