Stackable 0.100″ Female Header: 2x20-pin, Straight

This stackable 40-pin female header features two rows of 20 pins spaced with a 0.1″ (2.54 mm) pitch. The extended pins allow multiple units to be stacked as popularized on Arduino shields. The 2×20 size is notably used on the Raspberry Pi Models A+ and B+ as well as the Raspberry Pi 2 Model B.

AUD$ 4.55

Special Order

Shipping from $7.90

+119 more from our supplier in 7-10 days

Our Code: SKU-003398

Supplier Link: [Pololu MPN:2748]


Description

Overview

This stackable 40-pin female header features two rows of 20 pins spaced with a standard 0.1″ (2.54 mm) pitch; this spacing is the same as on most solderless breadboards and matches 0.1″ male header strips. The extended pins allow multiple units to be stacked as popularized on Arduino shields, enabling removable daughter boards that can access pins without blocking them. The 2×20 size is notably used on the Raspberry Pi Model A+ and Model B+ as well as the Raspberry Pi 2 Model B and Raspberry Pi 3 Model B, and its height matches our 11 mm M2.5 standoffs for Raspberry Pi

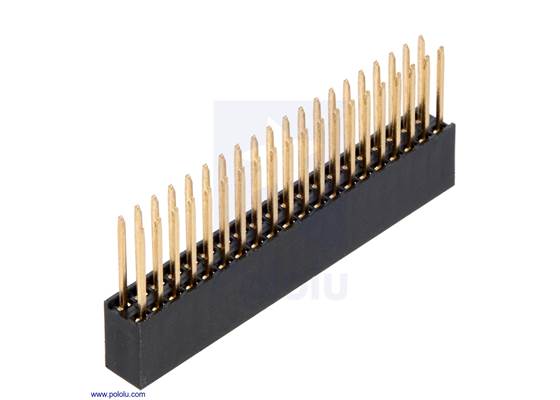

Stackable 0.100″ Female Header: 2x20-pin, Straight (1)

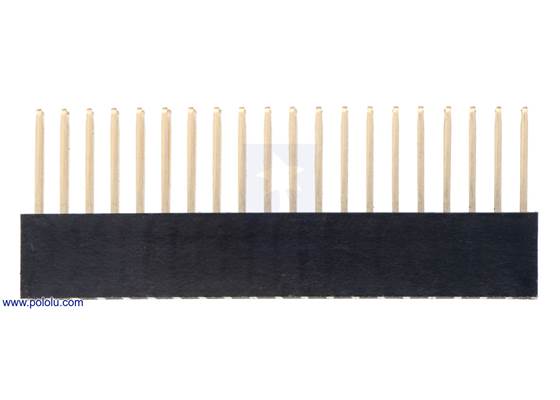

Stackable 0.100″ Female Header: 2x20-pin, Straight (2) (2)

We also carry an extra-tall 2×20 stackable female header that includes an extra 0.3″ spacer, which gives it the necessary height to clear all of the components on the Raspberry Pi Model B+ or the Raspberry Pi 2 Model B. (And if you just want a standard, non-stackable 2×20 female header, we have that, too.)

Dimensions

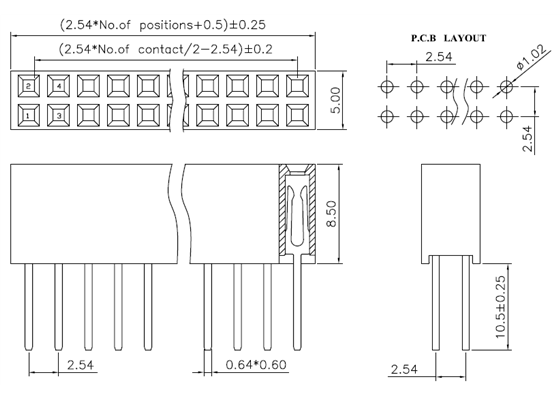

Dimensions (in mm) of straight stackable 0.100″ female headers.

The total width is 51.3 mm.


Specifications

Dimensions

Pins: 2 x 20
Spacing: 0.100 in
Weight: 4.8 g

General specifications

Gender: male-female
Pin type: straight, stackable
Current rating: 3 A
