Aluminum Standoff for Raspberry Pi: 11mm Length, M2.5 Thread, M-F (4-Pack)

AUD $2.00

In Stock: Ships Today

Back orders: Ship 164 units in 7 days

Our Code: SKU-002921

Supplier: [Pololu MPN:1952]

These hexagonal male-female aluminium standoffs are intended specifically for use with the Raspberry Pi .


Description

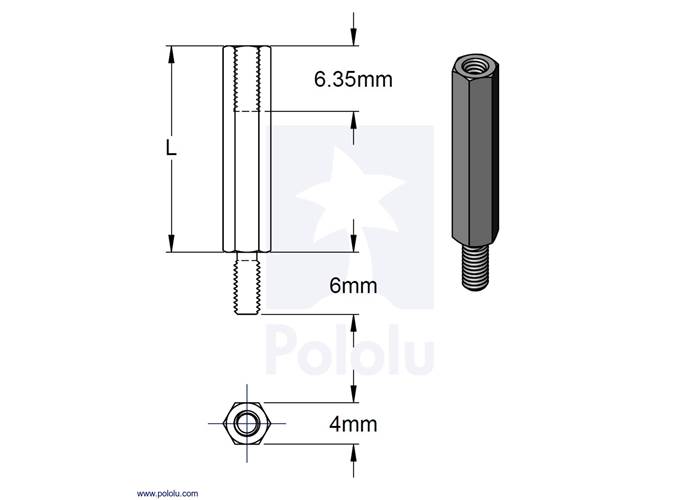

Dimensions of M2.5 male-female aluminum standoffs

Dimensions of M2.5 male-female aluminum standoffs

Overview

These aluminium hexagonal standoffs are just the right size for mounting expansion PCBs or HATs with standard-size female headers on a Raspberry Pi. The body of each male-female standoff is 11 mm long (dimension L in the mechanical drawing on the right) by 4 mm wide. The male threads extend another 6 mm past the standoff body, and the female threads extend at least 6.35 mm into the body. You can easily screw multiple units together to make longer standoffs. The threads are M2.5 on both ends, since this matches the size of the Raspberry Pi mounting holes. We carry M2.5 nuts and 6 mm M2.5 screws separately.

Using 11 mm aluminum standoffs to mount an A-Star 32U4 Robot Controller on a Raspberry Pi 2 Model B

Using 11 mm aluminum standoffs to mount an A-Star 32U4 Robot Controller on a Raspberry Pi 2 Model B

Other sizes

We also carry 18.6mm-long standoffs that match the height of our extra-tall 2×20 female headers and can be used to mount expansion boards so that they clear all of the components on the Raspberry Pi Model A+ and Model B+ as well as the Raspberry Pi 2 Model B and Raspberry Pi 3 Model B.

Mounting expansion boards to Raspberry Pis with 11 mm aluminum standoffs (left) and 18.6 mm aluminum standoffs (right)

Mounting expansion boards to Raspberry Pis with 11 mm aluminum standoffs (left) and 18.6 mm aluminum standoffs (right)

In addition to these specialised standoffs, we carry standoffs in a variety of standard imperial lengths and thread types:

Select options:

Specifications

Dimensions

Length: 11 mm

General specifications

Gender: Male-Female
Thread type: M2.5
