Pololu Mini Plastic Gearmotor Bracket Pair - Tall

AUD $5.95

In Stock: Ships Today

Back orders: Ship 567 units in 7 days

Our Code: SKU-003352

Supplier: [Pololu MPN:2681]

These tall brackets offer an easy and convenient mounting solution for our mini plastic gearmotors . The white plastic bracket securely clasps around the gearmotor, and the mounting tabs capture the nuts for easy installation.


Description

Overview

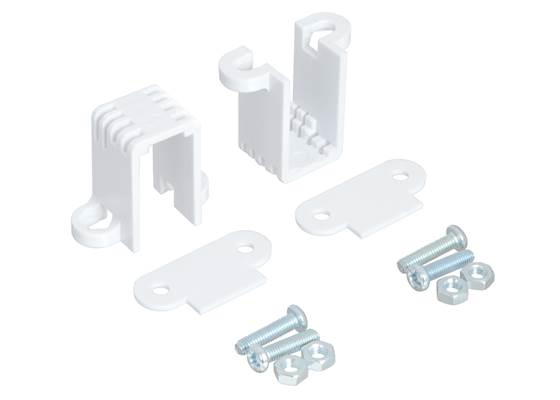

These plastic mounting brackets are specifically designed to work with our mini plastic gearmotors. Both the offset and 90-degree configurations of the mini plastic gearmotors are compatible with these brackets. The brackets are sold in pairs, and four M3×12mm screws and M3 nuts are included (two for each bracket). In some orientations, the mini plastic gearmotors have a lip that causes the bracket to be raised off of the mounting surface; for those cases, two 1.25mm-thick spacer plates (one for each bracket) are also included. You can see the spacer being used in the two pictures below.

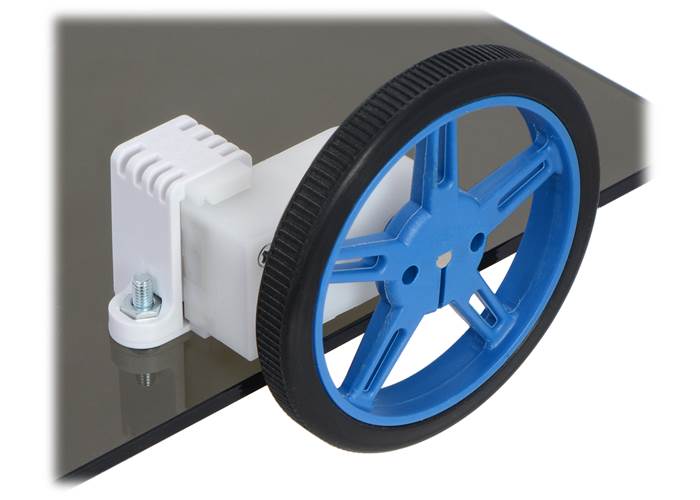

60x8mm Pololu wheel and 90° mini plastic gearmotor mounted with tall mini plastic gearmotor bracket (with spacer)

60x8mm Pololu wheel and 90° mini plastic gearmotor mounted with tall mini plastic gearmotor bracket (with spacer)

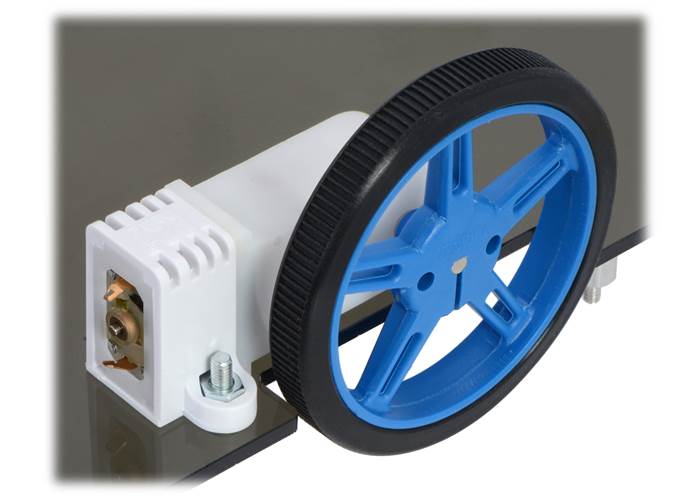

60x8mm Pololu wheel and offset mini plastic gearmotor mounted with a tall mini plastic gearmotor bracket (with spacer)

60x8mm Pololu wheel and offset mini plastic gearmotor mounted with a tall mini plastic gearmotor bracket (with spacer)

We also offer a wide version of this bracket that allows for alternate mounting options that might be more appropriate for particular applications.

Note: When using this tall version of the bracket with one of the 90° Output mini plastic gearmotors (i.e. the setup in the left picture above), only our 60mm-diameter wheels (or smaller) will fit in the space between the output shaft and the mounting tab. The mounting tab will rub or interfere with larger-diameter wheels.

Dimensions

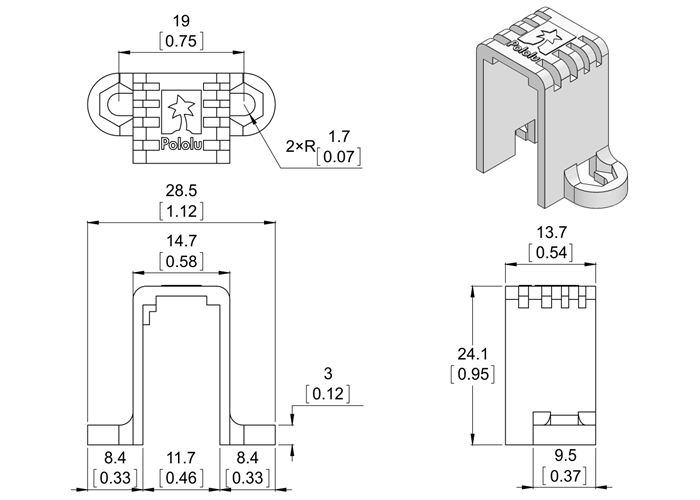

Dimension diagram of Mini Plastic Gearmotor Bracket – Tall.  Units are mm over [inches]

Dimension diagram of Mini Plastic Gearmotor Bracket – Tall. Units are mm over [inches]

This diagram is also available as a downloadable PDF (150k pdf).


Specifications

Dimensions

Weight: 1.4 g1

General specifications

Colour: white

Notes:

1
For a single bracket only (no screws, nuts, or spacers). With a single spacer, it weighs an additional 0.4 g.
