Crimping Tool: 0.1-1.0 mm² Capacity, 16-28 AWG

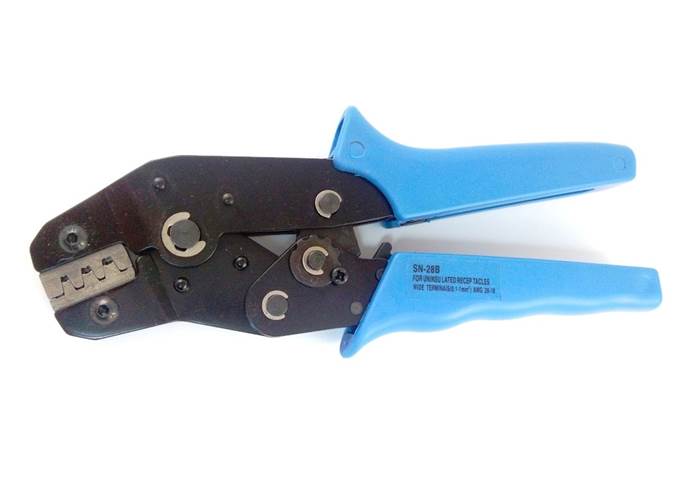

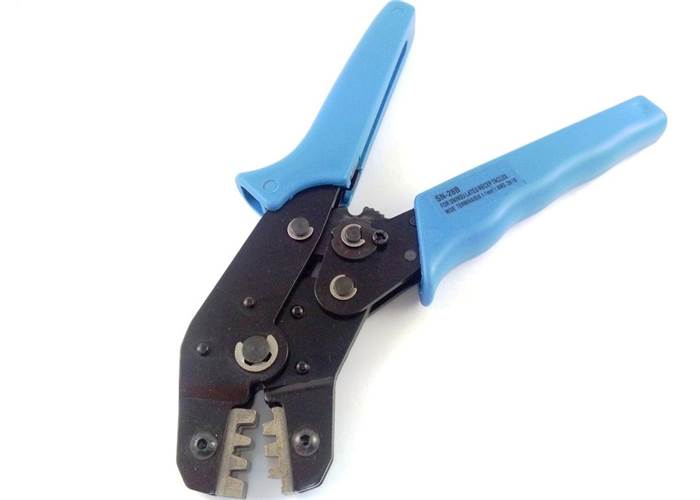

Crimping Tool for crimping our crimp pins for JST style 0.1" housings onto 16-28 AWG wires. The tool has a ratchet action for consistent results and ease of use.

58.95

Not currently available

Our Code: MEC-30136

Note: the handles may be blue or orange depending on current stock.

The table below lists the types of connectors and wire sizes this tool can be used for.

Tool

Cavity

Crimp Pins

Wire Gauge (AWG)

Crimping Tool: 0.1-1.0 mm² Capacity, 16-28 AWG

Outer

0.1" Housing Female
0.1" Housing Male
JST Female
JST Male
JR Female
JR Male
Futaba Female
Futaba Male

26-28

Middle

22-26

Inner

Tamiya Female
Tamiya Male
Mini Tamiya Female
Mini Tamiya Male

16-20

Here is a nice short video tutorial that shows how to use this crimping tool - Scottish accent warning ;)

Inspection chart by JST shows what too look for in a good and bad crimp.
