Aluminum Standoff: 1" Length, 2-56 Thread, M-F (4-Pack)

These hexagonal male-female aluminium standoffs keep parts spaced 1.0" (25 mm) apart and are great for building a multi-level robot chassis. Both ends of these 3/16" -wide standoffs have 2-56 threads. The standoffs are sold in packs of 4 .

AUD$ 2.25

Special Order

We can ship 132 more in 7-10 days

Our Code: SKU-002913

Supplier Link: [Pololu MPN:1944]

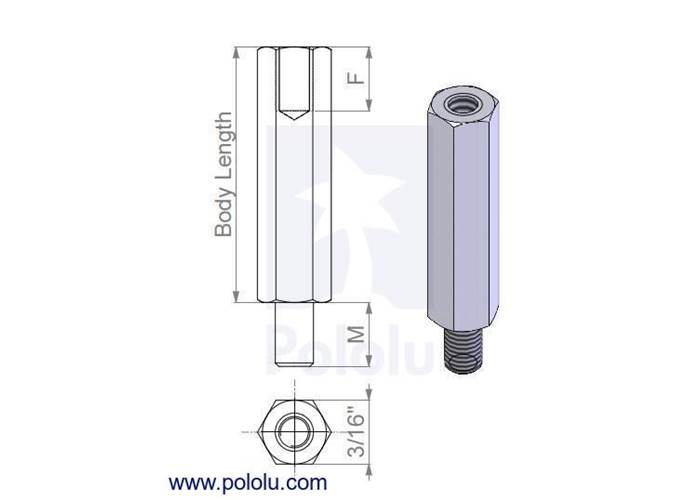

Mechanical drawing of male-female standoff


These M-F (male-female) aluminium standoffs are great for separating stacked components or chassis tiers. Each hexagonal standoff is 3/16″ wide with male threading extending 3/16″ to 1/4″ from one end (dimension M on the mechanical drawing to the right) and female threading to a depth of 3/16″ to 1/4″ in the other end (dimension F). A variety of lengths are available with either 2-56 or 4-40 threading:

Select options:

The standoffs can be screwed together to make longer standoffs.

F-F (female-female) standoffs with threading running through the entire length of the body are also available:

Select options:

We carry a variety of 2-56 and 4-40 screws and hex nuts that can be used with these standoffs.



Length: 1.00 in

General specifications

Gender: Male-Female
Thread type: 2-56
