Sharp Analog Distance Sensor 2-15cm GP2Y0A51SK0F

The GP2Y0A51SK0F is the shortest-range Sharp analogue distance sensor Polou carry, featuring a detection range of 2 cm to 15 cm. The shorter range gives you higher resolution measurements, and the low minimum detection distance makes this sensor great for detecting very close objects.

AUD$ 19.95

Special Order

Shipping from $2.90

+542 more from our supplier in 7-10 days

Our Code: SEN-10074

Supplier Link: [Pololu MPN:2450]


Description

The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives. Interfacing to most microcontrollers is straightforward: the single analogue output can be connected to an analogue-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection, making this an adjustable-threshold alternative to digital Sharp sensors. The detection range of this version is approximately 2 cm to 15 cm (0.8″ to 6″).

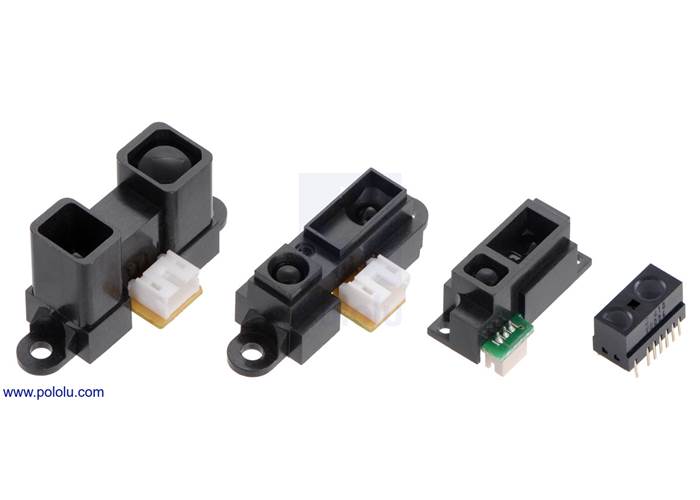

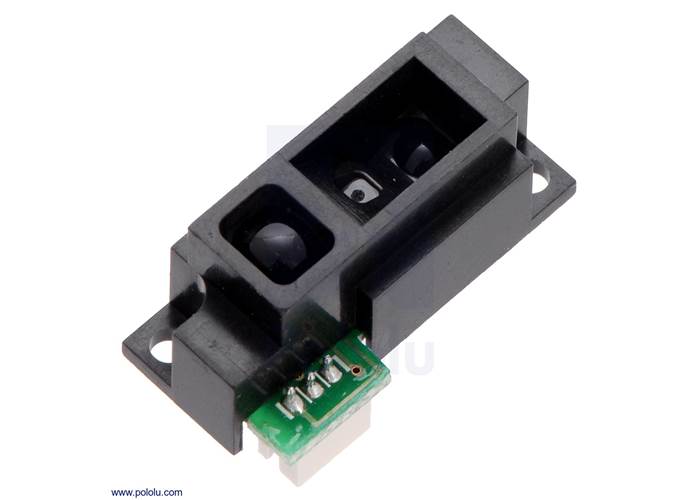

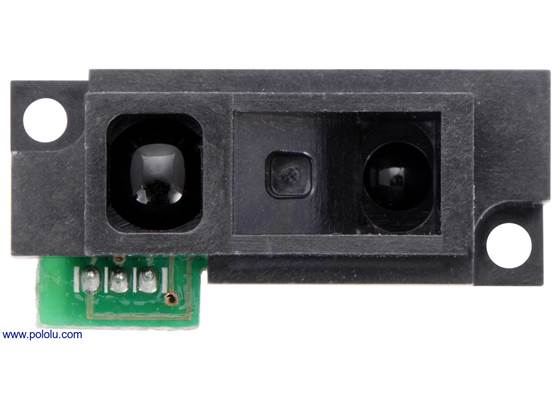

Sharp GP2Y0A51SK0F Analog Distance Sensor 2-15cm (1)

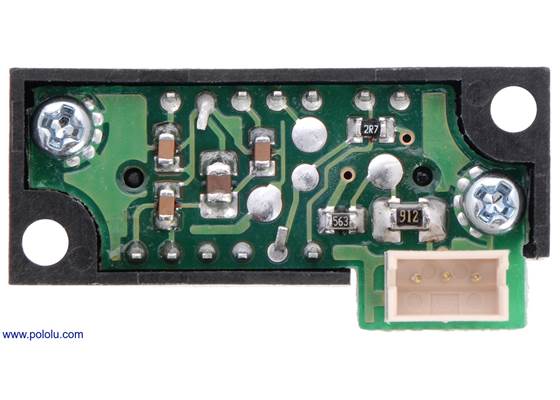

Sharp GP2Y0A51SK0F Analog Distance Sensor 2-15cm, back view

The GP2Y0A51 uses a 1.5mm-pitch 3-pin JST ZH connector that works with our 3-pin JST ZH-style cable (not included), as shown below:

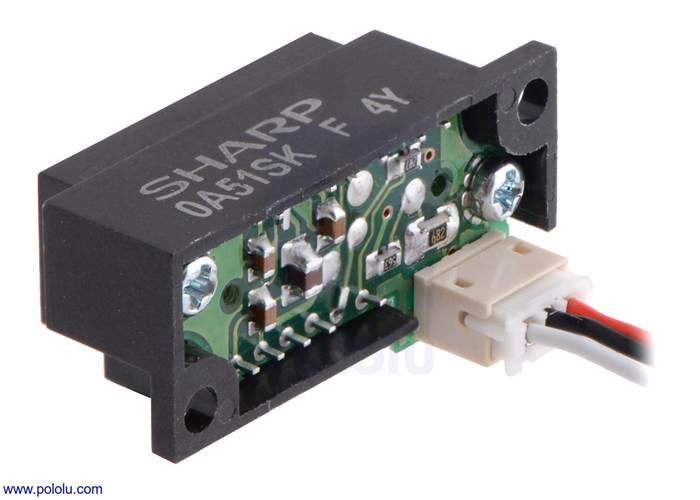

3-pin JST ZH-style cable connected to a Sharp GP2Y0A51SK0F Analog Distance Sensor 2-15cm

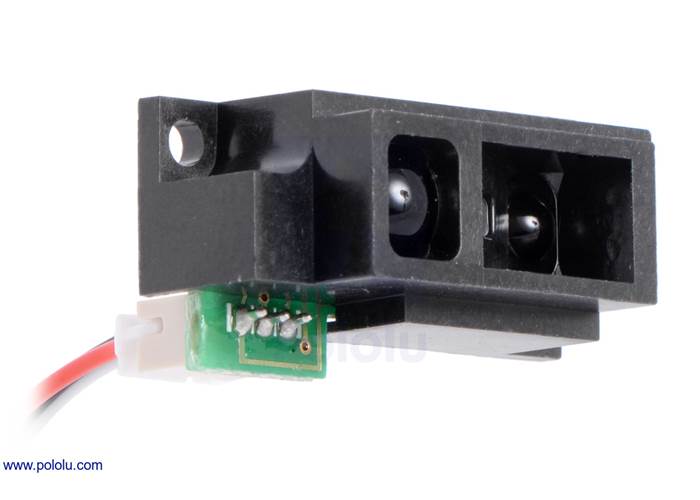

3-pin JST ZH-style cable connected to a Sharp GP2Y0A51SK0F Analog Distance Sensor 2-15cm (1)

The wire colour scheme matches the Sharp distance sensor pinout: red for power, black for ground, and white for signal.

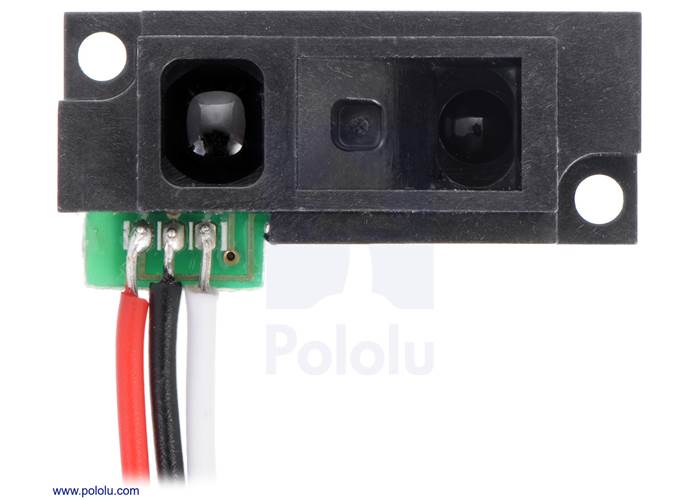

Sharp GP2Y0A51SK0F Analog Distance Sensor 2-15cm with wires soldered directly to the sensor PCB

It is also possible to solder three wires to the sensor where the connector pins are mounted, as shown in the picture to the right (you should probably add some hot glue for strain relief as a final step; this is not show in the picture because it would obscure the soldering). Because of the narrow pitch, it helps to have a fine-tipped soldering iron, and you should be very careful not to accidentally short two pins together with your wires or any added solder. When looking at the front of the sensor, the three connections are, from left to right, power (Vcc), ground, and the output signal (Vo).

Feature summary

  • Operating voltage: 4.5 V to 5.5 V
  • Average current consumption: 12 mA (note: this sensor draws current in large, short bursts, and the manufacturer recommends putting a 10 µF capacitor or larger across power and ground close to the sensor to stabilize the power supply line)
  • Distance measuring range: 2 cm to 15 cm (0.8″ to 6″)
  • Output type: analogue voltage
  • Output voltage differential over distance range: 1.65 V (typical)
  • Update period: 16.5 ± 4 ms
  • Size: 27 mm × 13.2 mm × 14.2 mm (1.06″ × 0.52″ × 0.56″)
  • Weight: 2.7 g (0.10 oz)

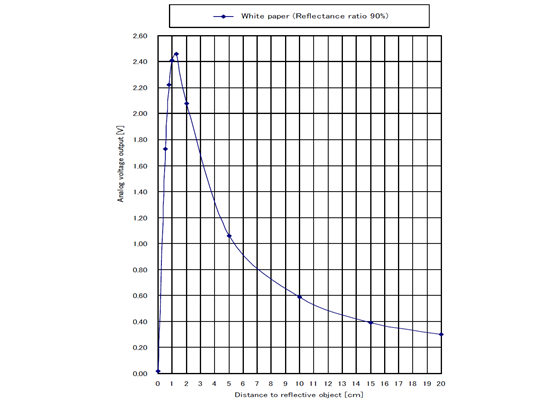

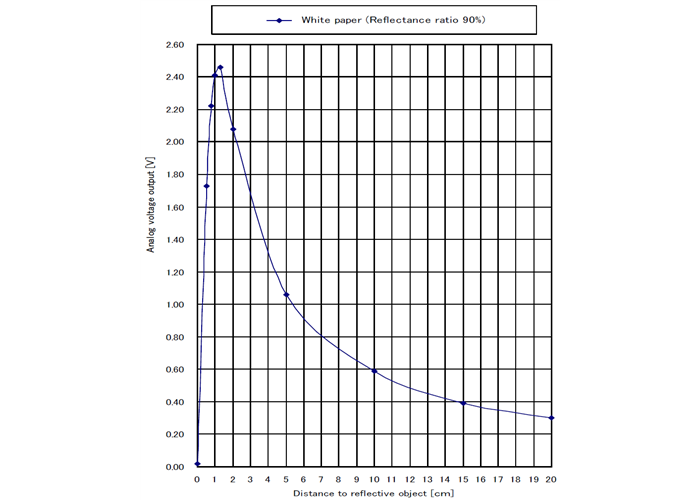

Graph of output voltage vs distance to reflective object for the Sharp GP2Y0A51SK0F analog distance sensor

Linearizing the output

The relationship between the sensor’s output voltage and the inverse of the measured distance is approximately linear over the sensor’s usable range. The GP2Y0A51SK0F datasheet (312k pdf) contains a plot of analogue output voltage as a function of the inverse of distance to a reflective object. You can use this plot to convert the sensor output voltage to an approximate distance by constructing a best-fit line that relates the inverse of the output voltage (V) to distance (cm).

Note: The GP2Y0A51SK is different from our other Sharp analogue distance sensors with JST PH connectors in two important ways: it uses a different 3-pin connector (JST ZH) that is not compatible with Polou's JST PH cables or 0.1″ connectors, and the mounting holes are in different locations, so it is not compatible with Polou's brackets for Sharp distance sensors. Like with most of the other Sharp distance sensors Polou carry, the manufacturer recommends you insert a bypass capacitor of 10 µF or more between Vcc and GND near this sensor to stabilize the power supply line.

The GP2Y0A51SK0F model is a lead-free, RoHS-compliant version of the Sharp GP2Y0A51 Distance Sensor.



Specifications

Dimensions

Size: 1.06″ × 0.52″ × 0.56″
Weight: 2.7 g

General specifications

Maximum range: 15 cm
Minimum range: 2 cm
Sampling rate: 60 Hz1
Minimum operating voltage: 4.5 V
Maximum operating voltage: 5.5 V
Supply current: 12 mA2
Output type: analogue voltage
Output voltage differential: 1.65 V3

Notes:

1
Typical; can be as low as 50 Hz.
2
Average; this sensor draws current in large, short bursts, which is why it is recommended a 10 µF capacitor or larger be placed across power and ground close to the sensor.
3
Over the range of 2 cm to 15 cm.

Resources

File downloads

GP2Y0A51SK0F datasheet (312k pdf)
