L298N Breakout board

This breakout board makes it easy to mount and connect to the L298 motor driver IC which has an unusual staggered pin layout.

AUD$ 5.95

In stock in Australia

Shipping from $2.90

+203 more from our supplier in 7-10 days

Our Code: CCW-20033

Supplier Link: [SparkFun MPN:BOB-09540]


This is the breakout board only. L298N driver is not included.

The L298N full bridge motor driver has an odd multiwatt package that has staggered pins. This can make it a bit of a hassle to jam into breadboards or other prototyping boards.

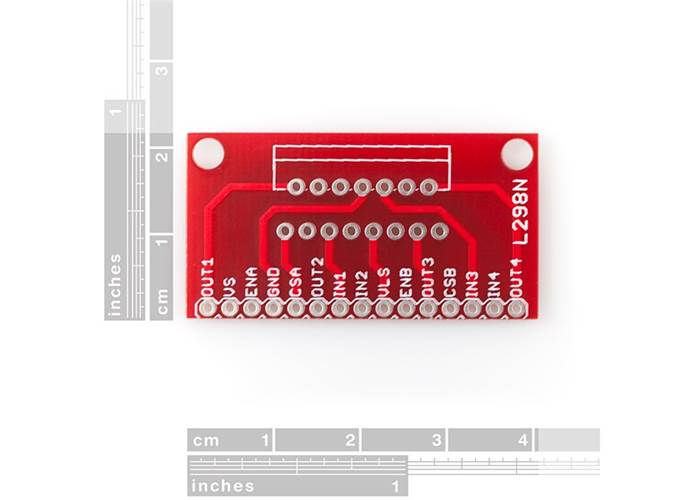

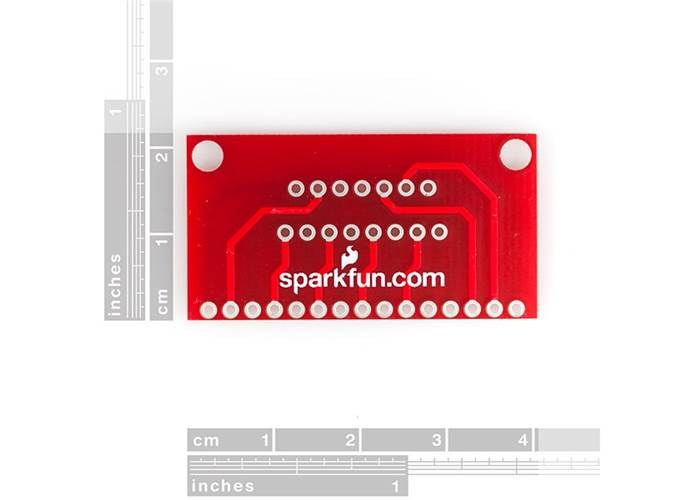

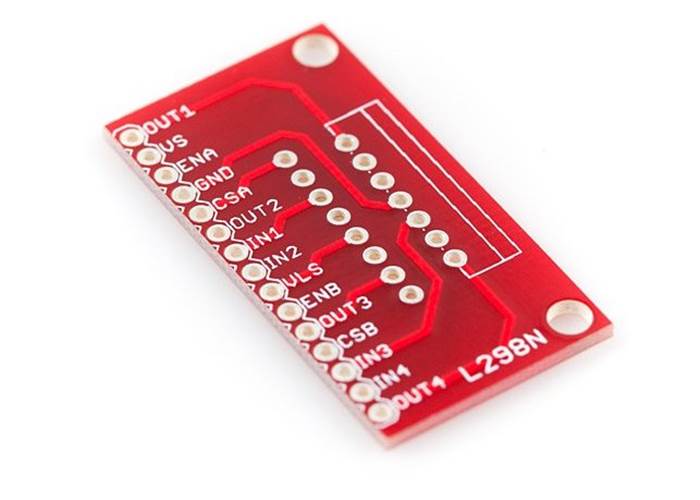

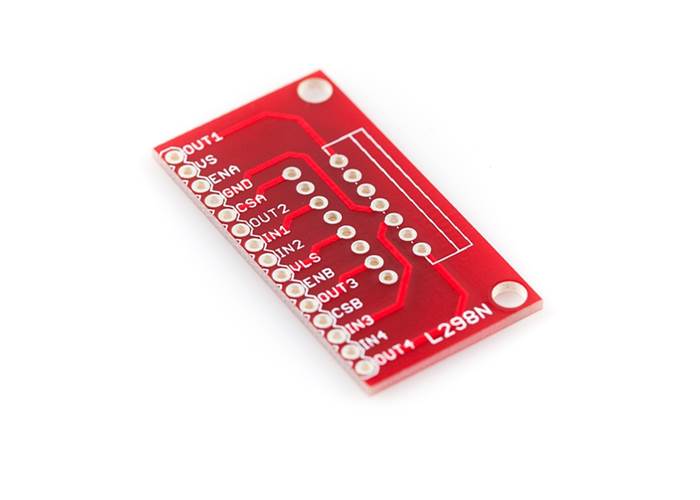

This simple breakout board makes using the L298N motor driver much easier. All pins of the L298N are broken out to a 15-pin 0.1" pitch header. Two mounting holes are also provided.

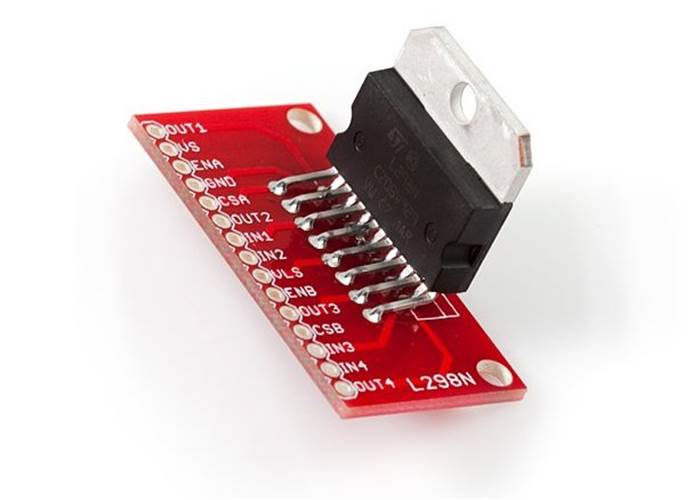

L298N motor driver IC mounted on the breakout board
