Tamiya 70100 Track and Wheel Set

The Tamiya 70100 Track and Wheel Set allows for a large degree of adjustability and creativity in designing your own robot. The set includes a variety of track lengths, sprockets, and wheels that are compatible with multiple Tamiya products .

AUD$ 30.95

In stock in Australia

Shipping from $9.90

+54 more from our supplier in 7-10 days

Our Code: MEC-30051

Supplier Link: [Pololu MPN:106]

Description

Box front for Tamiya 70100 Track and Wheel Set

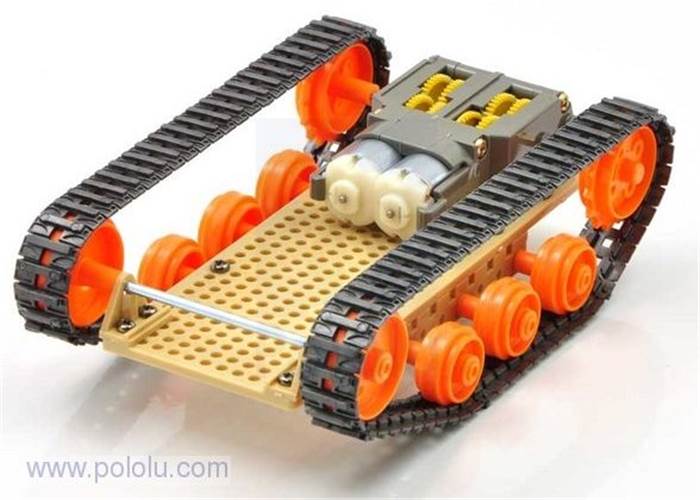

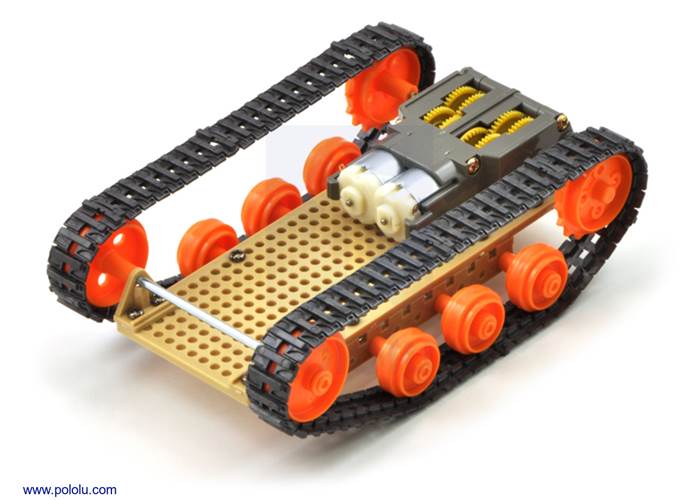

Tank-style chassis built using the Tamiya 70100 track and wheel set, Tamiya 70098 universal plate set, and Tamiya 70097 twin-motor gearbox kit.

The Tamiya 70100 Track and Wheel Set is designed to be used in conjunction with multiple Tamiya products. You can use a Tamiya Universal Plate Set for mounting the wheel and sprocket shafts and a Tamiya gearbox to drive the sprockets. The varying track length, sprocket, and wheel sizes allow for flexibility when designing your own robot.

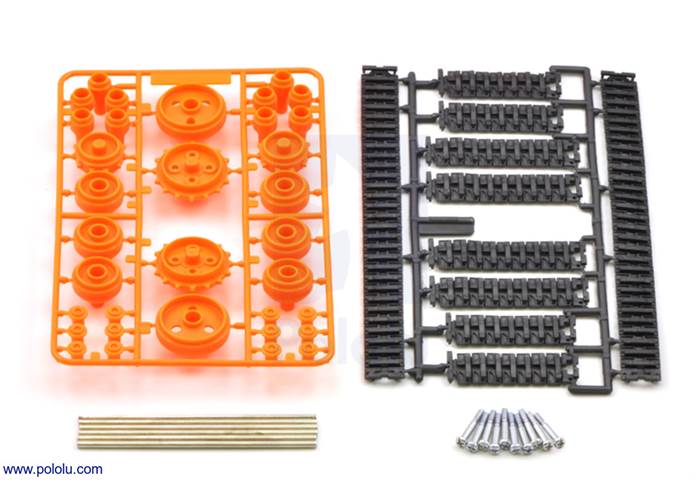

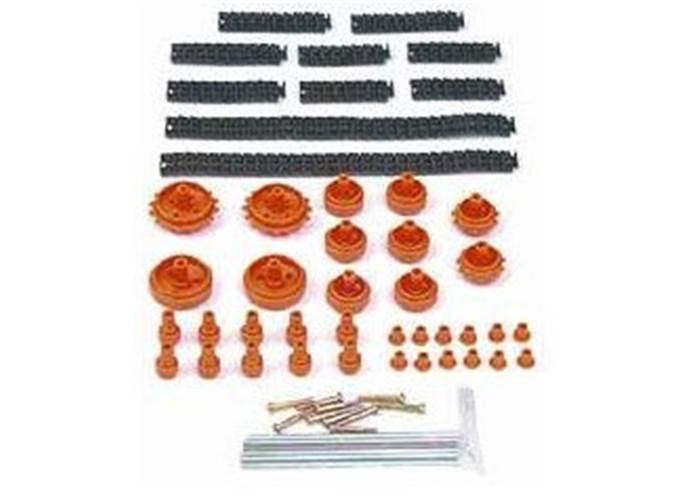

Included Parts

Two 30-link tracks
Four ten-link tracks
Four eight-link tracks
Two large drive sprockets
Two small drive sprockets
Two idler wheels
Six large road wheels
Ten small road wheels
Twelve wheel caps
Five 3 x 100 mm round shafts
One 3 x 100 mm hexagonal shaft
Ten 3 x 21 mm tapping screws

FAQs

What are the dimensions for Tamiya 70100 Track and Wheel set? I mainly need to know the tread width, pin to pin tread length, and large drive axle diameter.: The tracks are about 17mm wide. There aren’t any pins in these tracks; they’re just rubber, but the equivalent of the pin-to-pin distance is about 6.5mm. The main drive sprocket diameter is 32mm without the teeth (effective diameter with tread is around 37.5mm), and the axle is Tamiya’s 3mm hexagonal axle.
