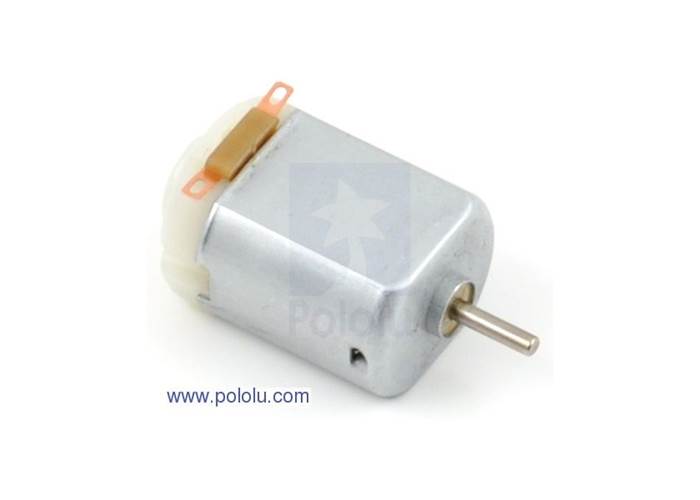

DC Motor: 130-Size, 6V, 11.5kRPM, 800mA Stall

AUD $3.10

In Stock: Ships Today

Back orders: Ship 898 units in 7 days

Our Code: MEC-30066

Supplier: [Pololu MPN:1117]

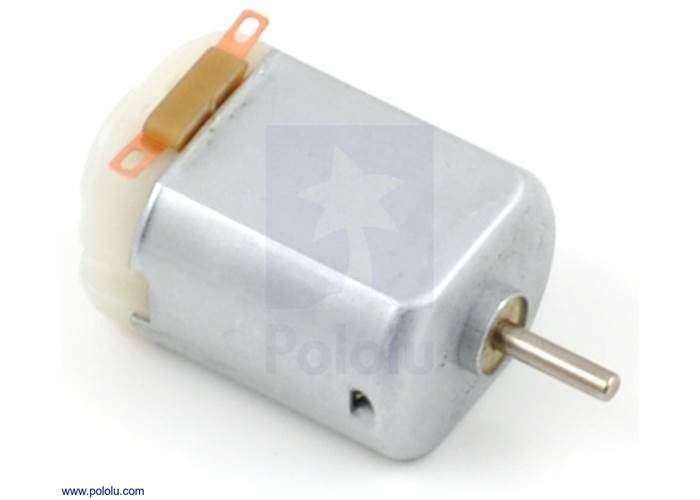

This 130-size DC motor has a recommended operation voltage of 3 – 12 V. Approximate specifications at 6 V: free-run speed of 11,500 RPM, free-run current of 70 mA, and stall current of 800 mA.


Overview

This is the 130-size DC motor is very similar to the Solarbotics RM3 motor, is cheaper but does not include a replacement pinion gear.

It is the same motor used in the larger Pololu plastic gearmotors with a recommended operating voltage of 3 – 12 V; at 6 V, the no-load speed is about 11,500 RPM, the no-load current is approximately 70 mA, and the stall current is around 800 mA. For an estimate of the torque, note that the Pololu 228:1 plastic gearmotor produces roughly 100 oz-in of torque at 6 V using this motor, and the Pololu 120:1 plastic gearmotors produce roughly 75 oz-in of torque at 6 V. The output shaft has a diameter of 2 mm.

We stock a motor bracket to suit 130 size motors. It is made of tough ABS plastic and makes it easy to mount these motors

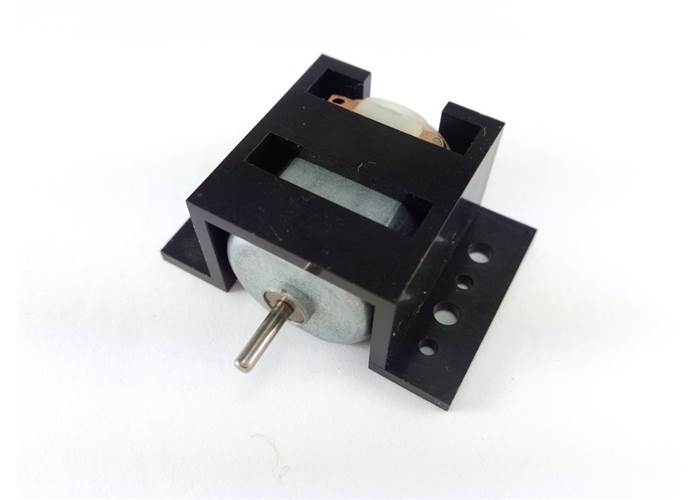

DC Motor Bracket for 130 size motors - with motor

DC Motor Bracket for 130 size motors - with motor



This motor works well with many of our lower-power motor controllers, such as the qik 2s9v1 dual serial motor controller, Orangutan SV-328 robot controller, Baby Orangutan robot controller, and TB6612FNG dual motor driver carrier.

This motor is not as electrically noisy as the FA-130 motor used in many of the Tamiya gearboxes, and it draws much less current. The two motors are the same size and have similar output power, but, with double the voltage and half the current, these units are generally more convenient to use. If you would like to use lower-current motor controllers with the Tamiya gearboxes, you can simply replace the original Tamiya motor with this and you’ll be set! (Tamiya gearboxes that work with this motor include the popular 70168 Double Gearbox and 70097 Twin-Motor Gearbox.) These motors can also be used to replace those found in the Solarbotics GM2, GM3, GM8, and GM9 gearboxes.


Specifications

Dimensions

Size: 25 x 15 x 20 mm
Weight: 18 g
Shaft diameter: 2 mm

General specifications

Free-run speed @ 6V: 11500 rpm
Free-run current @ 6V: 70 mA
Stall current @ 6V: 800 mA
