Hobby Motor - Gear

AUD $2.35

Out of Local Stock

Back orders: Ship 6821 units in 7 days

 Notify Me

Our Code: SKU-001093

Supplier: [SparkFun MPN:11696]

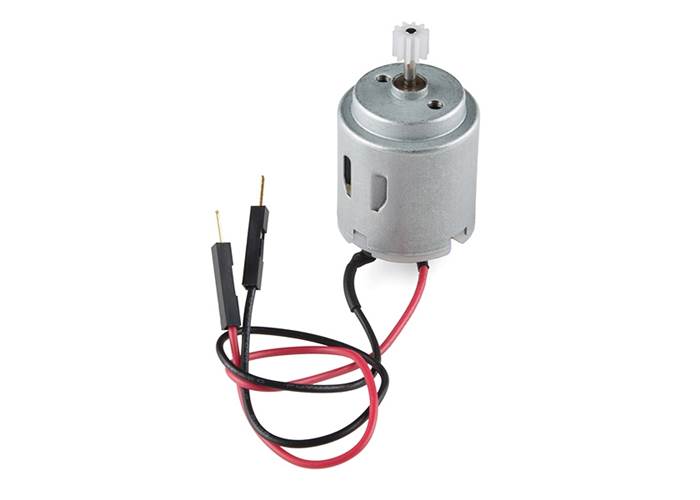

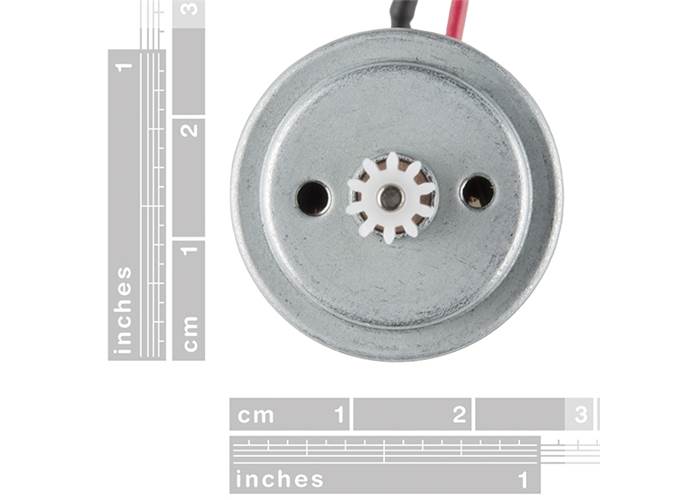

This brushed DC Hobby motor includes a 6mm, 10 tooth gear and operates at 1-3V but can work to 12VDC. Free run speed of 6600 RPM @ 1V , 110mA.


Description

This is our new Hobby Motor now with a 6mm, 10 tooth, gear to make your basic projects a little simpler to manage. It works well for basic things like making a fan or spinning something pretty fast without much resistance.

The motor has a normal operating voltage range of 1.0 to 3.0VDC but can handle a max load of up to 12VDC and a no load speed of 6600±10% RPM (@1.0V DC, 110mA). More information is available in the spec sheet linked below.

Note: Thought the Datasheet for this Hobby Motor states a max voltage range of 3.0VDC, our supplier has ensured us that it can handle a max load of 12VDC.
