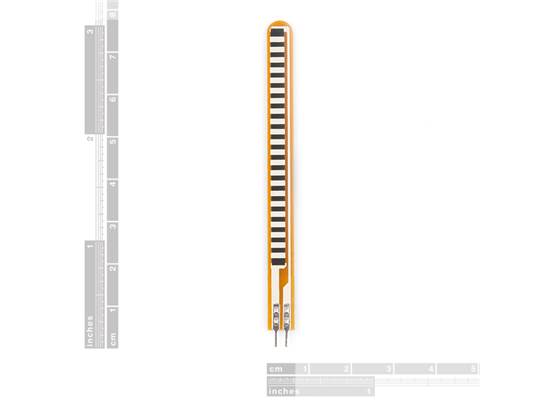

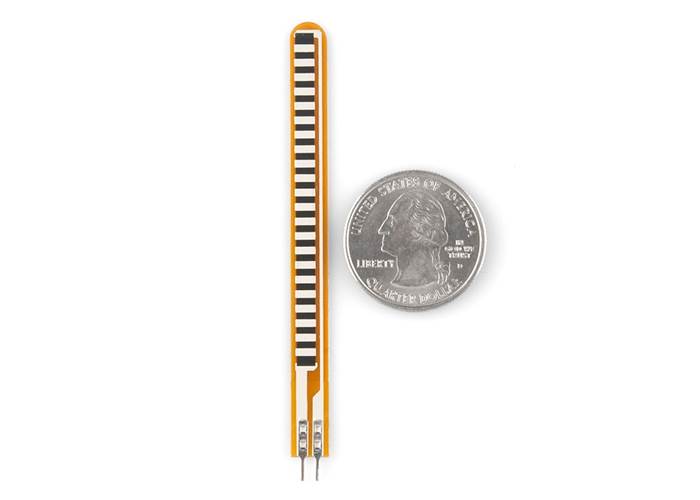

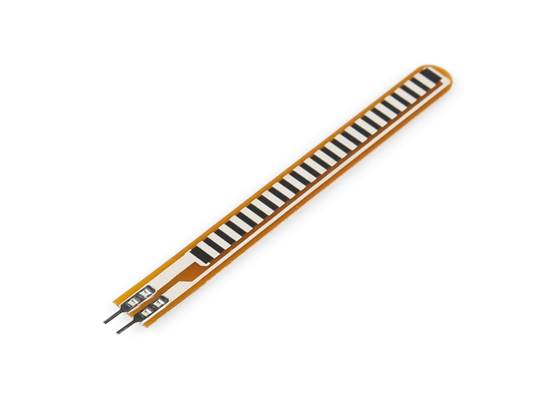

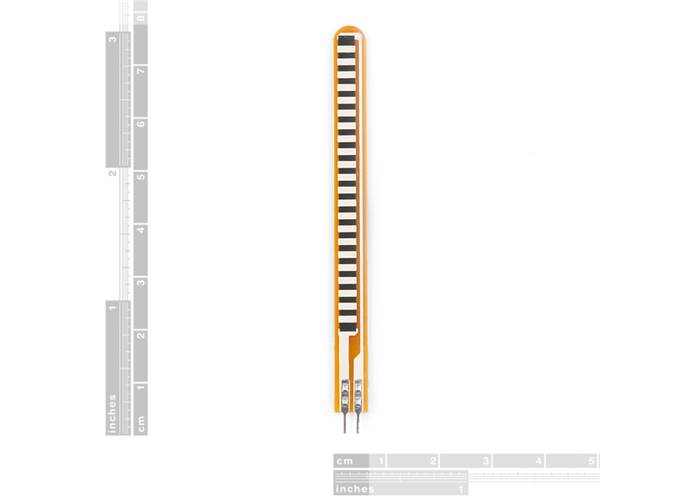

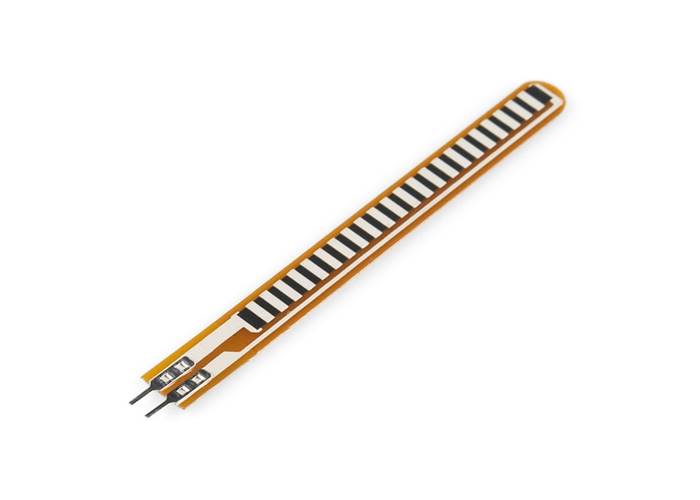

Flex Sensor 2.2"

This flex sensor is 2.2" / 56mm in length. The resistance of the sensor increases as it is flexed and the pins are suitably spaced for use in a breadboard.

AUD$ 15.95

In stock in Australia

We can ship 404 more in 7 days

Our Code: SKU-000633

Supplier Link: [SparkFun MPN:10264]


Description

A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It’s so bad!

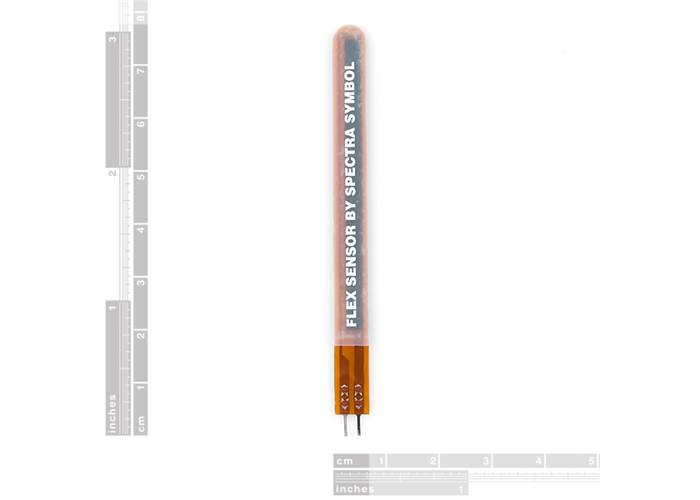

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

Connector is 0.1" spaced and bread board friendly. Check datasheet for full specifications.

Note: Please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimise flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex.
