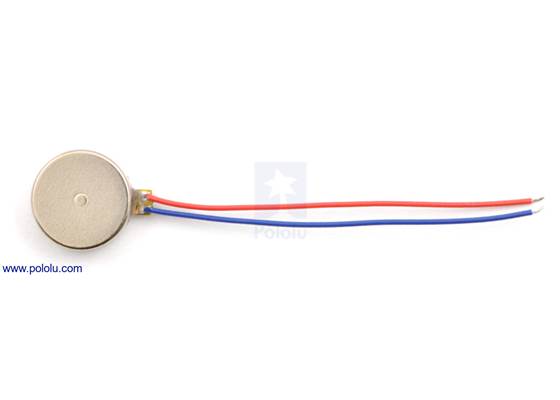

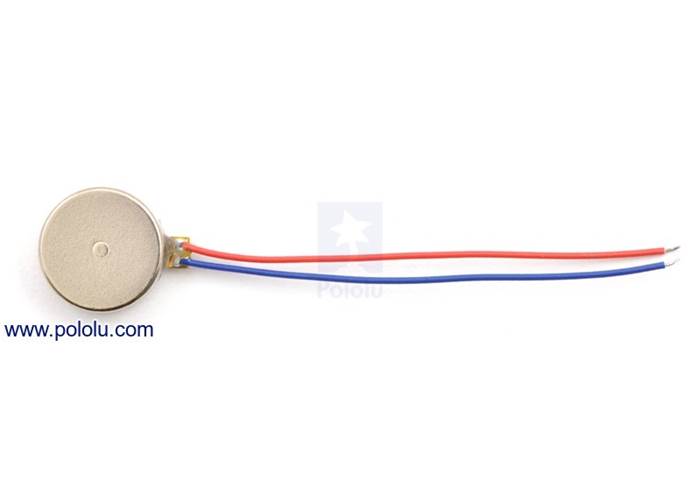

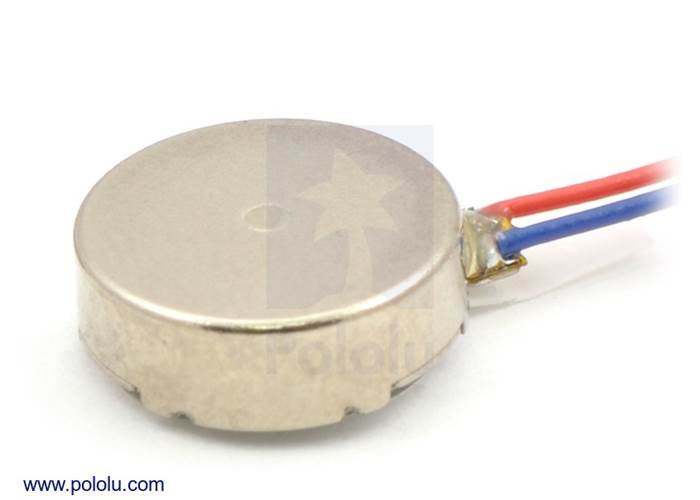

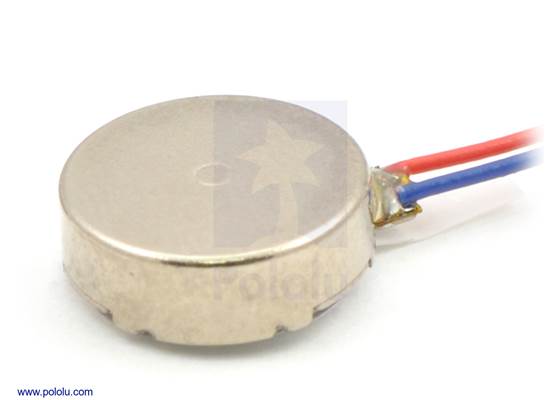

Shaftless Vibration Motor 10x3.4mm

This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads. The shaftless design keeps this motor small: 10 mm in diameter and 3.4 mm in height.

AUD$ 4.95

In stock in Australia

We can ship 796 more in 7 days

Our Code: SKU-002706

Supplier Link: [Pololu MPN:1636]


Description

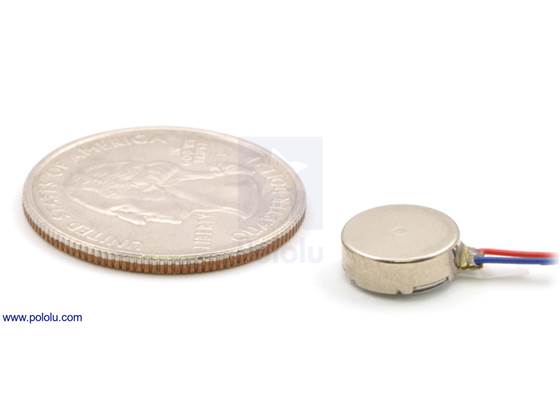

Shaftless vibration motor 10x3.4mm with quarter for size reference

Overview

This shaftless vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project. The motor has a 3M adhesive backing on it for easy mounting and 1.5" leads for making quick connections. Polarity is not important; the motor can run CW or CCW.

We offer this vibration motor in three different sizes:

All three of these motors have the same vibrational amplitude (0.75g), but the 10×3.4mm version has more mass than the other two, which results in a slightly greater vibrational force.

Specifications

Size 10 mm diameter, 3.4 mm height
Weight 1.2 g
Recommended operating voltage 2.5 – 3.5 V
Vibration amplitude at 3 V 0.75g

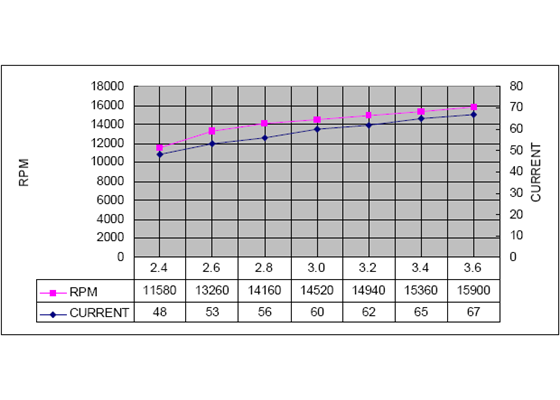

Speed at 3 V 14500 RPM (12000 RPM min)
Free-run current at 3 V 60 mA (80 mA max)
Startup current at 3 V 120 mA max
Motor resistance 29 ± 6 Ω
Operating temperature -10°C to +60°C
Storage temperature -30°C to +70°C

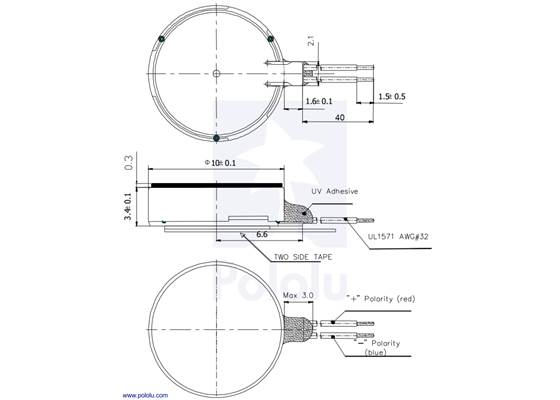

Dimensions (in mm)


Specifications

Dimensions

Size: 10.0 x 3.4 mm
Weight: 1.2 g

General specifications

Free-run speed @ 3V: 14500 rpm1
Free-run current @ 3V: 60 mA2
Voltage: 3 V3
Vibration amplitude: 0.75 g

Notes:

1
12000 RPM minimum at 3 V.
2
80 mA maximum at 3 V.
3
Recommended operating range is 2.5 to 3.5 V.
