Arduino Pro Mini 328 - 5V by SparkFun

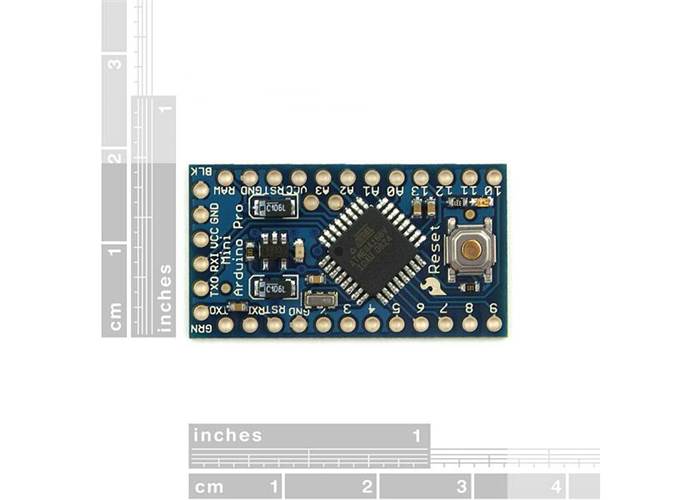

The Arduino Pro Mini 328 5V/16MHz is miniature Arduino microcontroller board by SparkFun Electronics. At a tiny 18mm x 33mm and 0.8mm high this board uses the same ATmega328 chip as the Arduino Uno but is much smaller, lighter and cheaper.

AUD$ 17.95

In stock in Australia

Shipping from $2.90

+375 more from our supplier in 7-10 days

Our Code: MCU-60009

Supplier Link: [SparkFun MPN:DEV-11113]


Overview

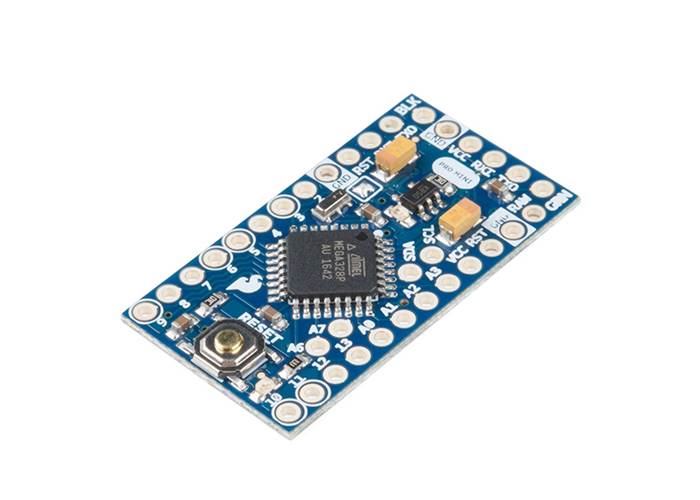

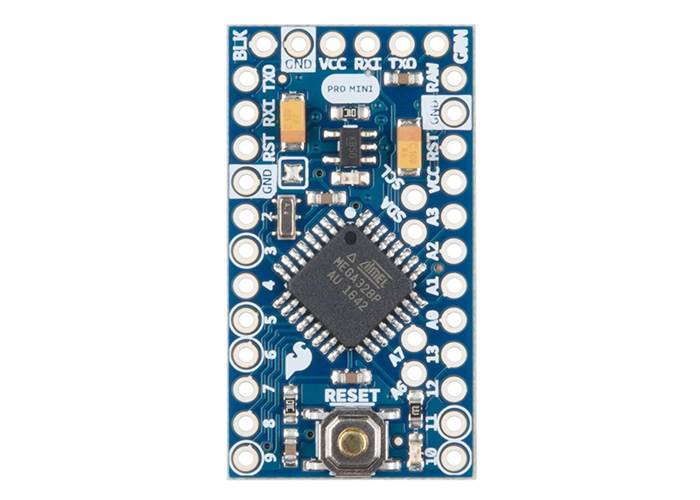

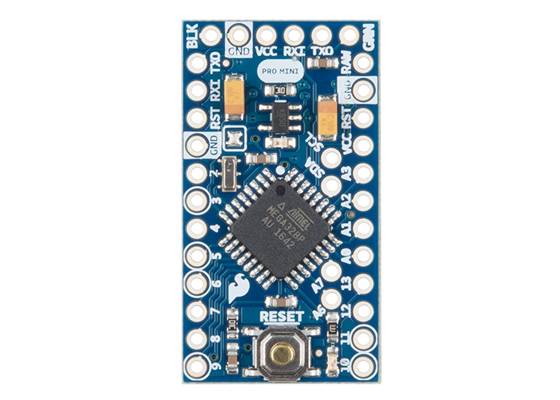

It's blue! It's thin (0.8mm)! It's the Arduino Pro Mini! SparkFun's minimal design approach to Arduino. This is a 5V Arduino running the 16MHz bootloader featuring the same ATmega328 chip as the Arduino Duemilanove. The low cost and small size makes this board ideal for leaving in a finished project.

The latest and greatest version of this board breaks out the ADC6 and ADC7 pins as well as adds footprints for optional I2C pull-up resistors!

Arduino Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need. We recommend first time Arduino users start with the Duemilanove. It's a great board that will get you up and running quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (5V), lack of connectors, and USB off board. When using the Arduino software select 'Arduino Duemilanove w/ 328' as the board.

SparkFun really wanted to minimize the cost of an Arduino. The Arduino Pro Mini is like the Arduino Mini (same pin out) but to keep the cost low, they used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Arduino Pro Mini also works with a FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work.

Features

  • ATmega328 running at 16MHz with external resonator (0.5% tolerance)
  • USB connection off board
  • Supports auto-reset
  • 5V regulator
  • Max 150mA output
  • Over current protected
  • Reverse polarity protected
  • DC input 5V up to 12V
  • On board Power and Status LEDs

Dimensions

  • 0.7x1.3" (18x33mm)
  • Less than 2 grams


Be sure to check out the Arduino Pro Mini Homepage and the Getting Started Tutorial
