Vibration Motor

It's an Itsy Bitsy Teenie Weenie 2mm Vibration Motor

AUD$ 4.95

In stock in Australia

Shipping from $4.90

+352 more from our supplier in 7-10 days

Our Code: SKU-000182

Supplier Link: [SparkFun MPN:8449]


Description

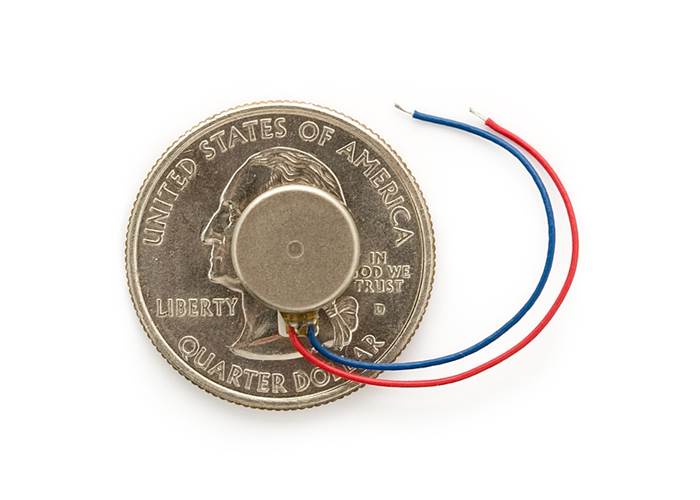

A vibration motor! This itty-bitty, shaftless vibratory motor is perfect for non-audible indicators. Use in any number of applications to indicate to the wearer when a status has changed. The housing protects all moving parts. With a 2-3.6V operating range, these units shake crazily at 3V. Once anchored to a PCB or within a pocket, the unit vibrates softly but noticeably.

This high-quality unit includes 3M adhesive backing and reinforced connection wires.


Specifications

  • Single-Phase Motor
  • Flat Coreless Coil Construction
  • Number of Poles: 4
  • Rated Speed: 13000±3000rpm/min
  • Operating Voltage: 2.3V DC to 3.6V DC
  • Rated Current: 60mA (max)
  • Mechanical Noise: 50dB
