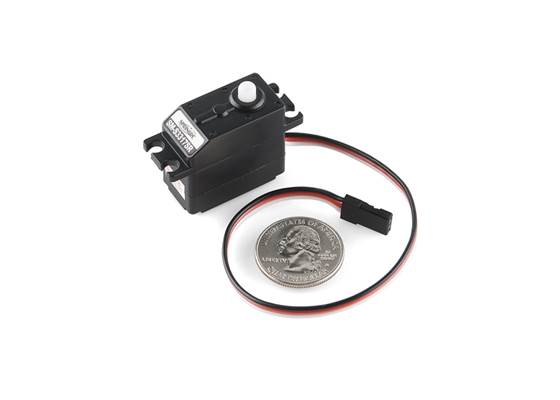

Servo - Generic Continuous Rotation (Micro Size)

AUD $21.95

Order As Required

Back orders: Ship 418 units in 7 days

Our Code: SKU-000603

Supplier: [SparkFun MPN:10189]

Here, for all your mechatronic needs, is a simple, high quality continuous rotation servo motor. This servo is able to take in 6 volts and deliver 30.6 oz-in. of maximum torque at 0.14 sec/60° A standard 3-pin power and control cable is attached and all hardware listed below is included.


Description

Here, for all your mechatronic needs, is a simple, high quality continuous rotation servo motor. This servo is able to take in 6 volts and deliver 30.6 oz-in. of maximum torque at 0.14 sec/60°

A standard 3-pin power and control cable is attached and all hardware listed below is included.


Specifications

  • Voltage: 4.8-6.0 Volts
  • Torque: 27.8/30.6 oz-in. (4.8/6.0V)
  • Speed: 0.16/0.14 sec/60° (4.8/6.0V)
  • Rotation: 360°
  • Dual Ball Bearing
  • Plastic Gears

Includes:

  • 1x SM-S3317S Full Rotation Servo
  • 1x Single Arm Horn
  • 1x Double Arm Horn
  • 1x Four Point Horn
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

Dimensions

  • 31.3 x 16.3 x 28.5mm
  • Wire Length: 160mm
  • Weight: 18g
