Servo - Hitec HS-422 (Standard Size)

This is the classic Hitec HS-422 servo. This solid consumer grade servo is able to take in 6 volts and deliver 57 oz-in.

AUD$ 45.95

In stock in Australia

Shipping from $7.90

+11 more from our supplier in 7-10 days

Our Code: SKU-001170

Supplier Link: [SparkFun MPN:11884]


Description

This is the classic Hitec HS-422 servo. This solid consumer grade servo is able to take in 6 volts and deliver 57 oz-in. of maximum torque at 0.16 sec/60°, this is a simple servo for any beginner project!

This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start. The HS-422 servo comes standard with a 3-pin power and control cable and all hardware listed below.


Specifications

  • Voltage: 4.8-6.0 Volts
  • Torque: 45.82/56.93 oz-in. (4.8/6.0V)
  • Speed: 0.21/0.16 sec/60° (4.8/6.0V)
  • Direction: Clockwise/ Pulse Traveling 1500-1900usec
  • Rotation: 180°
  • Dual Oilite Bushing
  • Nylon Gears
  • 3-Pole Ferrite Motor
  • C1 Standard Spline (24 Teeth)

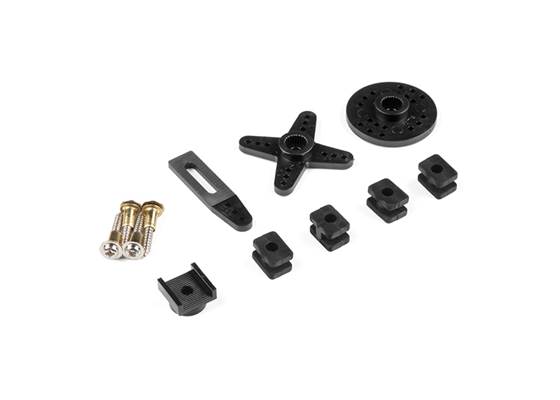

Includes:

  • 1x HS-422 Servo
  • 1x Circle Horn
  • 1x Double Arm Horn
  • 1x Single Arm (w/ Slide Bracket) Horn
  • 1x Four Point Horn
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

Dimensions

  • 40.6 x 19.8 x 36.6mm
  • Wire Length: 300mm
  • Weight: 45.5g
