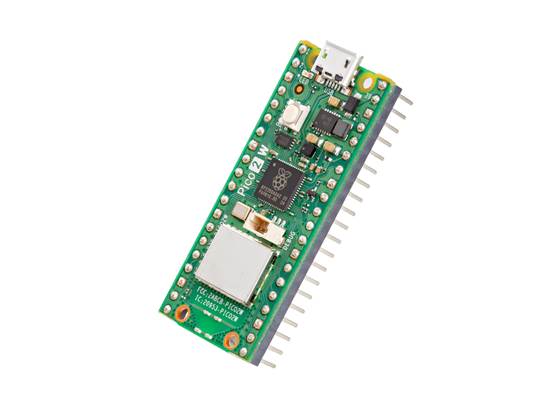

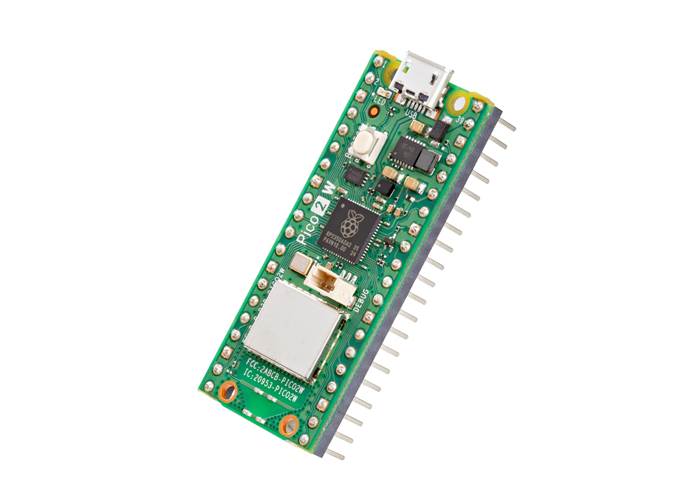

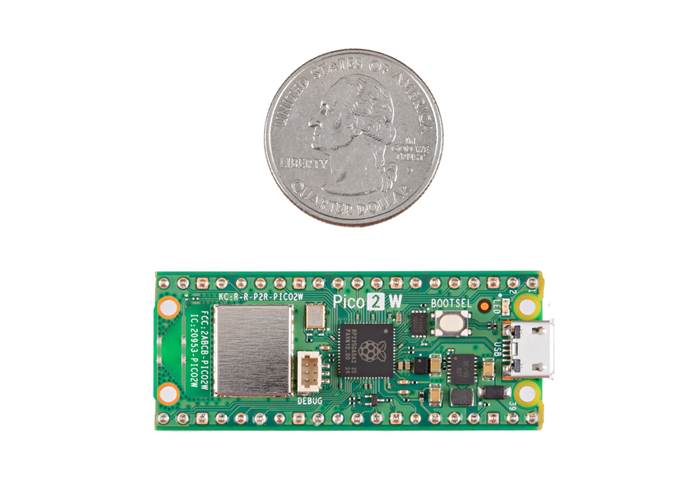

Raspberry Pi Pico 2 W with Headers

Raspberry Pi microcontroller board featuring the RP2350A and a wireless radio providing WiFi and Bluetooth functionality with headers pre-soldered.

AUD$ 18.95

Special Order

Shipping from $2.90

+260 more from our supplier in 7-10 days

Our Code: SKU-011140

Supplier Link: [SparkFun MPN:28830]

Description

The Raspberry Pi Pico 2 series of microcontroller boards is built on RP2350: a high-performance, secure microcontroller. With a higher core clock speed, double the on-chip SRAM, double the on-board flash memory, more powerful Arm cores, optional RISC-V cores, new security features, and upgraded interfacing capabilities than the previous version. The Raspberry Pi Pico 2 series delivers a significant performance and feature boost while retaining hardware and software compatibility with earlier members of the Raspberry Pi Pico family.

The Pico 2 W adds wireless functionality with a 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 wireless radio and on-board antenna. The radio holds modular compliance certification the United States.

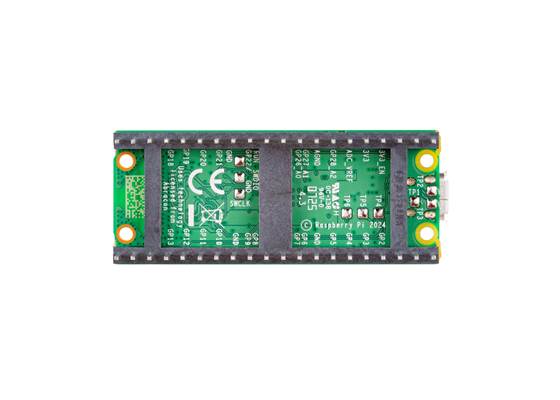

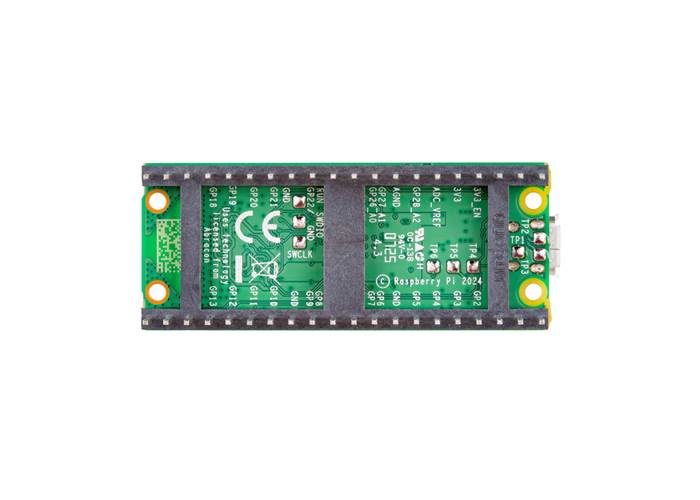

This variation of the Pico 2 W comes with headers pre-soldered to the board. Making things like breadboarding much easier.

Specifications

RP2350A

A 150MHz system clock (versus 133MHz)
Dual Arm Cortex-M33 cores (versus dual Arm Cortex-M0+)
Dual RISC-V Hazard3 cores
520KB RAM (versus 264KB)
8KB on-chip OTP storage
A comprehensive security model, based on Arm TrustZone for Cortex-M
Greatly improved power efficiency compared to the RP2350

Raspberry Pi Pico 2 W also includes:

4MB of on-board QSPI Flash memory (versus 2MB on Raspberry Pi Pico W) for code, data, and wireless firmware storage.
A CYW43439 wireless modem, supporting:
- 2.4GHz 802.11n Wi-Fi
- Bluetooth 5.2
Pre-soldered Headers
