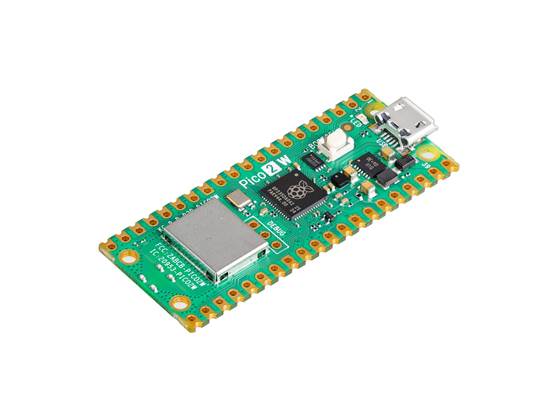

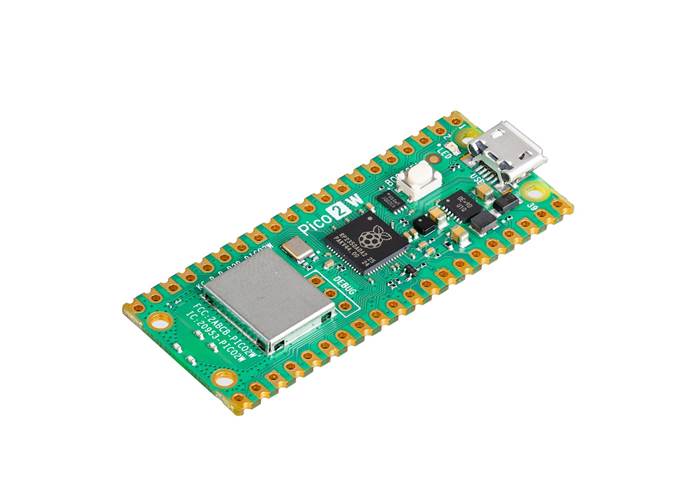

Raspberry Pi Pico 2 W

The Raspberry Pi Pico 2 series of microcontroller boards is built on RP2350: a high-performance, secure microcontroller. With a higher core clock speed, double the on-chip SRAM, double the on-board flash memory, more powerful Arm cores, optional RISC-V cores, new security features, and upgraded interfacing capabilities than the previous version. The Raspberry Pi Pico 2 series delivers a significant performance and feature boost while retaining hardware and software compatibility with earlier members of the Raspberry Pi Pico family.

The Pico 2 W adds wireless functionality with a 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 wireless radio and on-board antenna. The radio holds modular compliance certification the United States.

RP2350A

• A 150MHz system clock (versus 133MHz)
• Dual Arm Cortex-M33 cores (versus dual Arm Cortex-M0+)
• Dual RISC-V Hazard3 cores
• 520KB RAM (versus 264KB)
• 8KB on-chip OTP storage
• A comprehensive security model, based on Arm TrustZone for Cortex-M
• Greatly improved power efficiency compared to the RP2350

Raspberry Pi Pico 2 W also includes:

• 4MB of on-board QSPI Flash memory (versus 2MB on Raspberry Pi Pico W) for code, data, and wireless firmware storage.
• A CYW43439 wireless modem, supporting:
  • 2.4GHz 802.11n Wi-Fi
  • Bluetooth 5.2

• Product Brief
