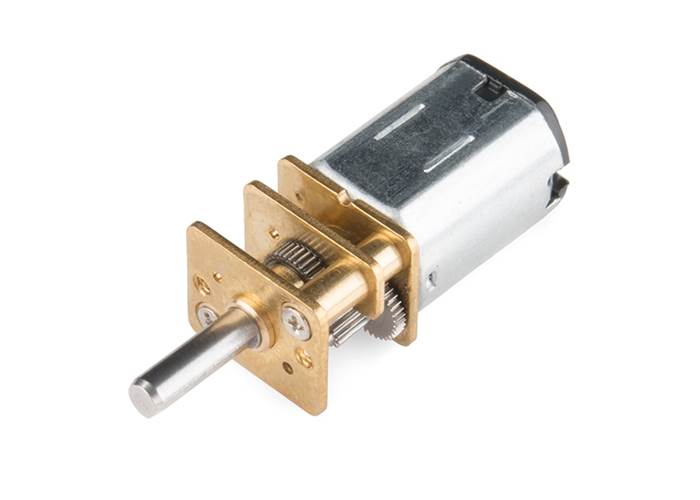

Micro Gearmotor - 90 RPM (6-12V)

These micro gearmotors are incredibly tough and feature full metal gears. They have a gear ratio of 298:1 and operate up to 12 volts and have a stall torque of 70 oz-in. and a max speed of 90 RPM. Each micro gearmotor sports a 3mm D-shaft.

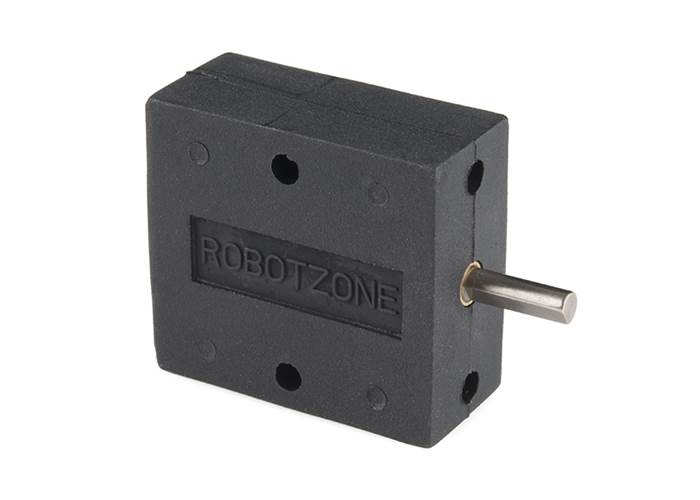

Note: The micro gearmotor enclosures are sold separately, you can find them here.

Features:

• Voltage: 6 - 12 Volts
• Gear Ratio: 298:1
• Stall Torque: 40/70 oz-in. (6/12V)
• Speed: 45/90 RPM (6/12V)
• No Load Current: 30/70 mA (6/12V)
• Stall Current: 360/1600 mA (6/12V)
• DC Reversible

Dimensions:

• Motor Size: 26 x 12 x 10mm
• Shaft Size: 3mm Diameter x 10mm Length
• Weight: 17g
