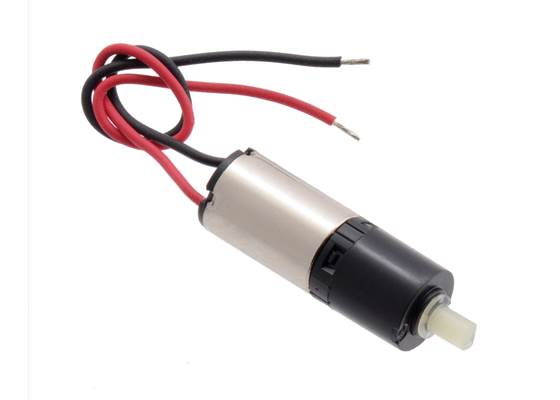

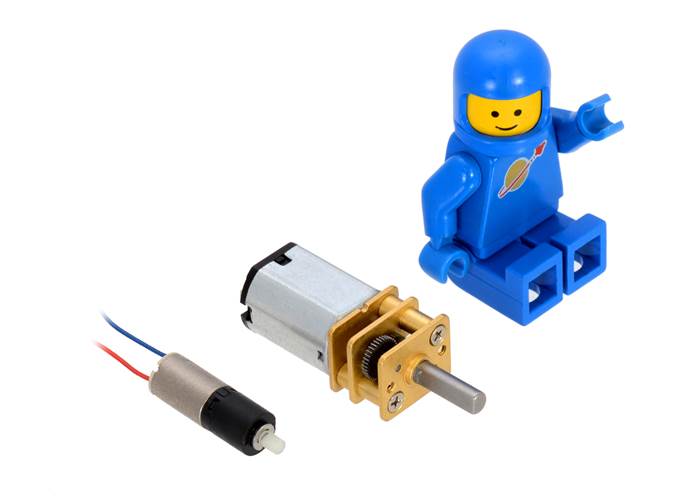

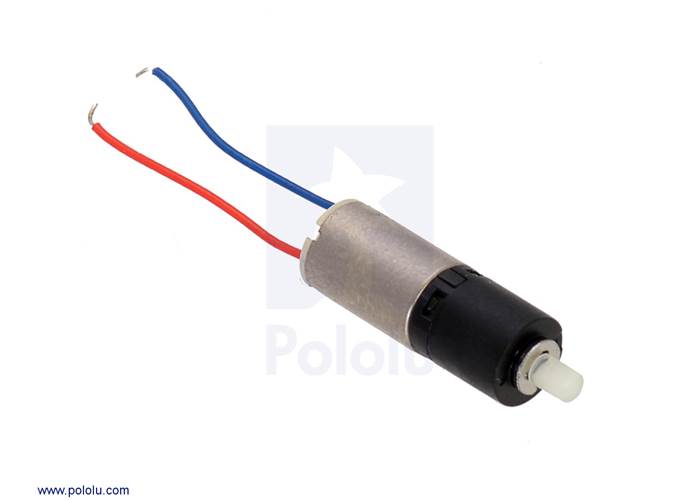

This tiny, cylindrical gearmotor consists of a coreless brushed DC motor and a 26:1 plastic planetary gearbox. The entire assembly has a diameter of just 6 mm (0.24″) and an extremely light weight of 1.2 g (0.042 oz), making it a great actuator for miniature robots and very small mechanisms. Key specs at 6 V: 2500 RPM and 35 mA free-run, 1.5 oz-in (0.1 kg-cm) and 400 mA stall.
In stock in Australia
Our Code: MEC-30193
Supplier Link: [Pololu MPN:2357]

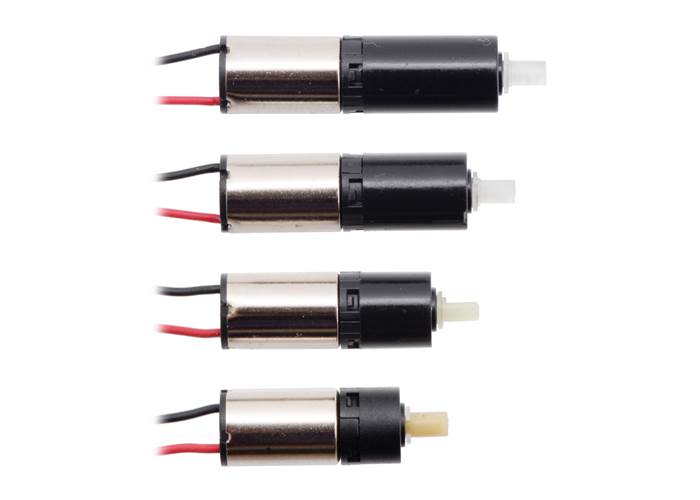

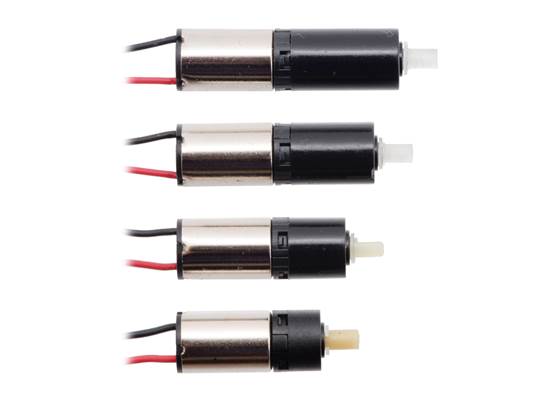

These tiny brushed DC gearmotors have a diameter of just 6 mm and weigh just over a gram, which makes them great actuators for miniature robots and very small mechanisms. They consist of a coreless motor fastened to a 26:1 or 136:1 planetary gearbox by a small clip. The gears are made from liquid crystal polymers (LCPs), and gearbox’s nylon output shaft is compatible with our 14 mm wheels.
The intended nominal operating voltage for these motors is 3 V to 6 V, though in general, these kinds of motors can be used at voltages outside this range (rotation typically starts between 0.2 V and 0.3 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.
Since the gearmotor’s output shaft is nylon, there can be small variances in the diameter from unit to unit. These variations might cause press-fit attachments like our 14 mm wheel to fit loosely in some instances. If you experience a loose fit, you could try swapping wheels or using a small dab of glue to help hold the wheel on.

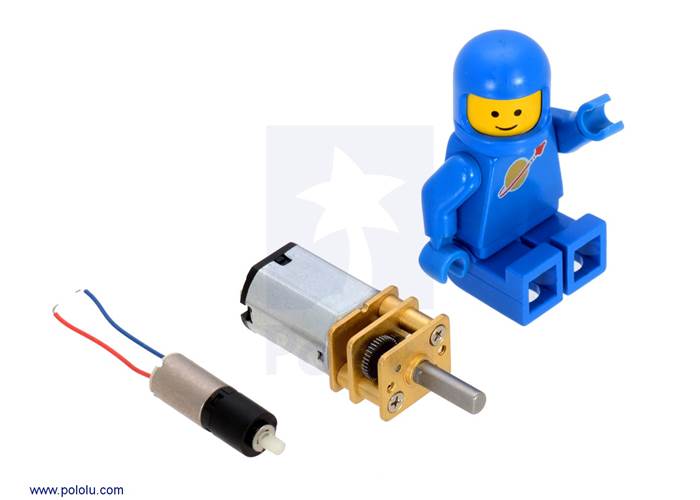

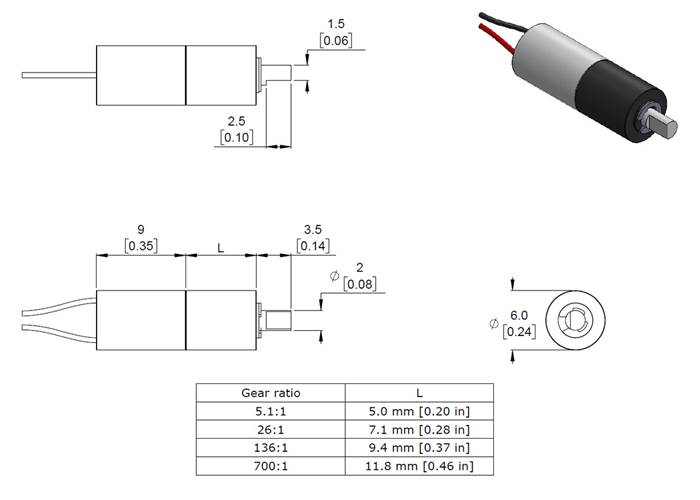

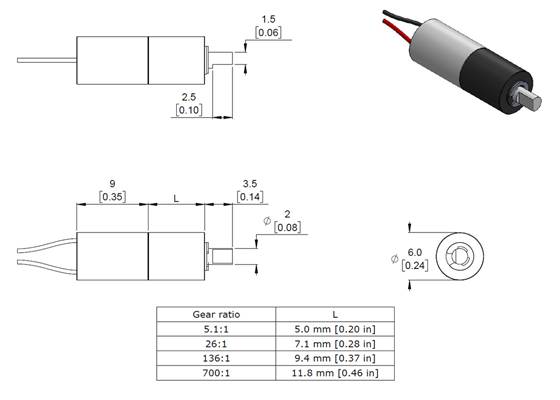

The following diagram shows the micro plastic gearmotor dimensions in mm. The planetary gearbox has a D-shaped plastic output shaft, which is 2 mm in diameter with a section that is flattened by 0.5 mm. The “D” portion of the shaft is 2.5 mm long. The motor measures 6 mm in diameter and 9 mm in length, and the gearbox length, labeled “L” in the diagram below, depends on the gear ratio. The 26:1 gearbox is 7.1 mm long, while the 136:1 option measures 9.4 mm. The motor leads come with their tips pre-stripped and extend approximately 2 cm (0.8″) from the back of the motor.

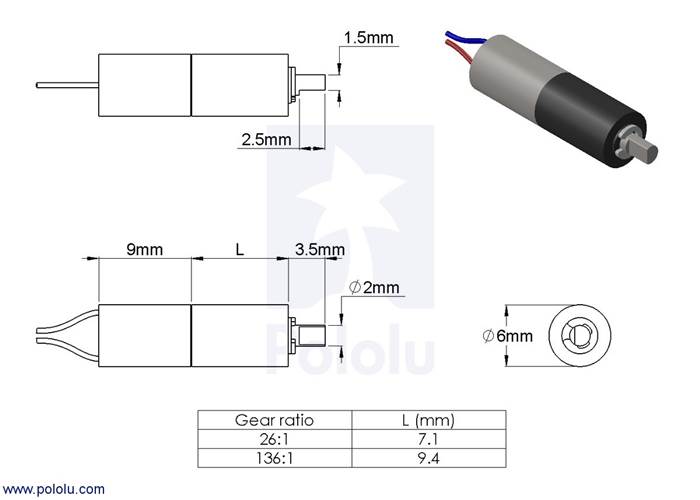

26-1 sub-micro plastic planetary gearmotor - mechanical drawing
This dimension diagram is also available as a downloadable PDF (117k pdf).

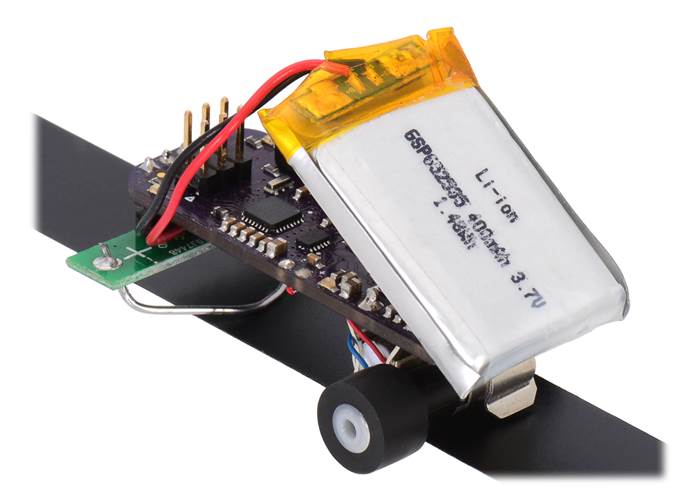

The micro plastic gearmotor’s output shaft is compatible with our 14 mm wheels. We do not have any brackets for this gearmotor, and it does not have any mounting holes, but its compact size makes it easy to fasten with tape or glue. Alternatively, since this gearmotor is nearly the same size as a 1/4″ fuse, it can be mounted using standard 1/4″ (6 mm) fuse clips, which can be found at places like Altronics or Jaycar.

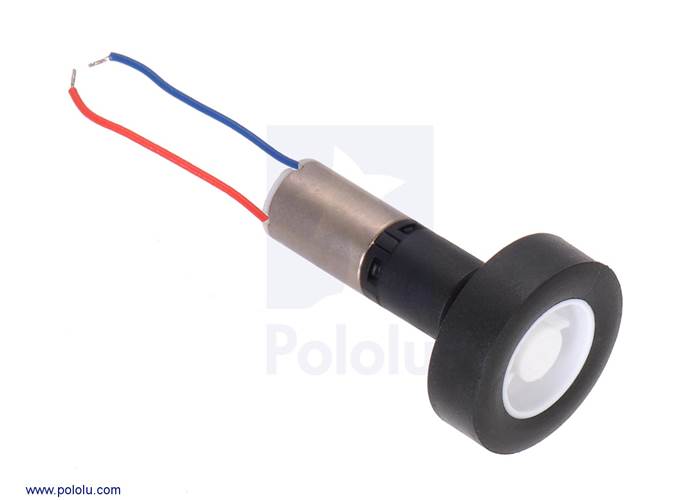

26-1 sub-micro plastic planetary gearmotor - wheel attached

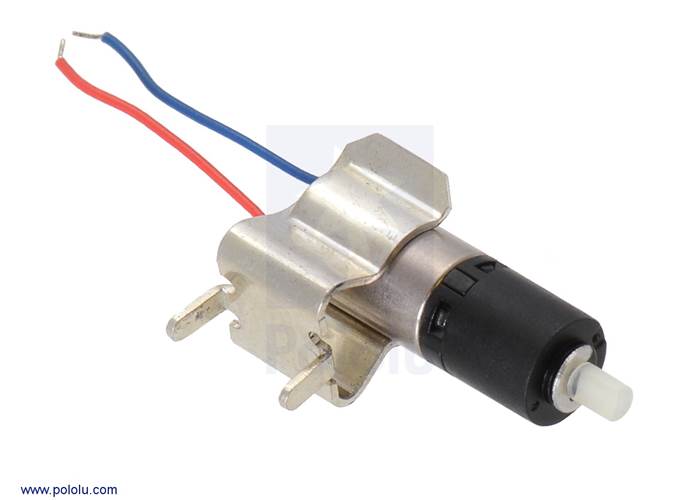

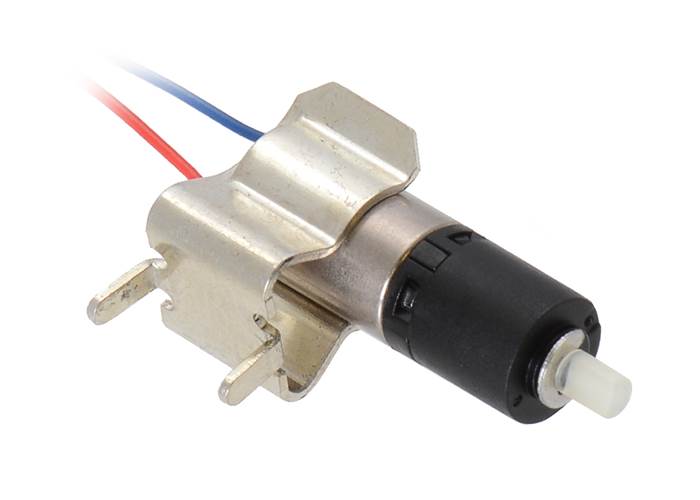

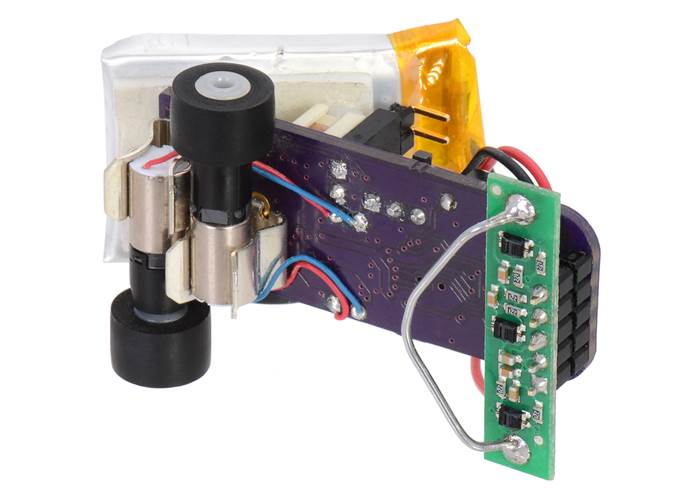

261 sub-micro plastic planetary gearmotor being held by a 14″ (6 mm) fuse clip
|Size:||6D × 16L mm|
|Shaft diameter:||2 mm|
|Free-run speed @ 6V:||2500 rpm|
|Free-run current @ 6V:||35 mA|
|Stall current @ 6V:||400 mA|
|Stall torque @ 6V:||1.5 oz·in|
