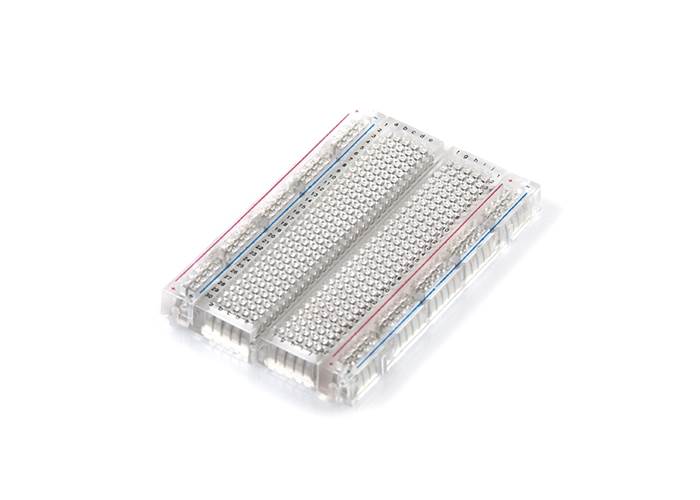

Breadboard - Translucent Self-Adhesive (Clear)

400 Point breadboard made from translucent plastic so you can see what is inside. Features 2 power rails, 30 x 10 holes.

AUD$ 7.95

In stock in Australia

Shipping from $2.90

+59 more from our supplier in 7-10 days

Our Code: SKU-000458

Supplier Link: [SparkFun MPN:9567]


Description

Description: Ever wonder what goes on inside these things? Well this clear bread board might enlighten.

Beyond the clear plastic, this is really just a regular, solderless breadboard. It has 2 power buses, 30 columns, and 10 rows - a total of 400 tie in points. All pins are spaced by a standard 0.1". The two sets of five rows are separated by about 0.3", perfect for straddling a DIP package over. The board accepts wire sizes in the range of 29-20AWG.

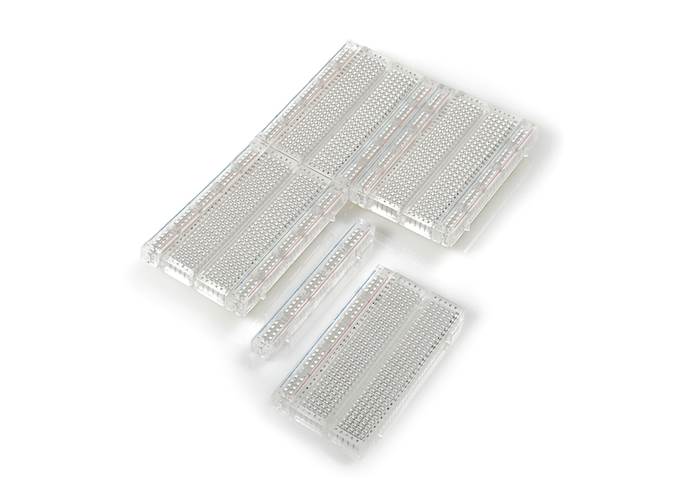

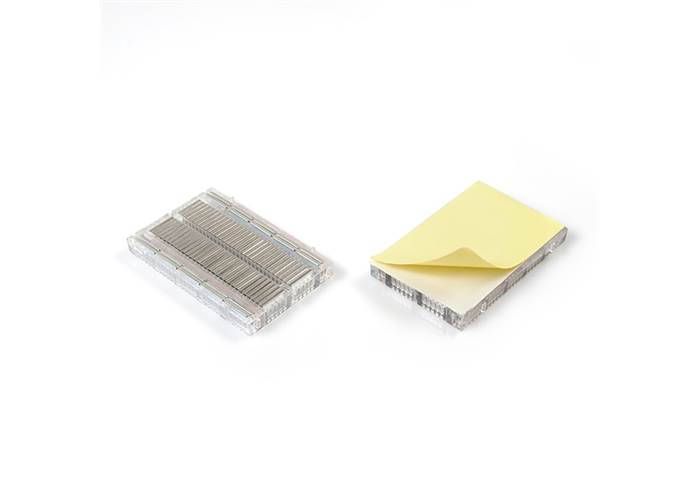

This board also has a self-adhesive on the back. The boards also have interlocking parts, so you can hook as many together as you’d like.

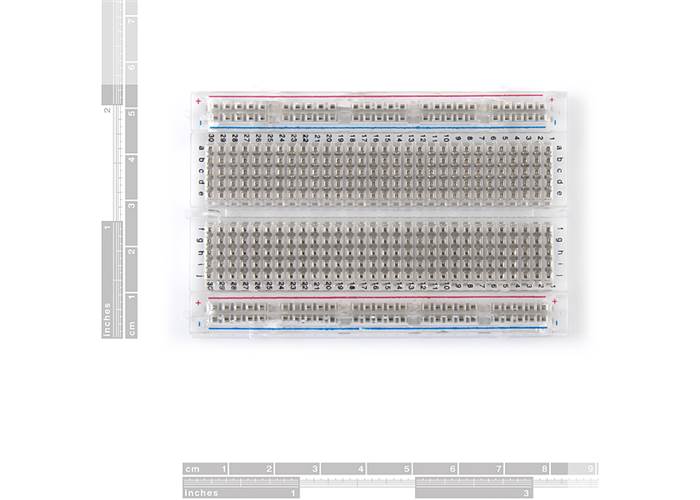

Dimensions: 3.29 x 2.15 x 0.33" (83.5 x 54.5 x 8.5mm)
