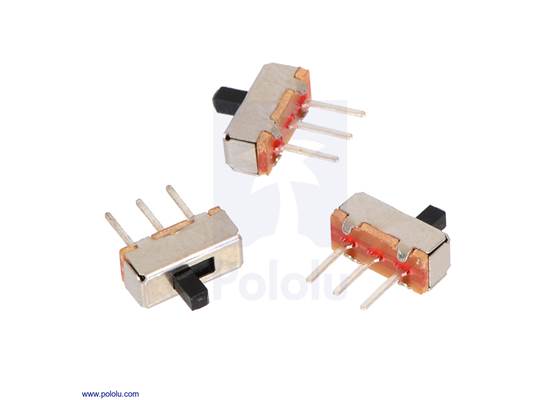

Mini Slide Switch: 3-Pin, SPDT, 0.3A (3-Pack)

These small single-pole, double-throw (SPDT) slide switches are rated for 300 mA at 50 VDC and make great on/off power switches for low power electronics. They can also be used as a convenient way to choose between two analogue or digital input signals.

AUD$ 1.90

In stock in Australia

We can ship 862 more in 7 days

Our Code: SKU-002574

Supplier Link: [Pololu MPN:1408]


Description

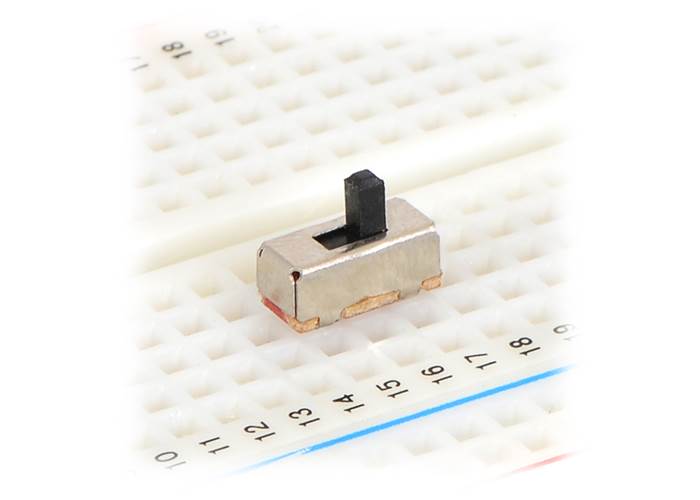

Mini slide switch in a solderless breadboard

These small single-pole, double-throw (SPDT) slide switches are rated for 300 mA at 50 VDC and have a 0.1″ pin spacing that works with standard solderless breadboards. Used alone, they make great on/off power switches for low power electronics or offer a convenient way to switch between two analogue or digital input signals. The switch can also be combined with a MOSFET to make a higher-power switch (see our Mini MOSFET Slide Switch with Reverse Voltage Protection for an example using a smaller, surface-mount slide switch). They are sold in packs of 3, so ordering one of this product gets you three switches.

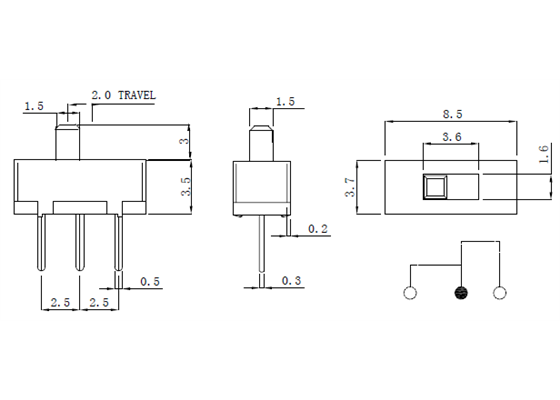

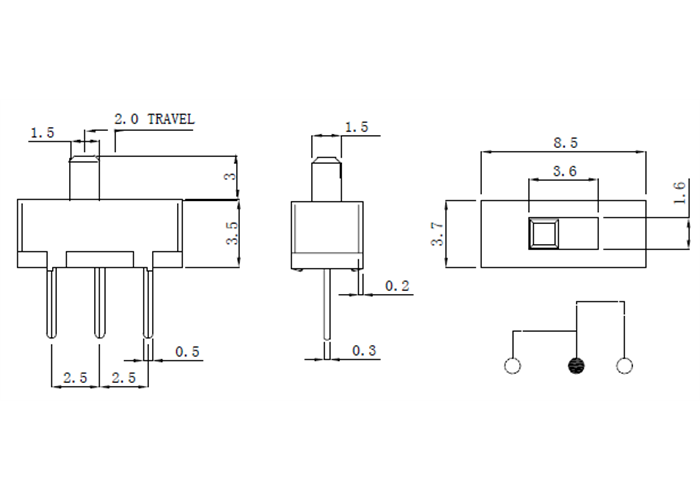

Mini slide switch dimensions (in mm).
