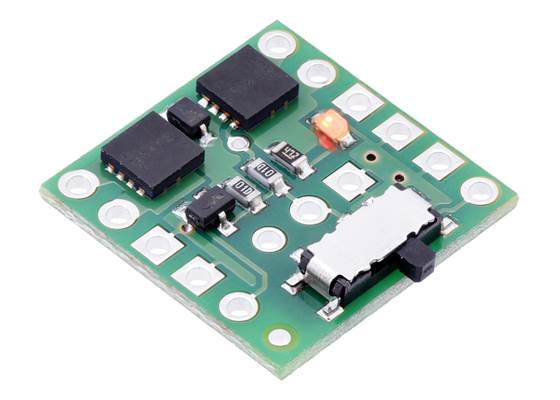

Mini MOSFET Slide Switch with Reverse Voltage Protection, LV

This breadboard-compatible module is an alternative to bulky power switches. It uses a small integrated slide switch to control a high-side power MOSFET that can deliver continuous currents up to around 6 A at 2 V to 20 V .

AUD$ 6.95

Special Order

Shipping from $2.90

+294 more from our supplier in 7-10 days

Our Code: MCU-60171

Supplier Link: [Pololu MPN:2810]

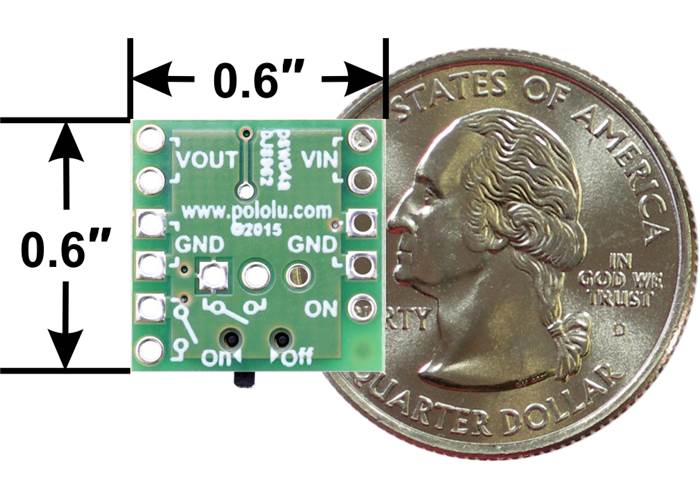

Mini MOSFET Slide Switch with Reverse Voltage Protection, bottom view with dimensions

This product is a power switch implemented as a pair of P-channel MOSFETs configured as a high-side switch with reverse voltage protection and controlled by a micro slide switch. Because the main current does not go through the controlling mechanical switch, a variety of switches can be used without concern for the current they can carry. For example, a small slide or toggle switch can be mounted conveniently on a control panel with thin wires running to it, while the main power path can be shorter and with thicker wires. Pushbutton or tactile switches can also be used for momentary switching applications.

Unlike the Pololu Pushbutton Power Switches, which can lose their state when power is disconnected and reapplied, the conducting state of the MOSFET Slide Switches is determined only by the physical control switch (or a signal supplied to the “ON” pin), independent of power applied to the board. This can make them more appropriate for applications where the supplied power may be intermittent.

Two versions of the MOSFET slide switches are available:

The primary difference between the units is the MOSFET used, which sets the operating range and performance of the units:


Absolute max voltage: 20 V 40 V
Recommended operating voltage: 1.8 V to 16 V 4.5 V to 32 V
MOSFET combined on resistance (max) 26 mΩ @ 1.8 V
16 mΩ @ 4.5 V 90 mΩ @ 4.5 V
  50 mΩ @ 10 V
Continuous current at 55°C(1) 3.0 A 2.0 A
Continuous current at 150°C(1) 6.0 A 4.3 A
Maximum current 12 A 7.2 A
Current consumption in on state(2) ~210 μA/V ~65 μA/V
LED colour red green
Size 0.6″ × 0.6″ × 0.1″
Weight 0.6 g

1 With ambient temperature of 22°C in still air.

2 On state current is dominated by indicator LED; current is approximately proportional to input voltage.

Using the MOSFET Slide Switch

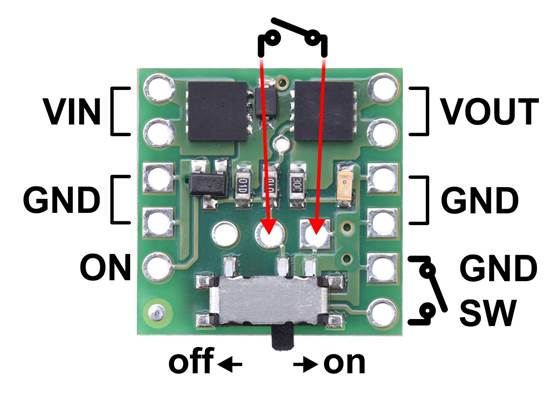

Pinout diagram of Mini MOSFET Slide Switch with Reverse Voltage Protection

In the most basic application, power can be applied to the VIN and ground pins, with the on-board mini slide switch controlling power on the VOUT pins. To use an alternate SPST switch to control the MOSFETs, set the on-board slide switch to the off position and connect the alternate switch between ground and the switch control terminal, which is accessible both in the centre of the board and along the side. The following example shows a larger slide switch soldered directly to the three through-hole pins in the centre of the board:

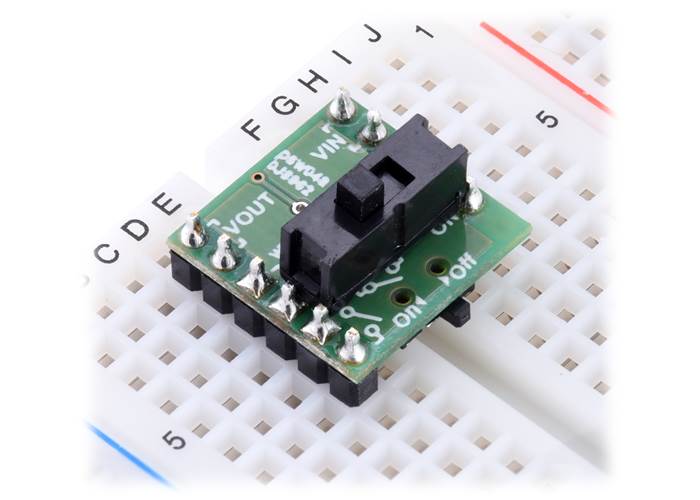

An example of using a different through-hole slide switch with the Mini MOSFET Slide Switch with Reverse Voltage Protection

If the physical switch is in the “off” position, the switch state can also be controlled by a digital signal (e.g. from a microcontroller) via the “ON” control pin. Driving the “ON” pin low (or leaving it disconnected) will leave the switch off; driving the pin beyond approximately 1 V will turn the switch on. The maximum voltage for the “ON” pin is 30 V, independent of the switch voltage (VIN).

The MOSFET Slide Switch is compatible with solderless breadboards and perforated printed circuit boards with standard 0.1″ spacing. For such applications, the included male header pins can be soldered to the switch PCB. Alternatively, wires can be soldered directly to the switch PCB for non-breadboard applications. For high-current applications, make sure that the wires can safely carry the current. Two pads/pins are provided for each of the power nodes, and multiple pads should be used for applications drawing over 5 A.

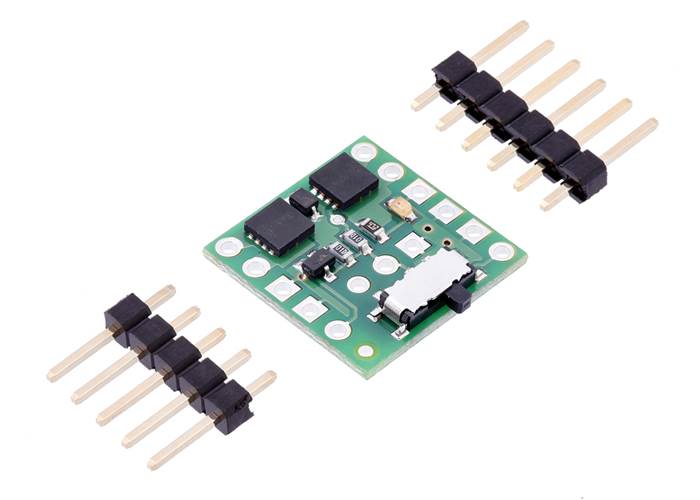

Mini MOSFET Slide Switch with Reverse Voltage Protection (LV) with included hardware

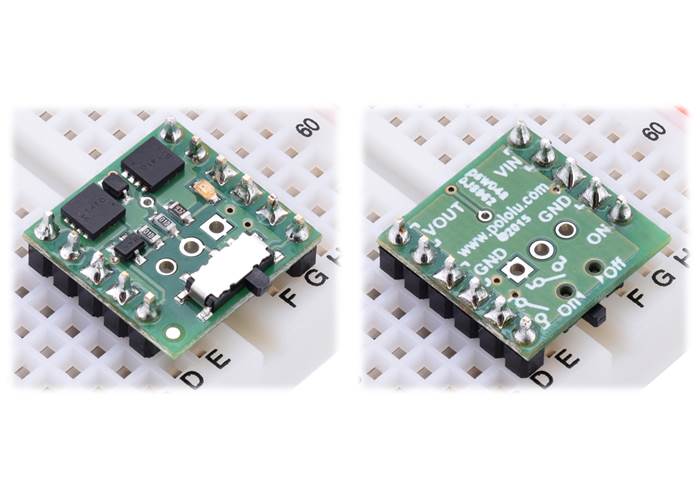

Two possible orientations for using the Mini MOSFET Slide Switch in a breadboard

Thermal and power dissipation considerations

Because MOSFETs in the on state are effectively resistive, the power heating the board is proportional to the square of the current flowing through it. The comparison table near the top of this page shows typical currents that heat the MOSFETs to 55°C, where the MOSFETs start being noticeably warm but are still generally safe to touch, and currents that heat the MOSFETs to 150°C, the absolute limit for the MOSFETs. With adequate cooling, or for brief periods if the MOSFETs are not hot to begin with, currents up to the listed maximums are attainable.

Schematic diagram

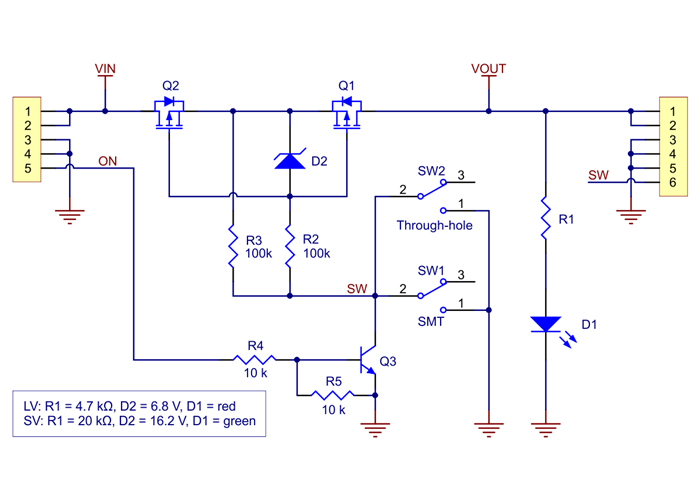

Schematic diagram of MOSFET Slide Switch with Reverse Voltage Protection

This diagram is also available as a downloadable PDF (283k pdf).




Size: 0.6″ × 0.6″ × 0.1″1
Weight: 0.6 g2

General specifications

Current rating: 6 A3
Minimum operating voltage: 2 V
Maximum operating voltage: 20 V4
Reverse voltage protection?: Y

Identifying markings

PCB dev codes: psw04a
Other PCB markings: 0J8962
LED colour: red


This does not include the slide switch lever, which extends past the edge of the board by approximately 0.04″ (1 mm).
Without included optional headers.
Continuous, without exceeding 150°C.
Recommended maximum is 16 V; for higher voltages, consider using the SV version.
