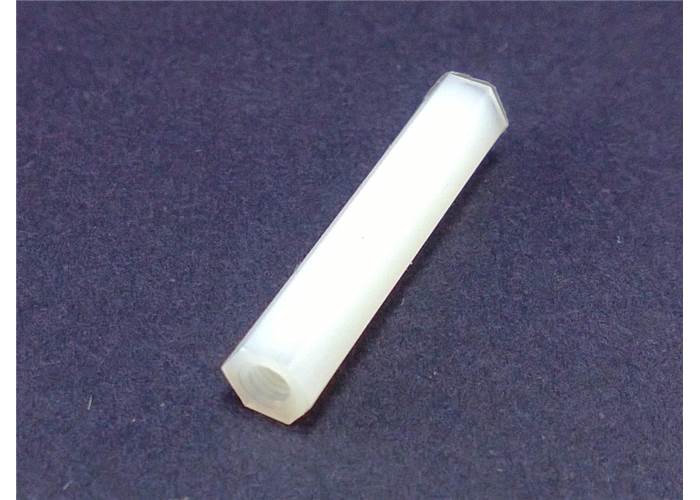

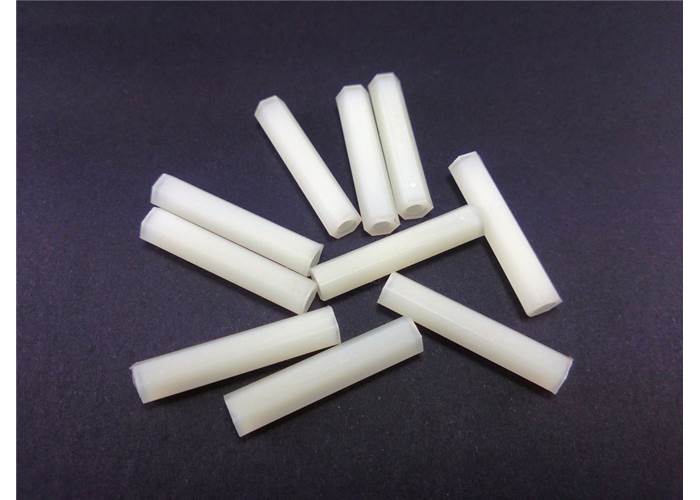

Standoff F-F 10-Pack, 30mm Nylon

AUD $3.20

In Stock: Ships Today

Back orders: Ship in 3 weeks

Our Code: MEC-30139

These Nylon hexagonal female-female standoffs keep parts spaced 30mm apart and are great for securing microcontrollers and other boards to robot chassis. The stand-offs have M3 tapped holes at both ends and the hexagonal shape makes it easy to hold them when securing with standard M3 screws.

Nylon spacers are great for mounting electrical components because they are non-conductive, strong and lightweight. We also carry M3 screws in a 10 pack to suit these spacer as shown in the picture below. Note that 2 packs are needed per 1 pack of standoffs.

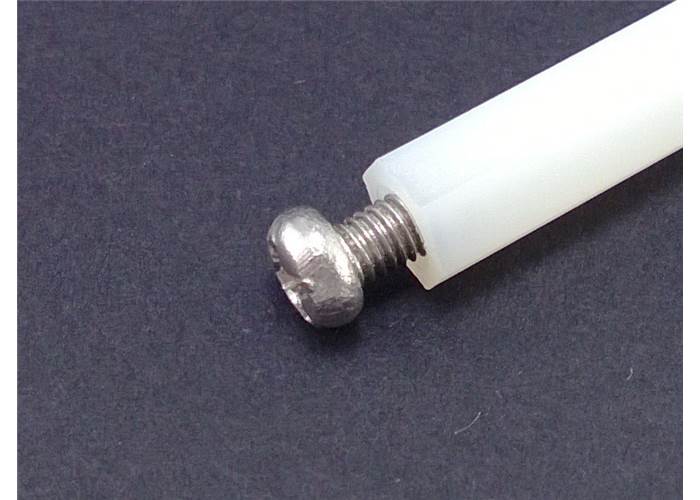

Nylon F-F standoff with M3 screw

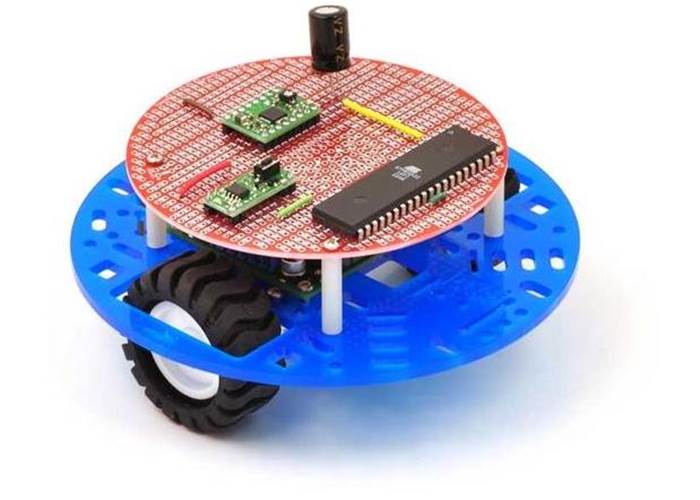

Nylon spacers mounting a PCB on a chassis



Nylon F-F standoff with M3 screw

Nylon spacers mounting a PCB on a chassis

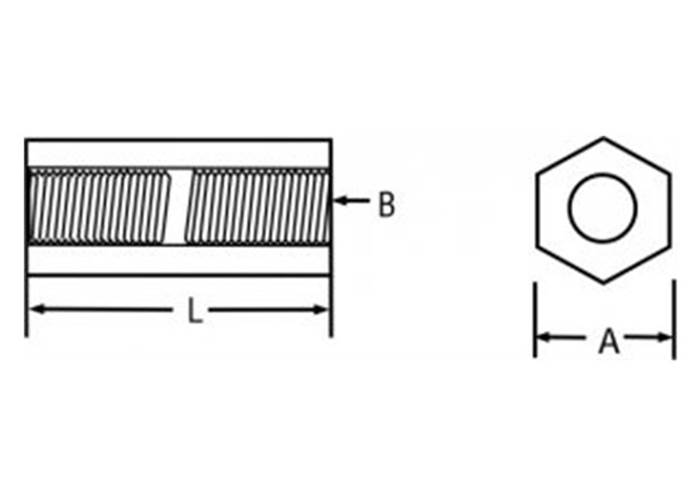

Nylon Standoff - Dimensions

Nylon Standoff - Dimensions

A: 5.6mm

B: M3

L: 30mm
