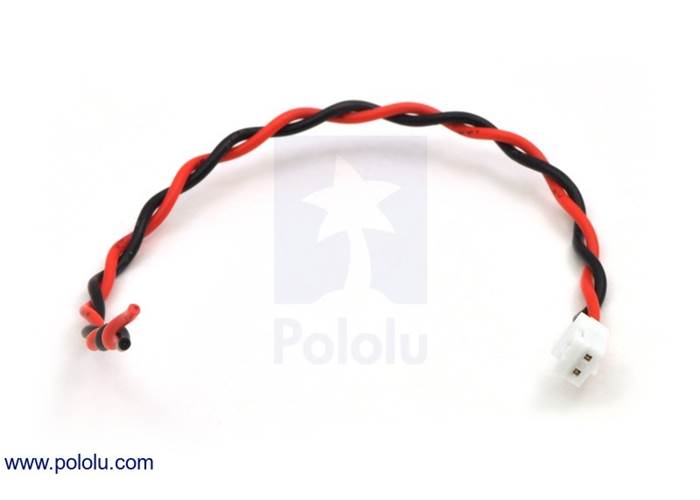

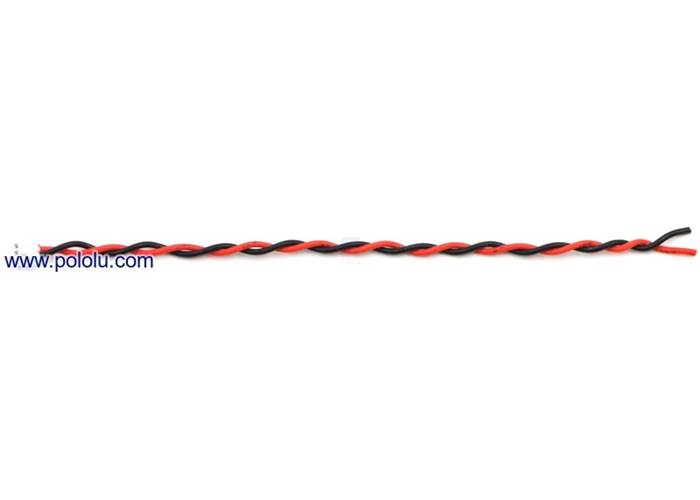

This 14 cm (5.5″) cable has two 26 AWG conductors with a 2mm-pitch 2-pin female JST PH-style connector. The other ends of the wires are unterminated; they can be cut to length to match your application. The red and black wires are twisted together to reduce noise.
In stock in Australia
Shipping from $2.90
+1038 more from our supplier in 7-10 days
Our Code: SKU-002498
Supplier Link: [Pololu MPN:1116]
This 14 cm (5.5″) cable has two 26 AWG conductors with a 2mm-pitch 2-pin female JST PH-style connector. The other ends of the wires are unterminated; they can be cut to length to match your application. The red and black wires are twisted together to reduce noise.
Note: This cable has the red wire on pin 1 and black wire on pin 2, which differs from the color order convention followed by most of our other JST PH cables.
This 14 cm (5.5″) cable has two 26AWG conductors with a 2mm-pitch 2-pin female JST PH-style connector. The other ends of the wires are unterminated; they can be cut to length to match your application. The red and black wires are twisted together to reduce noise.

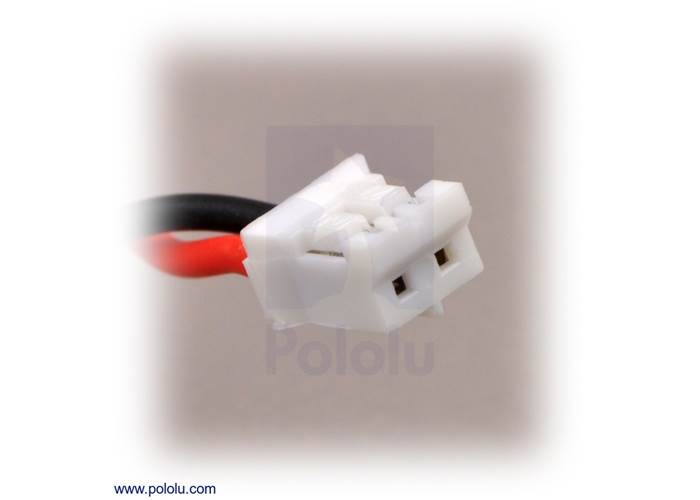

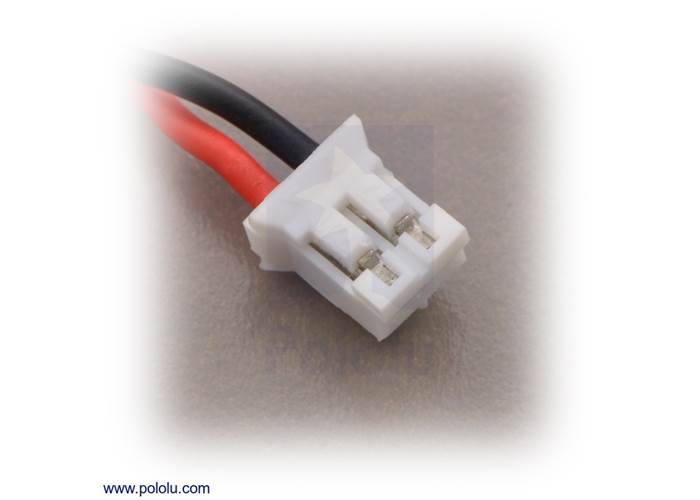

2-pin female JST connector. |
2-pin female JST connector. (1) |
 |
For a 2-pin cable with a larger connector (2.5mm pitch) that will work with standard 0.1", see our female JST XH-style cable.
You can use our male or female crimp pins and a 0.1″ 2×1 crimp connector housing to make a connector for the unterminated end of the cable that is compatible with standard solderless breadboards and perfboards.
| Pins: | 1×2 |
|---|---|
| Pitch: | 2 mm |
| Length: | 14 cm |
| Weight: | 1 g |
| Gender: | Female-unterminated |
|---|---|
| Wire gauge: | 24 AWG |
| Current rating: | 2 A |
| Voltage rating: | 100 V |
| Connector: | JST PH-type |
