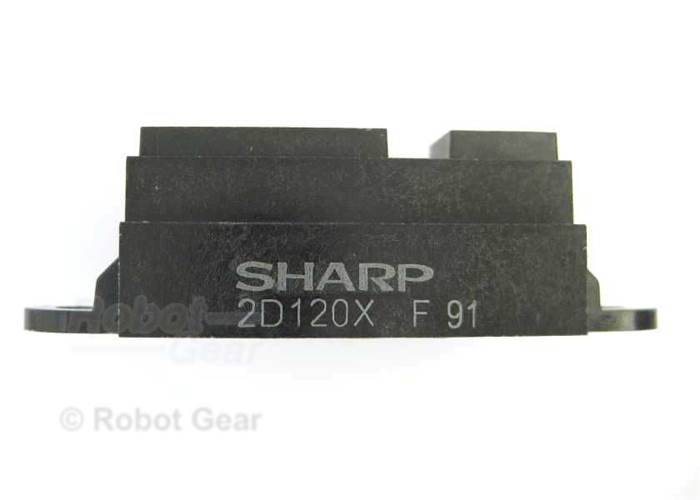

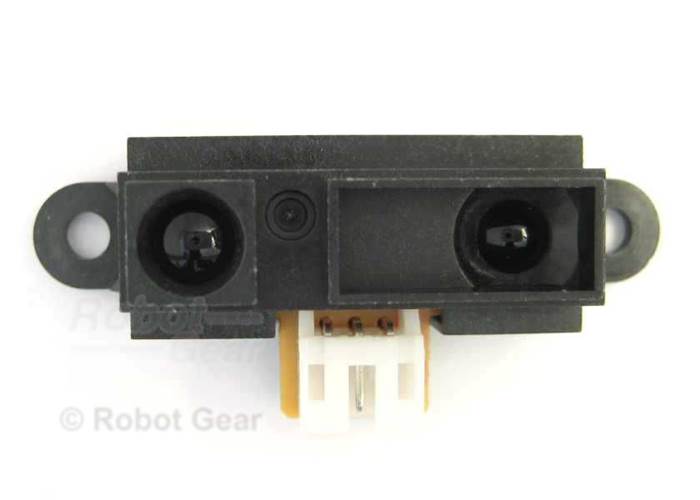

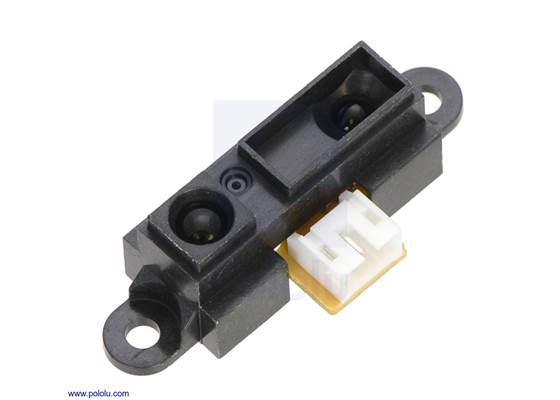

Sharp Analog IR Distance Sensor GP2Y0A41SK0F (GP2D120) (4cm-30cm)

AUD $15.95

In Stock: Ships Today

Backorders: Ship 406 units in 7 days

Our Code: SEN-10057

Supplier: [Pololu MPN:2464]

Ideal for accurate short range detection the Sharp GP2Y0A41SK0F infrared (IR) sensor ranges from a close up 4cm through to 30cm. Perfect as a reliable contact free bumper with advanced warning.

This is the newer version of the GP2D120 line of sensors. It features the same performance and dimensions as the now discontinued GP2D120XJ00F sensor but with a quicker sensing time.




Overview

This is a very easy to use sensor. Supply power and the sensor outputs an analog voltage related to the distance. You do not need any extra control algorithms or circuitry. The GP2Y0A41SK0F is the ROHS compliant replacement for the GP2D120.

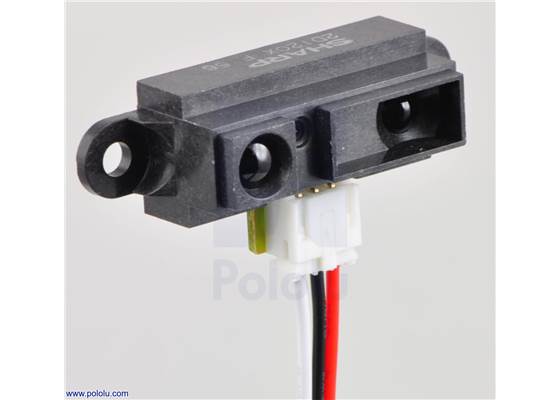

We recommend the 3-Pin JST connector to go with this sensor to make hooking it up to your project a snap. The connector on these Sharp sensors is smaller than the normal 2.54mm header spacing expected.

3 Pin JST connector image

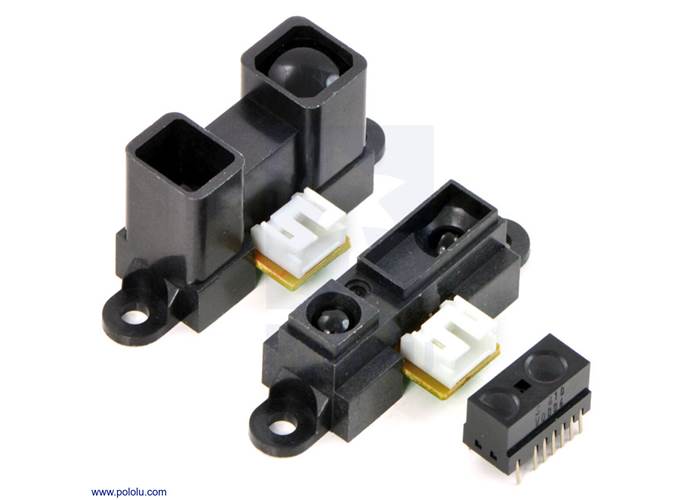

The Sharp GP2Y0A41SK0F is has a closer detection limit than the GP2Y0A02YK0F and GP2Y0A21YK0F sensors. This enables it to be used effectively as a contact free bumper with enough detection distance to slow down before a crash.

Like the  GP2Y0A02YK0F and GP2Y0A21YK0F the GP2Y0A41SK0F uses control circuitry to compensate for ambient conditions and optical triangulation to determine distance which is far more robust than simply measuring the intensity of returned infrared light.

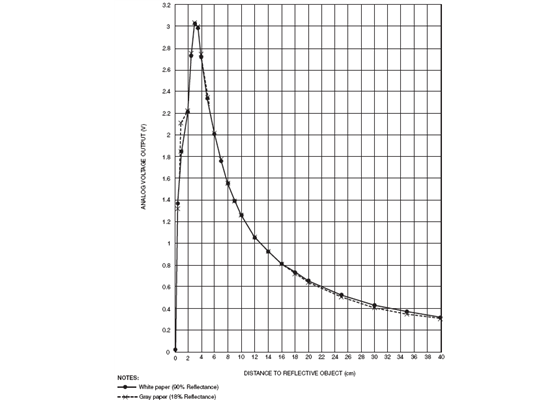

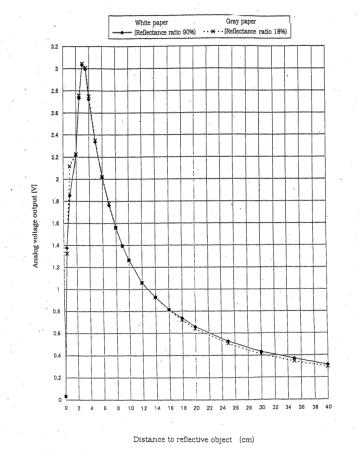

Here is a chart of the output voltage as a function of distance

 GP2D120XJ00F Distance Voltage Chart

Despite the large difference between the reflectivity of the gray and white paper the sensor is still able to output reliable readings. Even at close distances the sensor still gives good readings.


Features

  • Distance measuring range : 4 to30cm
  • Analog output type
  • Package size : 29.5×13×13.5 mm (does not include screw hole flanges or JST connector)
  • Consumption current : Typ. 30 mA
  • Supply voltage : 4.5 to 5.5 V
