Pololu 25D mm Metal Gearmotor Bracket Pair

AUD $9.95

In Stock: Ships Today

Back orders: Ship 1046 units in 7 days

Our Code: MEC-30197

Supplier: [Pololu MPN:2676]

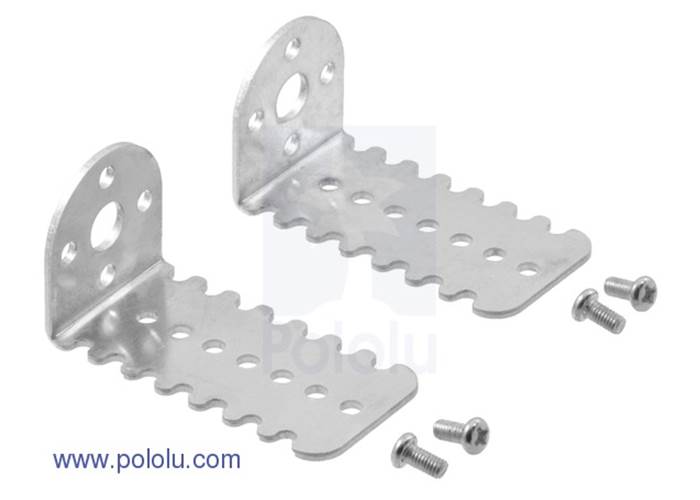

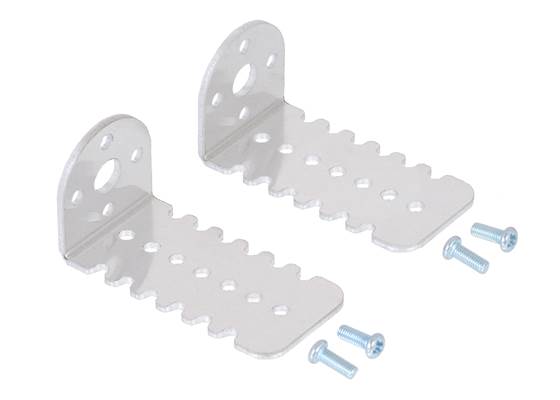

These aluminum gearmotor brackets let you securely mount Pololu’s 25D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes four M3 screws for securing the motor to the bracket. Each bracket also features seven mounting holes and fourteen mounting slots for M3 or #4-size screws (not included) along each edge, giving you a variety of mounting options.

These light-weight brackets (about 8.5g each) are specifically designed for the 34:1, 75:1 25D metal gearmotors.

Each bracket features seven mounting holes and fourteen mounting slots for M3 or #4-size screws along each edge, giving you a variety of mounting options. A total of four M3 screws (two for each bracket) are included for securing the motor to the bracket.

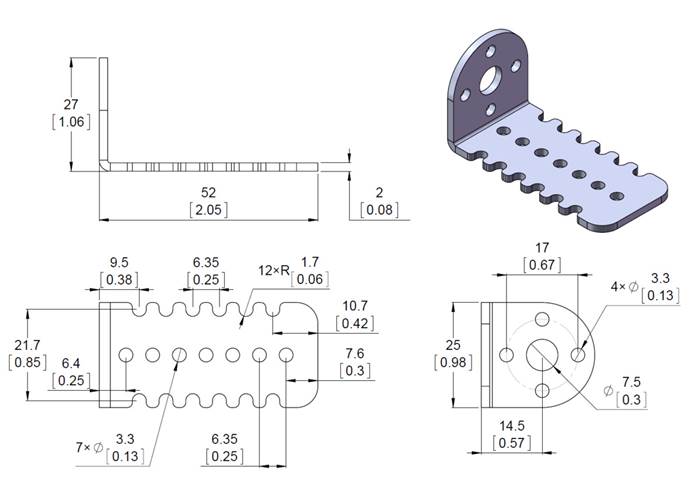

Dimension diagram Pololu 25D mm Metal Gearmotor Bracket

Dimension diagram Pololu 25D mm Metal Gearmotor Bracket
