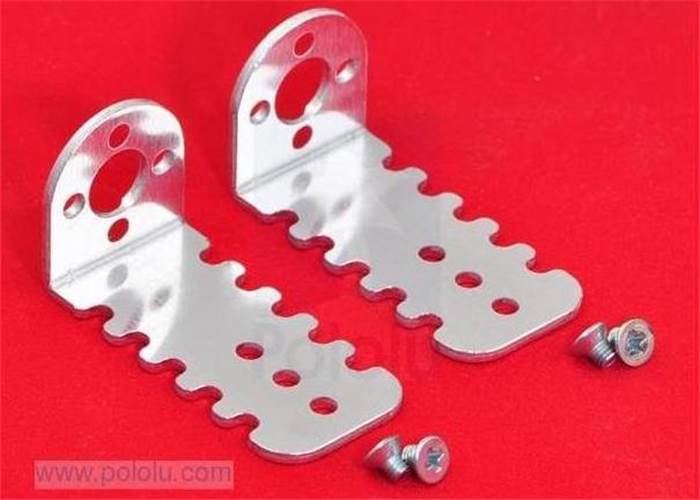

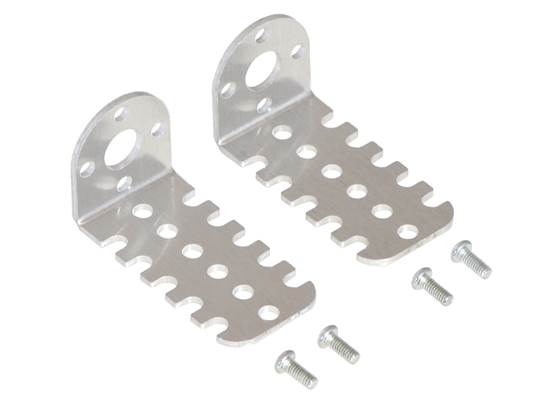

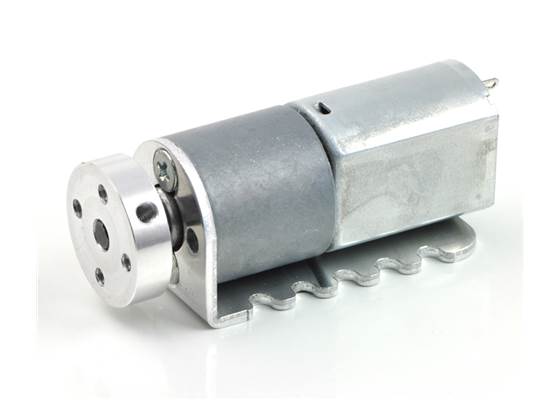

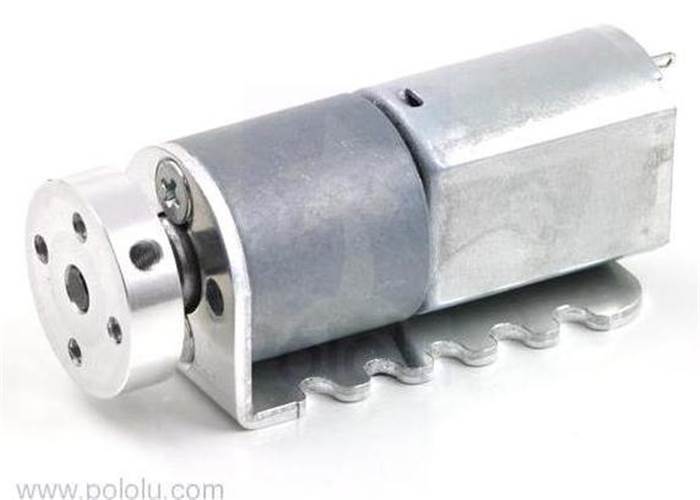

These aluminum gearmotor brackets let you securely mount Pololu’s 29:1, 73:1 20D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes two M2.5 screws for securing the motor to the bracket. Each bracket also features three mounting holes and ten mounting slots for M3 or #4-size screws (not included), giving you a variety of mounting options.
Special Order
Shipping from $7.90
+362 more from our supplier in 7-10 days
Our Code: MEC-30085
Supplier Link: [Pololu MPN:1138]

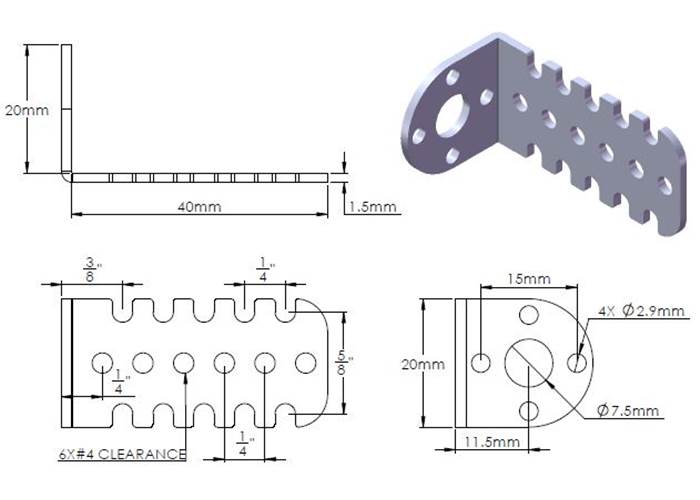

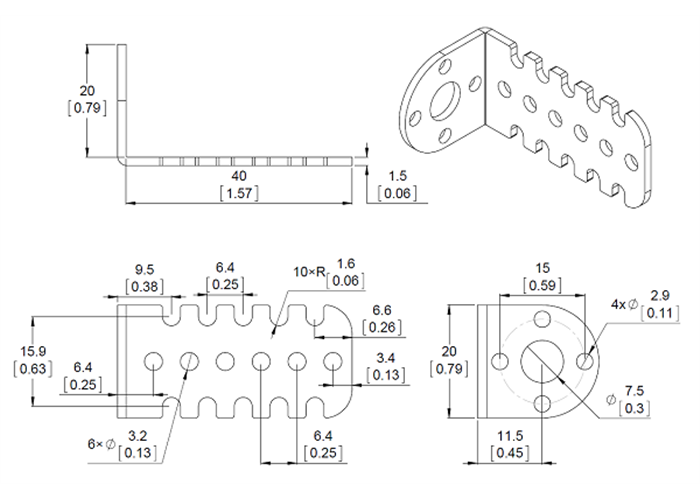

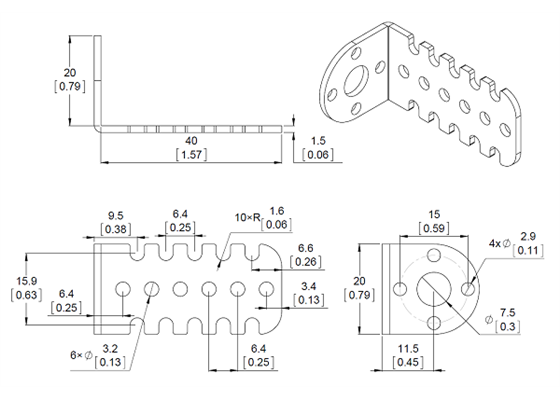

These light-weight brackets (under 5 g each) are specifically designed for the 29:1, 73:1 20D metal gearmotors. Each bracket features three mounting holes and ten mounting slots for M3 or #4-size screws, giving you a variety of mounting options. A total of four M2.5 screws (two for each bracket) are included for securing the motor to the bracket.
