Pololu 25D mm Metal Gearmotor Bracket Pair (Retired)

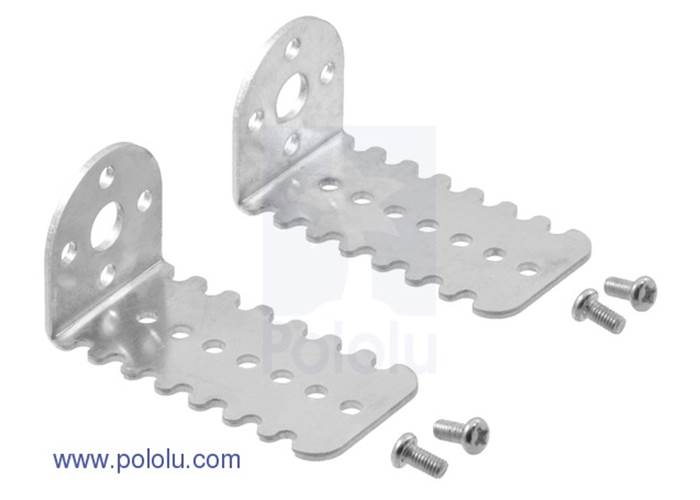

These aluminum gearmotor brackets let you securely mount Pololu’s 25D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes four M3 screws for securing the motor to the bracket. Each bracket also features seven mounting holes and fourteen mounting slots for M3 or #4-size screws (not included) along each edge, giving you a variety of mounting options.

Discontinued

No Stock Available

Our Code: MEC-30095

Supplier Link: [Pololu MPN:1569]

These light-weight brackets (about 6g each) are specifically designed for the 34:1, 75:1 25D metal gearmotors.

Each bracket features seven mounting holes and fourteen mounting slots for M3 or #4-size screws along each edge, giving you a variety of mounting options. A total of four M3 screws (two for each bracket) are included for securing the motor to the bracket.
