These lightweight aluminium brackets make it easy to mount and integrate the Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors into your project. The brackets are strong enough to hold their position, but they can also be bent by hand to different angles if the application calls for it.
In stock in Australia
Shipping from $2.90
+202 more from our supplier in 7-10 days
Our Code: MEC-30202
Supplier Link: [Pololu MPN:2677]
These lightweight brackets are made from 0.8mm-thick aluminium and are specifically designed to work with Sharp’s analogue GP2Y0A02, GP2Y0A21, and GP2Y0A41 distance sensors. Three versions are available: compact perpendicular and parallel versions, and a slightly larger but more versatile multi-option version that allows for mounting the sensor in either orientation along with greater flexibility in sensor placement relative to the mounting surface.
|
Pololu - Sharp GP2Y0A21 Distance Sensor mounted using a Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors – Parallel |
Pololu - Example mounting of a Sharp distance sensor using a modified Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors – Multi-Option |
Sharp GP2Y0A21 Distance Sensor mounted using a Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors – Perpendicular |
Family of brackets for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors

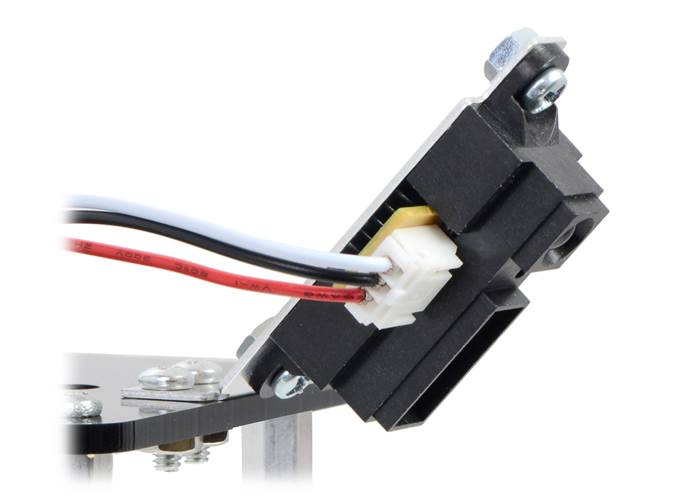

The brackets are strong enough to hold their default 90° bend, but they can be bent by hand to different angles if the application calls for it.
Example of the Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensor – Perpendicular bent to a different angle

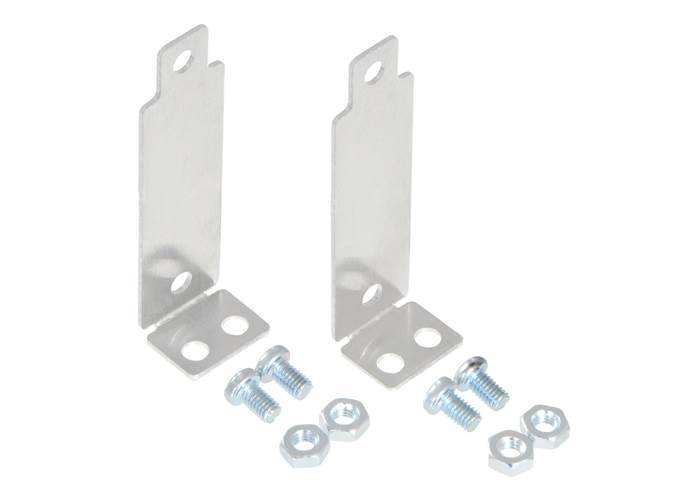

The brackets are sold in pairs, and four M3×5mm screws and nuts are included (two for each bracket) for securing the sensors to the brackets. The other side of each bracket has mounting options intended for use with #4 or M3 screws.
This compact version of the bracket allows for the sensor to be mounted in a tall and slender perpendicular orientation. For a slightly more compact solution, the sensor can also be mounted on the inside of the L-shaped bracket.
|

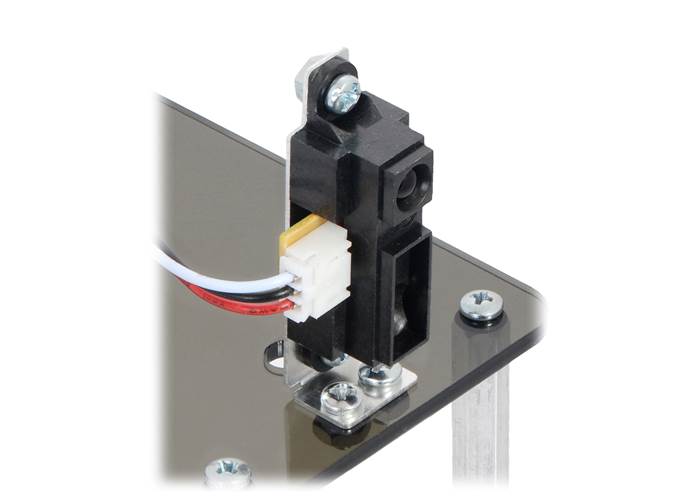

Sharp GP2Y0A21 Distance Sensor mounted using a Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors – Perpendicular |

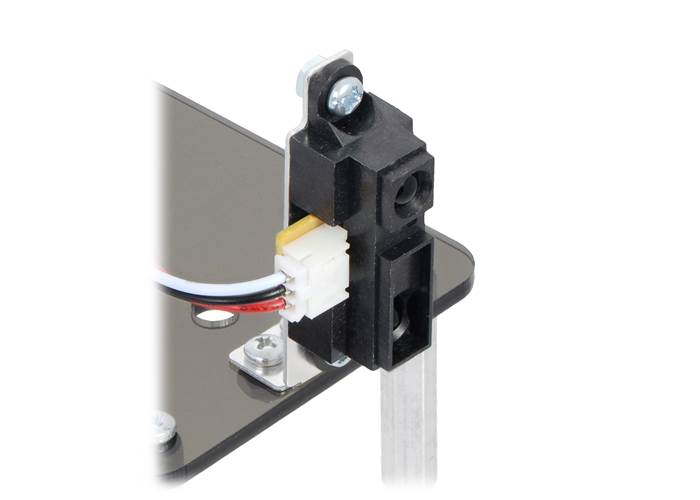

Alternate orientation for mounting a Sharp distance sensor using a Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors – Perpendicular |

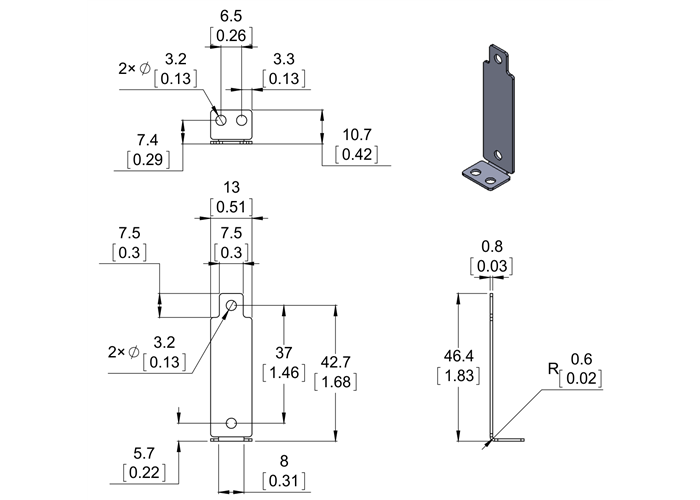

The following diagram shows the dimensions for the perpendicular bracket and is also available as a downloadable PDF (71k pdf).
![Dimension diagram of Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors – Perpendicular. Units are mm over [inches]](/cache/files/productimageoriginals/3200_dimension_diagram_of_bracket_for_sharp_gp2y0a02_gp2y0a21_and_gp2y0a41_distance_sensors_perpendicular_units_are_mm_over_inches_.png)

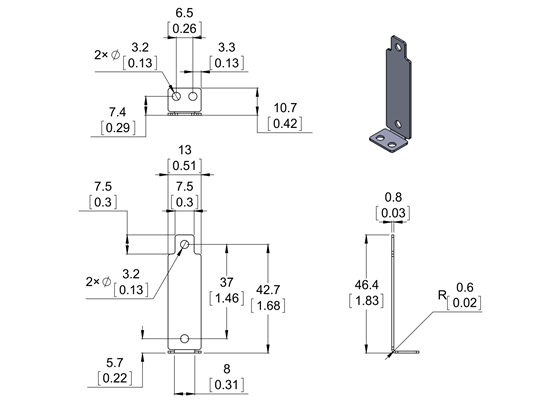

Dimension diagram of Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors – Perpendicular. Units are mm over [inches]
