FEETECH High-Torque Servo FS5115M

AUD $36.95

In Stock: Ships Today

Back orders: Ship 210 units in 7 days

Our Code: SKU-003980

Supplier: [Pololu MPN:3426]

The FS5115M is a standard-size analogue servo from FEETECH that has an all-metal gear train and delivers extra-high torque normally associated with much more expensive or larger servos. Servo horns and associated hardware are included. Key specs at 6 V: 0.16 sec/60°, 215 oz-in (15.5 kg-cm), 60 g.


Description

Overview

The FS5115M is a standard-size analogue servo from FEETECH can deliver more than twice the torque of our standard-size servos with plastic gears thanks to its powerful motor and all-metal gear train (if you need even more torque than this, check out the larger FT5335M giant servo). The output shaft is supported by two ball bearings for reduced friction. The FS5115M works with standard RC servo pulses, providing a running angle of approximately 180° over a servo pulse range of 500 µs to 2500 µs, and it has a 12″ (30 cm) cable that is terminated with a standard JR-style connector, which is Futaba-compatible.

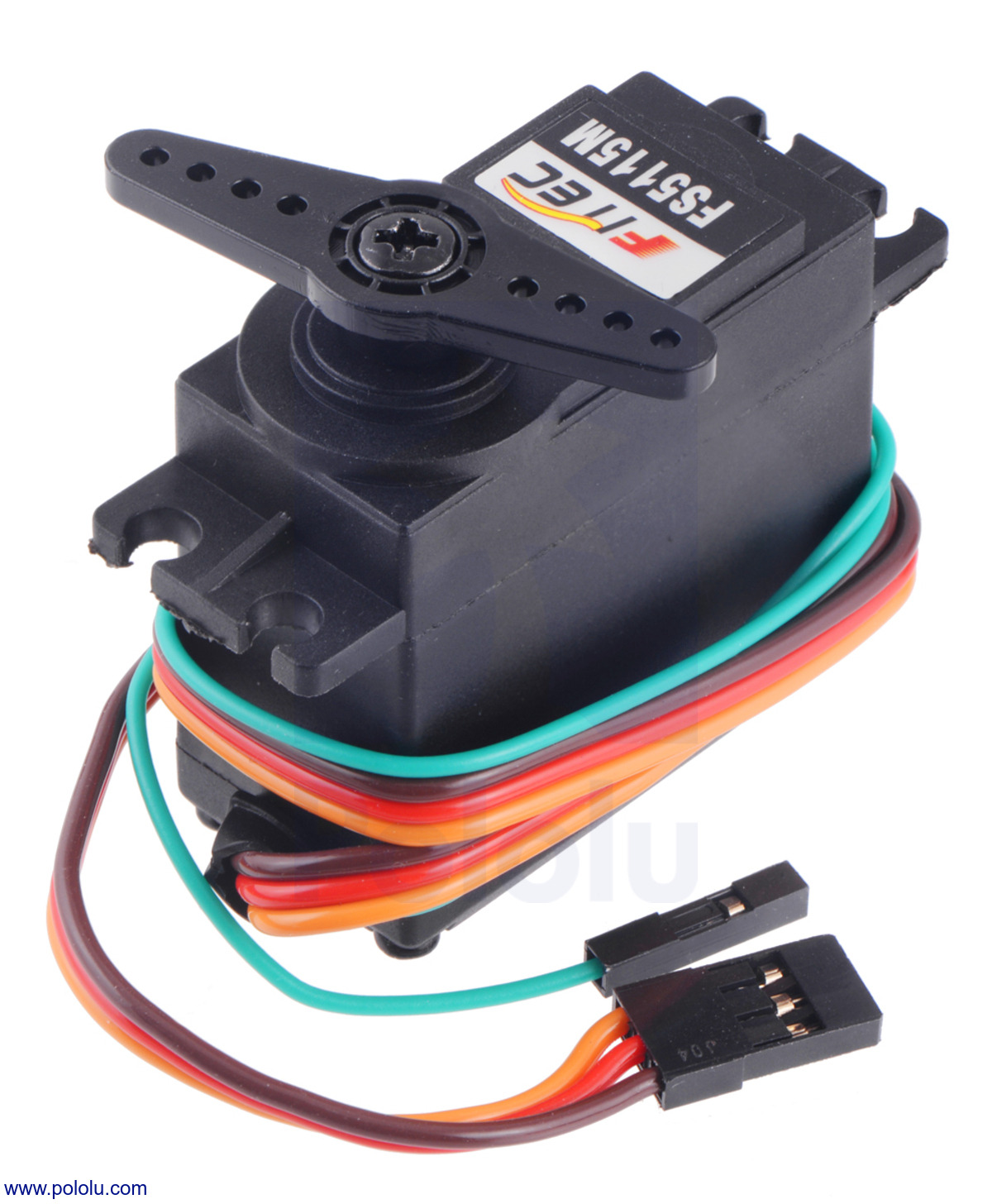

The servo cable is terminated with a Futaba-compatible JR-style connector.

The servo cable is terminated with a Futaba-compatible JR-style connector.

FEETECH High-Torque Servo FS5115M with included hardware (actual hardware might vary).

FEETECH High-Torque Servo FS5115M with included hardware (actual hardware might vary).

The picture below shows the all-metal gear train that helps the servo deliver such high torque:

The FEETECH High-Torque Servo FS5115M has an all-metal gear train and two ball bearings on the output.

The FEETECH High-Torque Servo FS5115M has an all-metal gear train and two ball bearings on the output.

You can find more information about this servo in its datasheet (133k pdf).

Note that, as with most hobby servos, stalling or back-driving this servo can damage it. This servo can draw bursts of current in excess of 3 A at 6 V, so please make sure you have an appropriate power supply. For comparison, a typical standard-size servo might draw around an amp when straining.

Comparison to the Power HD 1501MG high-torque servo

This servo is a lower-cost alternative to the 1501MG from Power HD, which has nearly identical dimensions and similar performance. The two servos should be generally interchangeable for most applications. The picture below shows both the FS5115M and the 1501MG side by side:

The FEETECH FS5115M and Power HD 1501MG servos have nearly identical dimensions and similar performance.

The FEETECH FS5115M and Power HD 1501MG servos have nearly identical dimensions and similar performance.


Specifications

Dimensions

Size: 40.8 × 20.1 × 38 mm
Weight: 60 g

General specifications

Digital?: N
Speed @ 6V: 0.16 sec/60°
Stall torque @ 6V: 15.5 kg·cm
Speed @ 4.8V: 0.18 sec/60°
Stall torque @ 4.8V: 14 kg·cm
Lead length: 12 in
Hardware included?: Y

Resources


FAQs

What are the three wires coming out of my servo?

Most standard radio control servos (and all RC servos we sell) have three wires, each a different colour. Usually, they are either black, red, and white, or they are brown, red, and orange/yellow:

  • brown or black = ground (GND, battery negative terminal)
  • red = servo power (Vservo, battery positive terminal)
  • orange, yellow, white, or blue = servo control signal line

Please check the specs for your servo to determine the proper power supply voltage, and please take care to plug the servo into your device in the proper orientation (plugging it in backwards could break the servo or your device).
