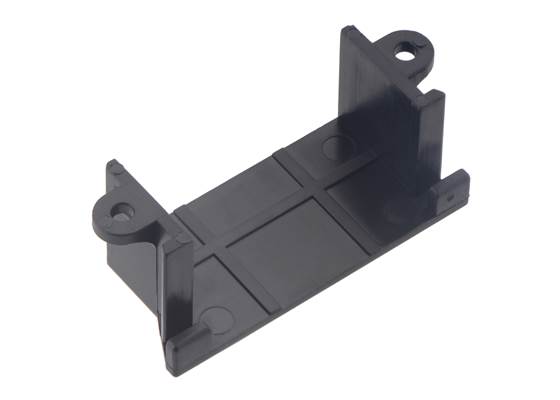

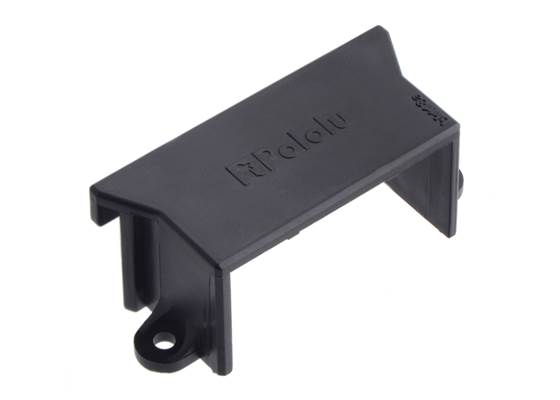

Mounting Bracket for Standard-Size Servos


Description

Overview

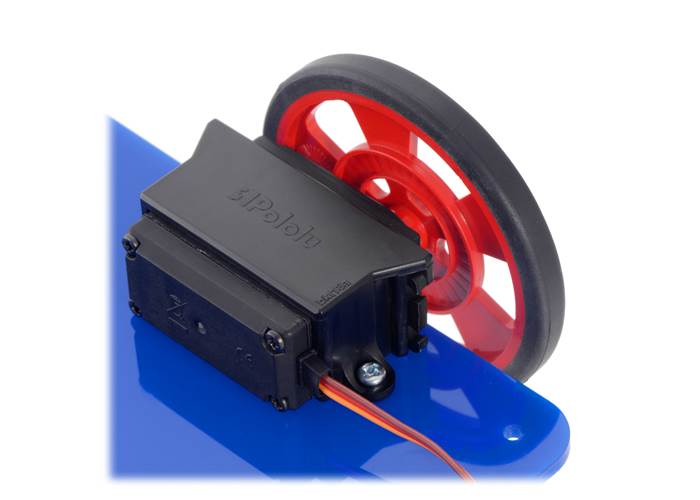

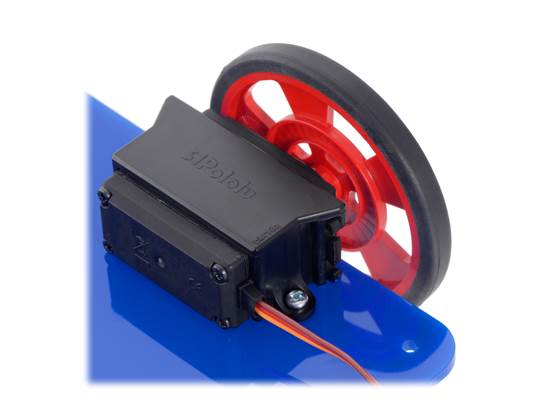

Rear view of Power HD Continuous Rotation Servo AR-3606HB and Solarbotics red servo wheel with Mounting Bracket for Standard-Size Servos.

Rear view of Power HD Continuous Rotation Servo AR-3606HB and Solarbotics red servo wheel with Mounting Bracket for Standard-Size Servos.

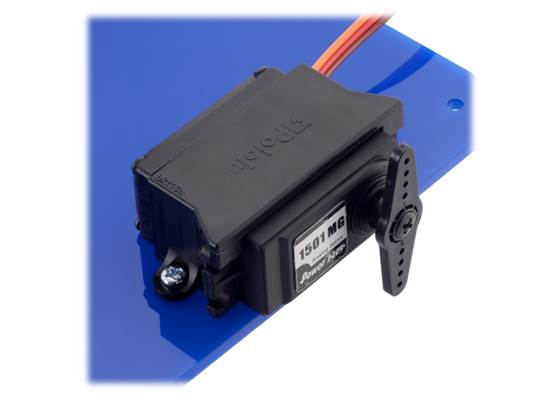

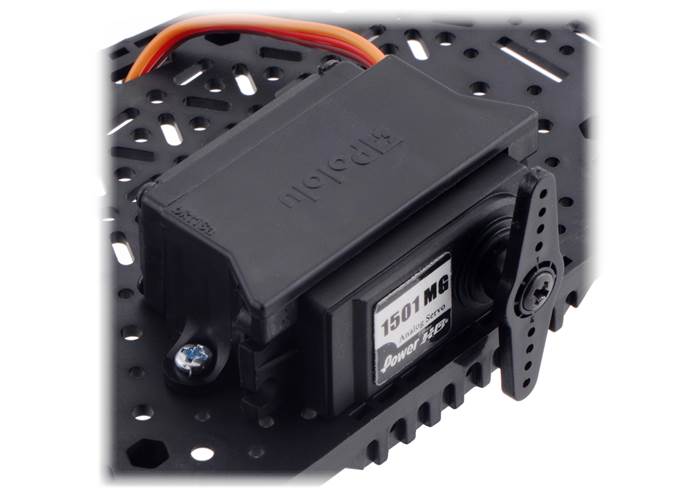

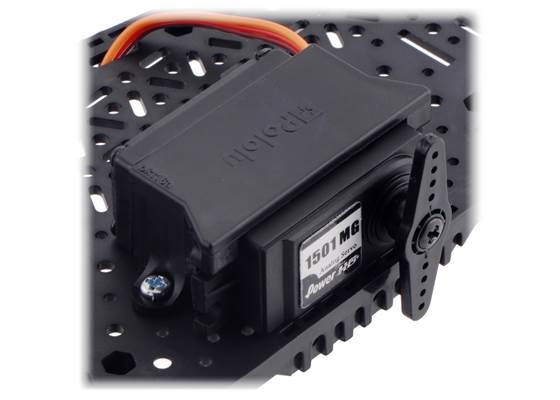

Power HD 1501MG servo with Mounting Bracket for Standard-Size Servos.

Power HD 1501MG servo with Mounting Bracket for Standard-Size Servos.

This plastic mounting bracket is designed for use with standard-size servos like the Power HD AR-3606HB continuous rotation servo and the FEETECH FS5103B standard servo. By clasping around the servo and capturing its mounting tabs, this bracket provides an easy way to mount a servo on its side. The mounting holes on the bracket are intended for use with M3 or #4-40 screws (not included). This bracket works with most standard-size servos. Please note that the mounting tabs on some servos are too thick to fit in the bracket without modification, so we recommend comparing your servo’s dimensions to the bracket’s dimensions below.

Dimensions

Dimension diagram of the Mounting Bracket for Standard-Size Servos. Units are mm over [inches].

This diagram is also available as a downloadable PDF (245k pdf)


Specifications

Dimensions

Weight: 5.5 g

General specifications

Colour: black

Identifying markings

Molded part dev codes: bkt18a
