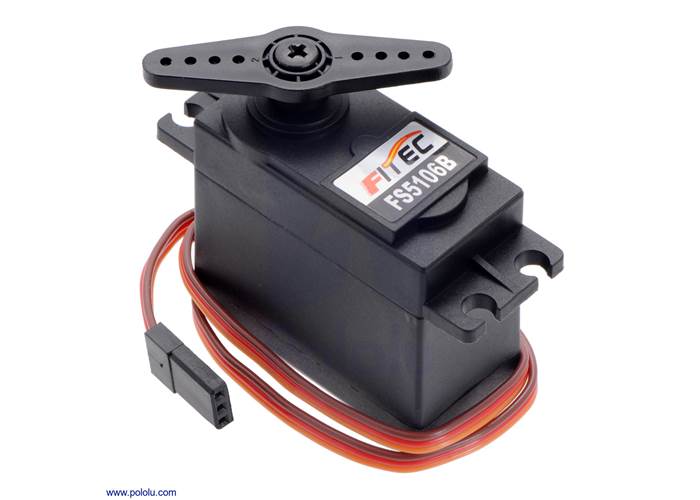

FEETECH Standard Servo FS5106B

AUD $21.95

Order As Required

Back orders: Ship 131 units in 7 days

Our Code: SKU-004431

Supplier: [Pololu MPN:3425]

The FS5106B is a general-purpose, low-cost standard analogue servo from FEETECH. Two ball bearings help reduce friction and improve performance. Servo horns and associated hardware are included. Key specs at 6 V: 0.16 sec/60°, 80 oz-in (6 kg-cm), 41 g.


Description

Overview

The FS5106B is a general-purpose standard-size analogue servo from FEETECH. The output shaft is supported by two ball bearings for reduced friction. The FS5103B works with standard RC servo pulses, providing a running angle of approximately 180° over a servo pulse range of 700 µs to 2300 µs, and it has a 12″ (30 cm) cable that is terminated with a standard JR-style connector, which is Futaba-compatible.

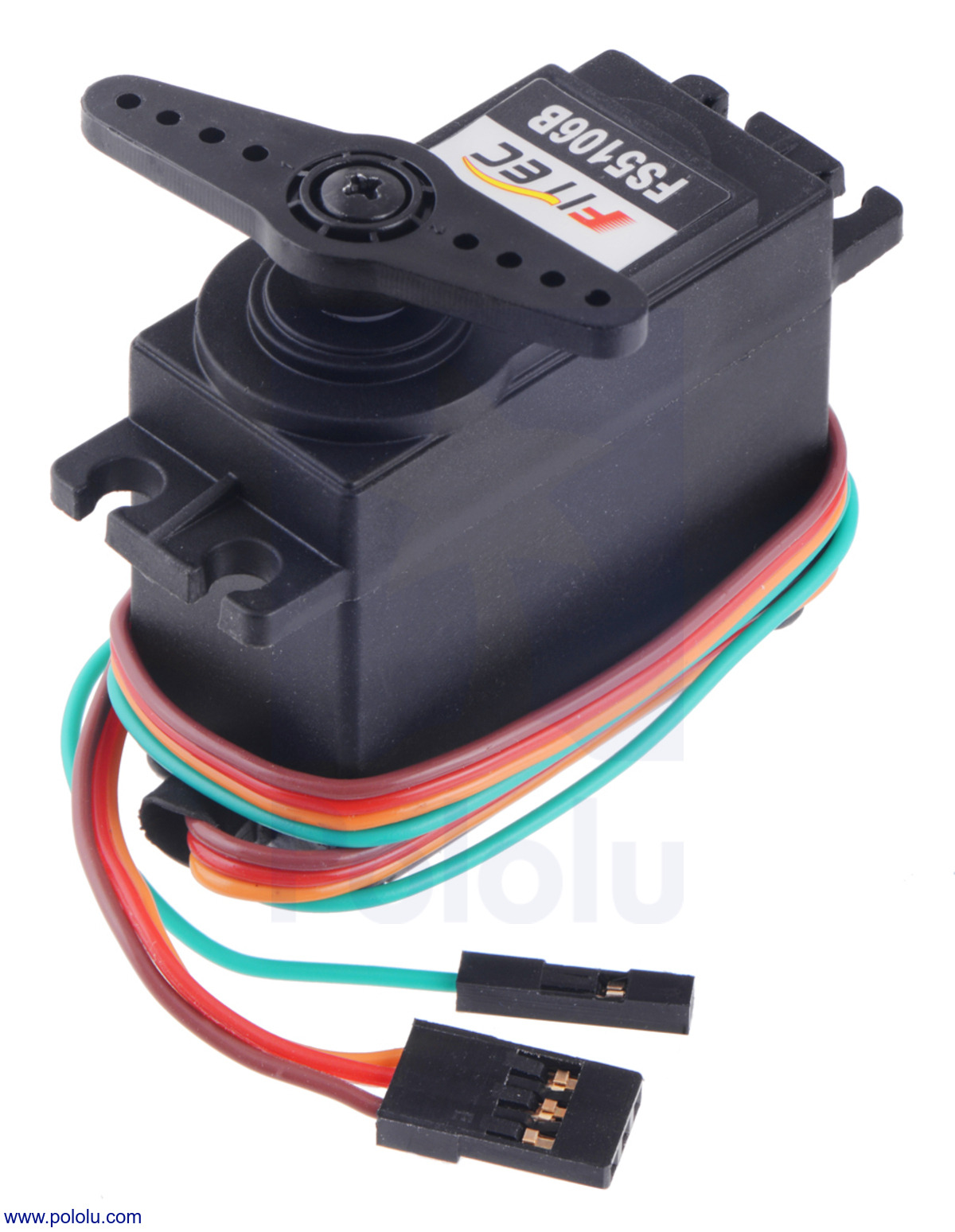

The servo cable is terminated with a Futaba-compatible JR-style connector.

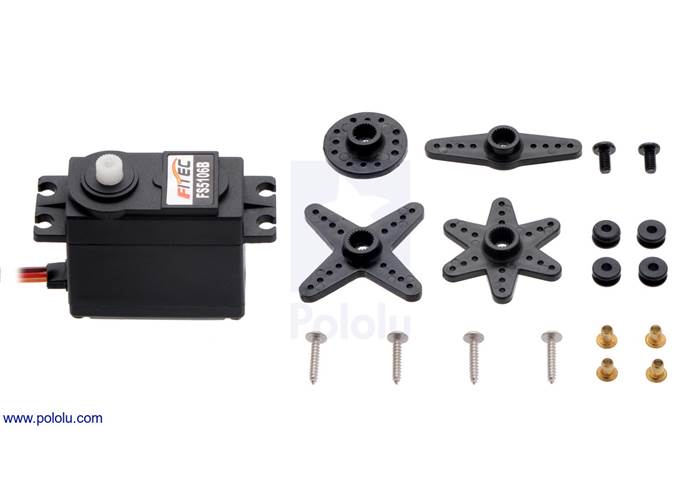

FEETECH Standard Servo FS5106B with included hardware (actual hardware might vary).

FEETECH Standard Servo FS5106B with included hardware (actual hardware might vary).

Note that, as with most hobby servos, stalling or back-driving this servo can damage it.

FS5106B vs FS5106R

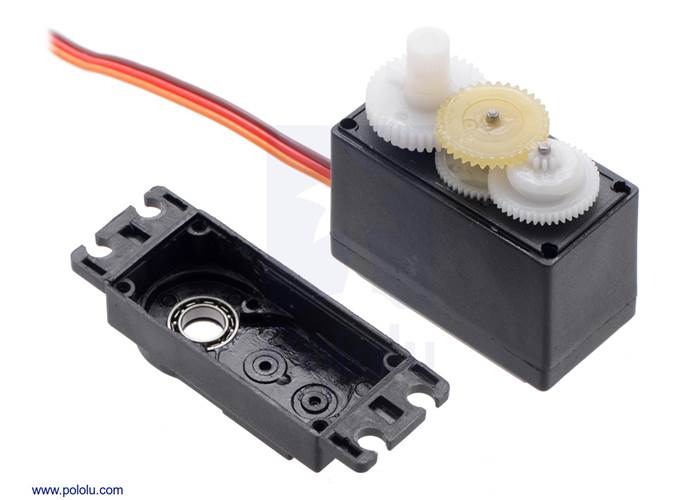

Two versions of this servo are available. This product is the FS5106B, which offers closed-loop position control over a limited range (approximately 180°). Alternatively, the FS5106R was designed specifically for open-loop speed control over an unlimited range. The FS5106B and FS5106R have identical dimensions and use the same motor and gear reduction.

Comparison to the Power HD 6001HB servo

This servo is a lower-cost alternative to the 6001HB from Power HD, which has nearly identical dimensions and similar performance. The two servos should be generally interchangeable for most applications. The picture below shows both the FS5106B and the 6001HB side by side:

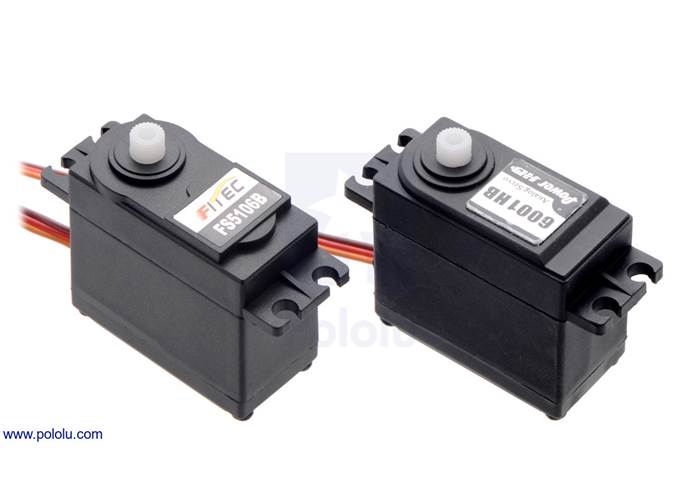

The FEETECH FS5106B and Power HD 6001HB have nearly identical dimensions and similar performance.

The FEETECH FS5106B and Power HD 6001HB have nearly identical dimensions and similar performance.


Specifications

Dimensions

Size: 40.8 × 20.1 × 38 mm
Weight: 41 g

General specifications

Digital?: N
Speed @ 6V: 0.16 sec/60°
Stall torque @ 6V: 6 kg·cm
Speed @ 4.8V: 0.18 sec/60°
Stall torque @ 4.8V: 5 kg·cm
Lead length: 12 in
Hardware included?: Y

FAQs

What are the three wires coming out of my servo?

Most standard radio control servos (and all RC servos we sell) have three wires, each a different colour. Usually, they are either black, red, and white, or they are brown, red, and orange/yellow:

  • brown or black = ground (GND, battery negative terminal)
  • red = servo power (Vservo, battery positive terminal)
  • orange, yellow, white, or blue = servo control signal line

Please check the specs for your servo to determine the proper power supply voltage, and please take care to plug the servo into your device in the proper orientation (plugging it in backwards could break the servo or your device).
