This is an anodized aluminium servo horn for the FEETECH Ultra-High-Torque, High-Voltage Digital Giant Servo FT5335M . The FT5335M ships with a set of plastic horns, but metal is the way to go if you want to get the most torque out of this 1/4-scale servo.
Special Order
Shipping from $7.90
+93 more from our supplier in 7-10 days
Our Code: SKU-004213
Supplier Link: [Pololu MPN:3431]
This metal servo horn is an optional accessory for the FEETECH FT5335M giant servo. For ultra-high-torque applications, this anodized aluminium horn makes a much more robust lever arm than the plastic horns included with the FT5335M servo.

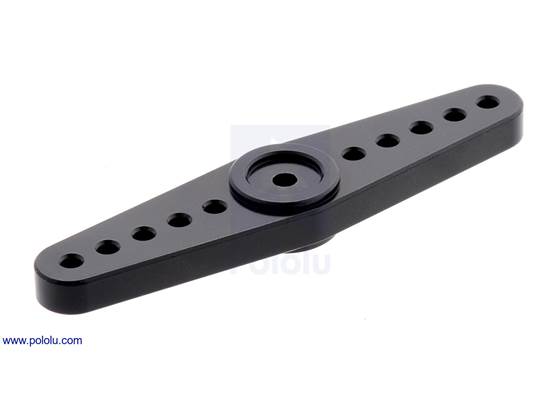

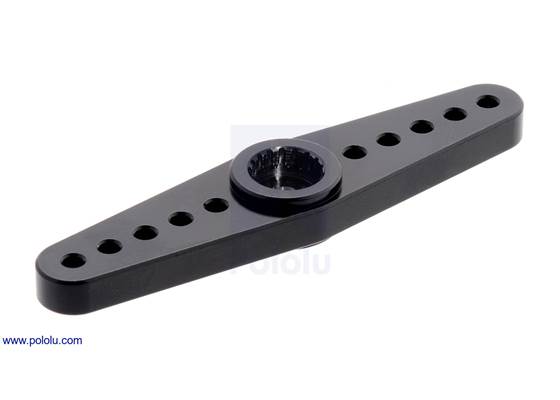

Metal servo horn for the FEETECH giant servo FT5335M. (1) |

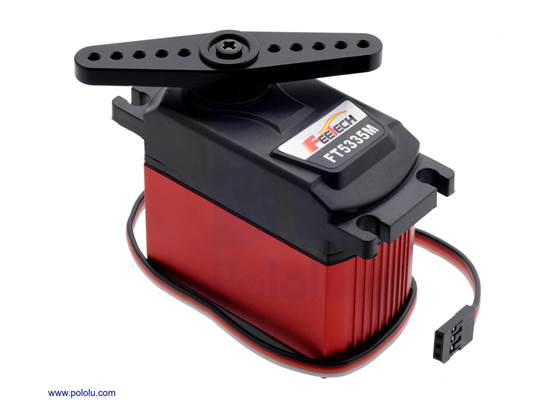

Metal servo horn on a FEETECH giant servo FT5335M. |
Note: This horn does not work well with the Power HD HD-1235MG giant servo. The output spline diameter on that servo is approximately 0.2 mm smaller than on the FT5335M, so the fit will be loose, and we do not recommend using those products together.
 |

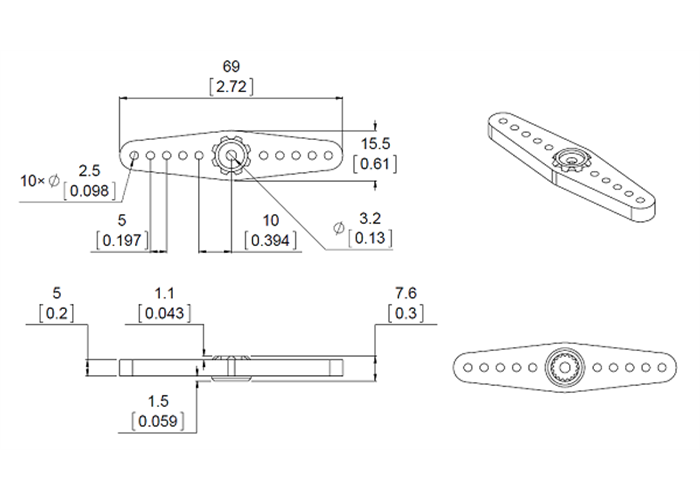

Dimensions (mm over inches) of the metal servo horn for the FEETECH giant servo FT5335M. |
|---|
This dimension diagram is also available as a downloadable pdf (75k pdf).

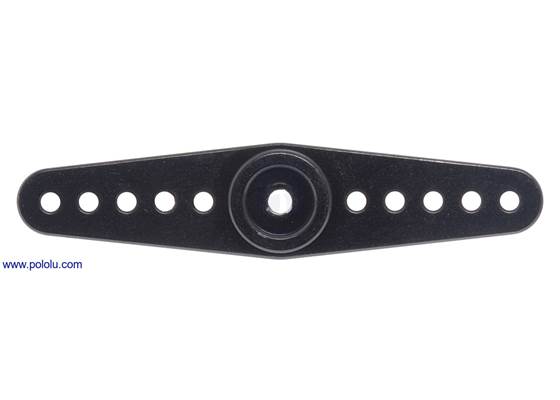

Metal servo horn for the FEETECH giant servo FT5335M. (2) (2)
| Size: | 69 × 15.5 × 5 mm |
|---|---|
| Weight: | 10 g |
| Material: | aluminium |
|---|
