FEETECH Sub-Micro Servo FS0403

AUD $8.95

Order As Required

Back orders: Ship 321 units in 7 days

Our Code: SKU-004509

Supplier: [Pololu MPN:3421]

The FS0403 analogue sub-micro servo from FEETECH is a great tiny actuator for a small robot mechanism. Servo horns and associated hardware are included. Key specs at 6 V: 0.08 sec/60°, 10 oz-in (0.7 kg-cm), 5 g.


Description

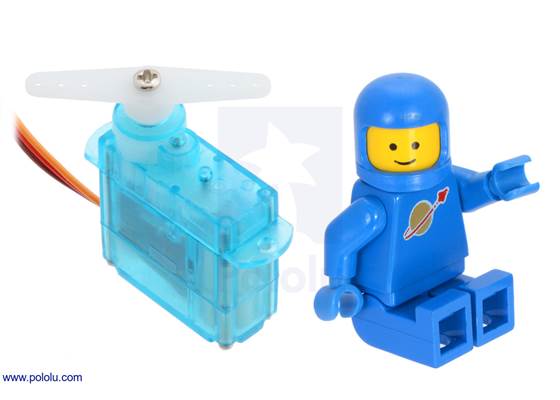

FEETECH FS0403 Sub-Micro Servo with a LEGO Minifigure as a size reference.

FEETECH FS0403 Sub-Micro Servo with a LEGO Minifigure as a size reference.

Overview

This is a great general-purpose actuator for tiny mechanisms. The FS0403 is a very small 5 g analogue servo from FEETECH (formerly known as Fitec) that offers position control over an approximate 120° operating angle for servo pulses between 900 µs and 2100 µs. As with most servos, the pulse range can be expanded to achieve an expanded operating angle, but the limits of this are not specified by FEETECH. (In our tests, we were able to get an expanded range of approximately 180° over a pulse range of 650 µs to 2500 µs, but as this is not part of FEETECH’s official specifications, it is possible different units will behave differently in this regard.)

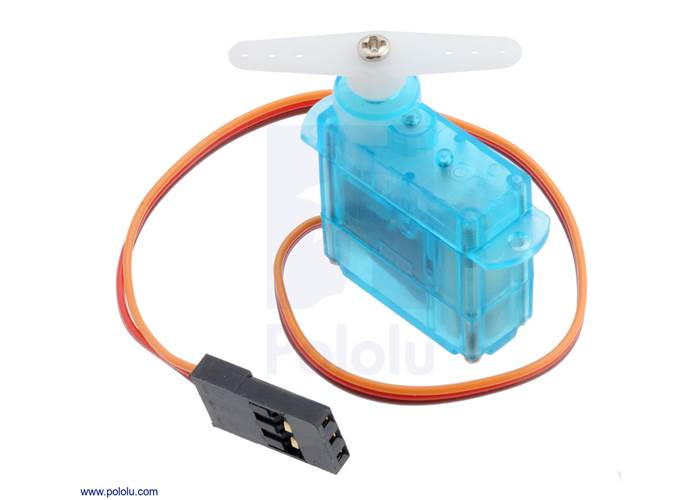

The servo has a 6″ (15 cm) cable that is terminated with a standard JR-style connector, which is Futaba-compatible, and it includes additional servo horns and mounting hardware.

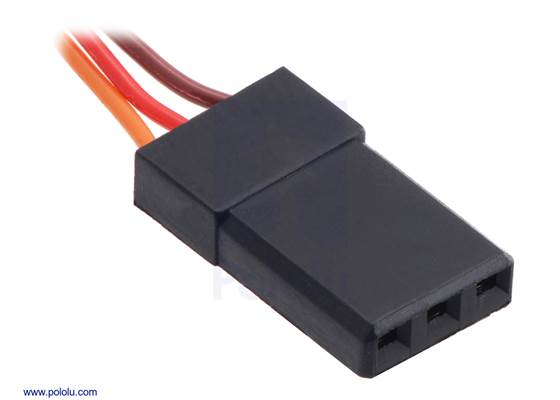

The servo cable is terminated with a Futaba-compatible JR-style connector.

The servo cable is terminated with a Futaba-compatible JR-style connector.

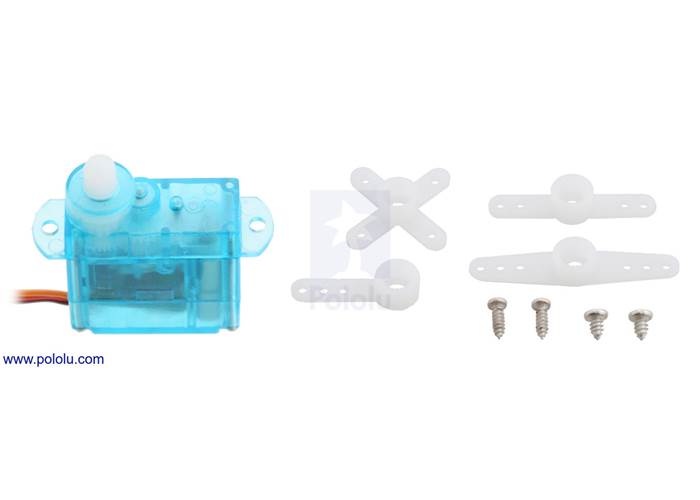

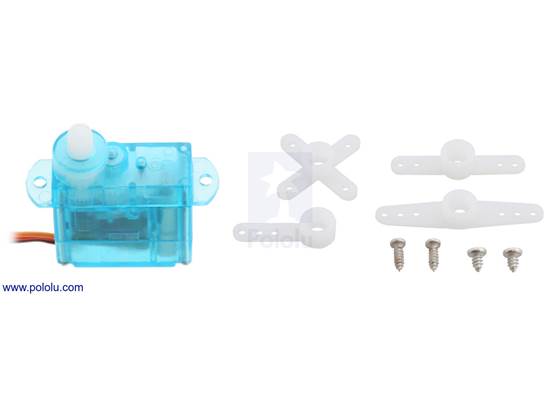

An example of hardware included with the FEETECH FS0403 sub-micro servo.  Actual hardware might vary.

An example of hardware included with the FEETECH FS0403 sub-micro servo. Actual hardware might vary.

You can find more information about this servo in its datasheet (97k pdf).

Note that, as with most hobby servos, stalling or back-driving this servo can damage


Specifications

Dimensions

Size: 20.0 × 8.3 × 19.3 mm
Weight: 5 g

General specifications

Digital?: N
Speed @ 6V: 0.08 sec/60°
Stall torque @ 6V: 0.7 kg·cm
Speed @ 4.8V: 0.09 sec/60°
Stall torque @ 4.8V: 0.6 kg·cm
Lead length: 6 in
Hardware included?: Y

Resources


FAQs

What are the three wires coming out of my servo?

Most standard radio control servos (and all RC servos we sell) have three wires, each a different colour. Usually, they are either black, red, and white, or they are brown, red, and orange/yellow:

  • brown or black = ground (GND, battery negative terminal)
  • red = servo power (Vservo, battery positive terminal)
  • orange, yellow, white, or blue = servo control signal line

Please check the specs for your servo to determine the proper power supply voltage, and please take care to plug the servo into your device in the proper orientation (plugging it in backwards could break the servo or your device).
