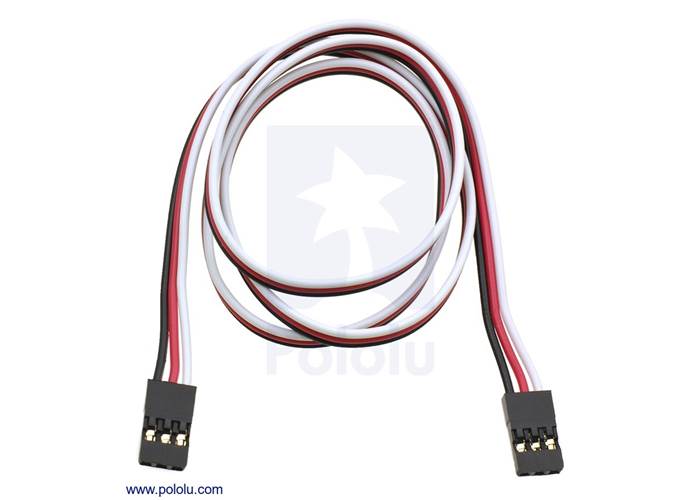

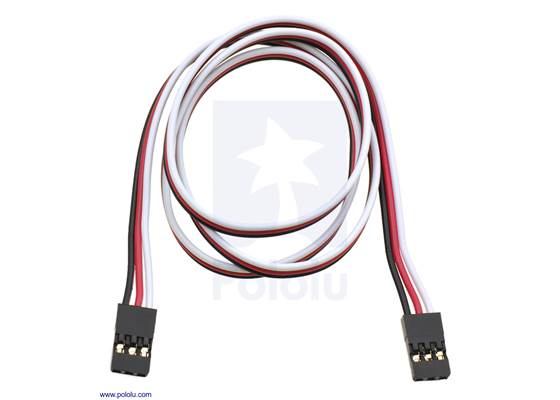

Servo Extension Cable 24" Female - Female

This 24-inch (600-mm), flat cable has 22-AWG wires and female “JR”-style connectors on both ends, the same kind of connector commonly found on RC hobby servos.

AUD$ 6.95

Special Order

We can ship 714 more in 7-10 days

Our Code: SKU-002410

Supplier Link: [Pololu MPN:785]

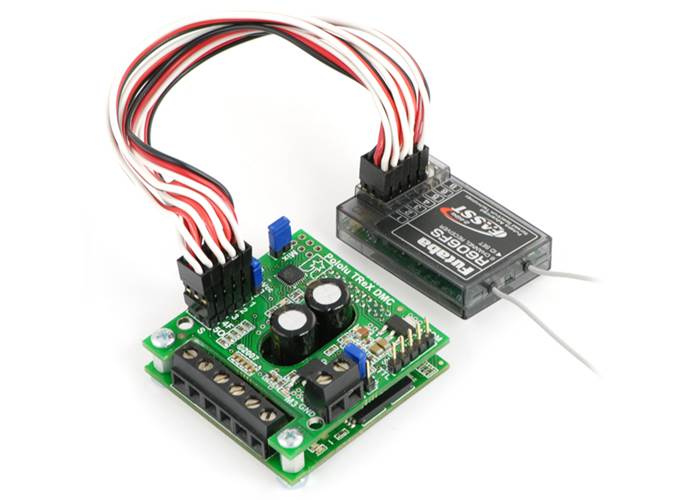

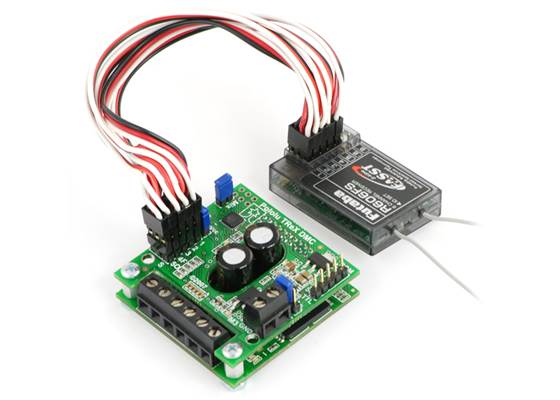

This servo extension cable has female JR connectors on both ends, so it can be used to make connections between devices with 0.1" 3-pin male headers, such as between RC servo controllers or RC receivers and motor controllers with an RC interface. The cable’s connectors are commonly found on RC servo leads and work with both male JR and male Futaba J connectors. They have gold-flashed contacts on a 0.1" spacing and are joined by 22-AWG, 60-strand wires that make this cable more flexible than standard servo cables.

Note: The cable’s female connectors are the same as what is found on most generic servos and fits nicely with 0.1" male headers, but is often referred to as “male” in the RC hobby industry. The picture below shows the cable connectors labelled with our gender convention.

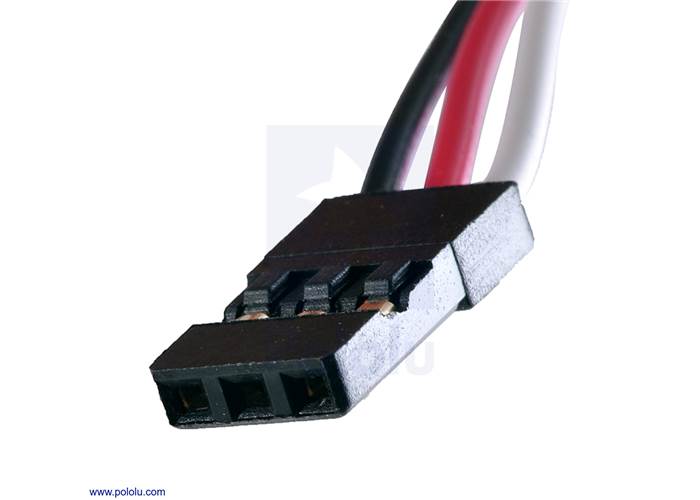

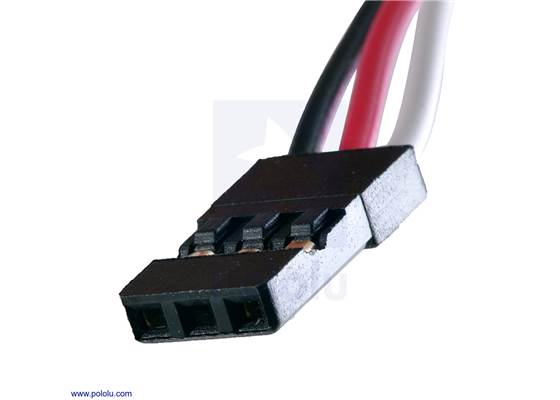

Female “JR”-style connector commonly found on servo cables (often referred to as “male” in the RC hobby industry)

These female-to-female cables are available in two styles: flat, with wires stuck together side by side, and twisted, with wires twisted around each other to decrease electromagnetic interference (EMI). The twisted versions are especially soft and flexible. These cables are also available in three lengths: 6", 12", and 24".

12" (300 mm) female-female RC servo extension cable

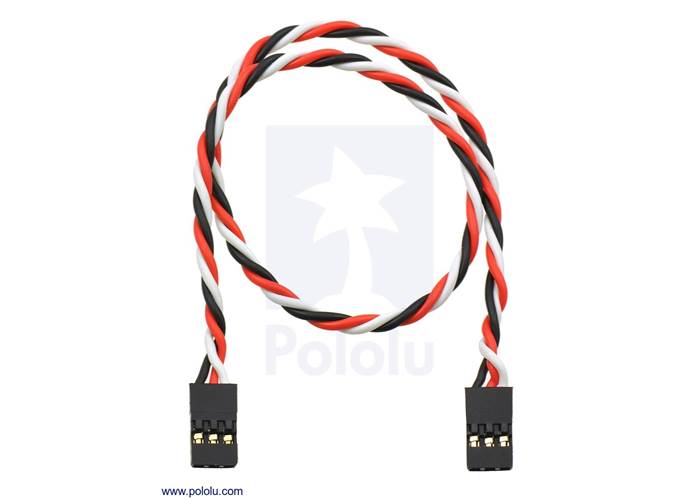

Twisted servo extension cable 12" female – female

We also sell flat and twisted male-to-female servo extension cables.

Servo cable colour convention

  • brown or black = ground (GND, battery negative terminal)
  • red = servo power (Vservo, battery positive terminal)
  • orange, yellow, white, or blue = servo control signal line

Note: Cable colour may vary from what is shown in the product picture. Possible colour combinations are black, red, and white or brown, red, and orange.



Length: 24 in

General specifications

Gender: Female-Female
Style: flat
