This version of the FT1117M miniature servo from FEETECH is specially modified to provide access to the feedback potentiometer through a quarter (green) wire, allowing you to directly measure the position of the output.
Special Order
Shipping from $7.90
+499 more from our supplier in 7-10 days
Our Code: SKU-005589
Supplier Link: [Pololu MPN:3440]

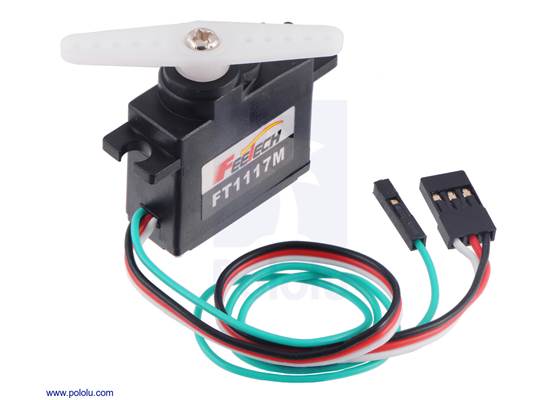

The FT1117M-FB is a specially modified version of FEETECH’s FT1117M miniature-sized servo that provides access to the feedback potentiometer through a quarter (green) wire, which makes it possible to directly measure the output angle. With this extra information, you can determine when the servo has reached its target position (or detect if something is interfering with its ability to get there). This feedback also enables more complex closed-loop control of the servo from your main controller.
The FT1117M-FB is a miniature-sized servo from FEETECH with the same output spline as standard servos, making it compatible with standard-size servo horns. The pinion gear is plastic, but the rest of the gear train consists of all metal gears, allowing this servo to deliver the kind of speed and torque typically associated with larger servos.

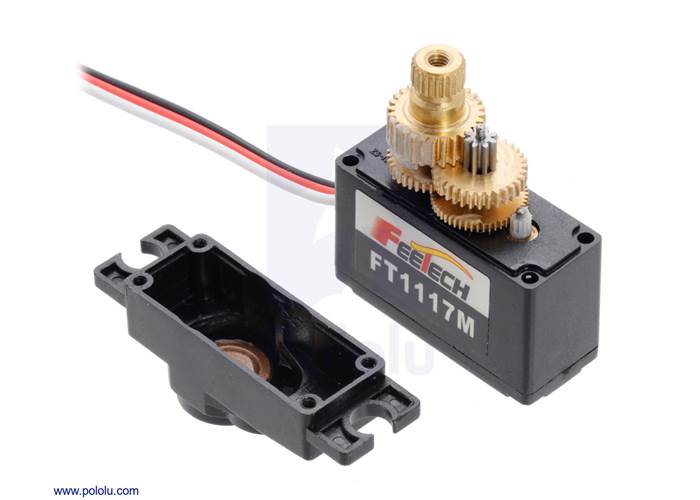

The FEETECH Mini Servo FT1117M has all metal gears after the plastic pinion gear.
Like the FT1117M, the FT1117M-FB works with standard RC servo pulses, providing an operating angle of approximately 120° over a servo pulse range of 900 µs to 2100 µs. The feedback voltage varies linearly over this range by a couple of volts. As with most servos, the pulse range can be expanded to achieve an expanded operating angle, but the limits of this are not specified by FEETECH. (In our tests, we were able to get an expanded range of approximately 165° over a pulse range of 550 µs to 2400 µs, but as this is not part of FEETECH’s official specifications, it is possible different units will behave differently in this regard.)
The servo signal, power, and ground are provided through a 3-wire servo cable that is terminated with a standard JR-style connector, which is Futaba-compatible. The feedback is accessible through a separate green wire that is terminated like our female premium jumper wires and works with standard 0.1″ male header pins. These cables are approximately 7″ (18 cm) long.

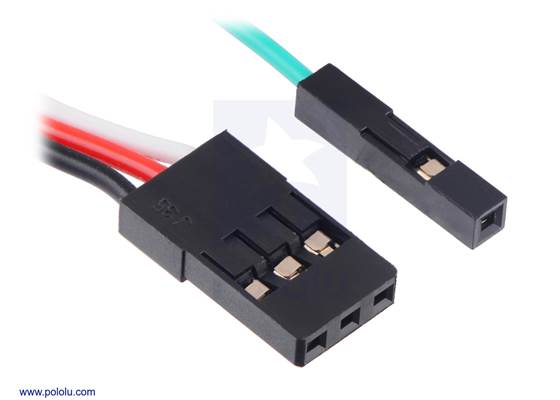

Servo and feedback connectors on the FEETECH servos with position feedback.
For more information about this servo, see the FT1117M datasheet (125k pdf) (please note that this is the datasheet for the standard FT1117M, so it does not include any information about the special feedback modification).

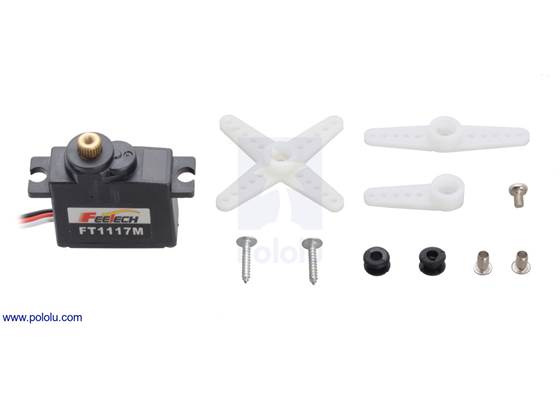

FEETECH Mini Servo FT1117M with included hardware (actual hardware might vary).
Note that, as with most hobby servos, stalling or back-driving this servo can damage it.
The FT1117M is a lower-cost alternative to the 1711MG from Power HD, which has nearly identical dimensions and similar performance. The two servos should be generally interchangeable for most applications. The picture below shows both the FT1117M and the 1711MG side by side:

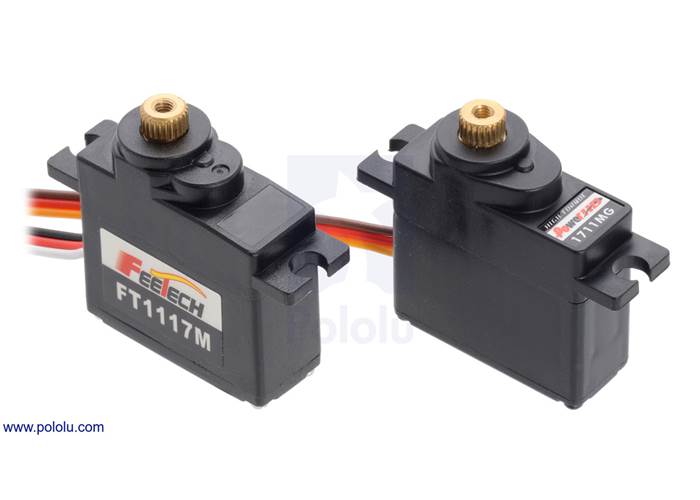

The FEETECH Mini Servo FT1117M and Power HD Mini Servo HD-1711MG servos have nearly identical dimensions and performance.
| Size: | 30 × 12 × 31.7 mm |
|---|---|
| Weight: | 22 g |
| Digital?: | N |
|---|---|
| Speed @ 6V: | 0.11 sec/60° |
| Stall torque @ 6V: | 3.5 kg·cm |
| Speed @ 4.8V: | 0.13 sec/60° |
| Stall torque @ 4.8V: | 3 kg·cm |
| Lead length: | 7 in |
| Hardware included?: | Y |
 |
Most standard radio control servos (and all RC servos we sell) have three wires, each a different colour. Usually, they are either black, red, and white, or they are brown, red, and orange/yellow:
Please check the specs for your servo to determine the proper power supply voltage, and please take care to plug the servo into your device in the proper orientation (plugging it in backwards could break the servo or your device).
We do not specify the range of rotation of our servos because this information is not generally available from servo manufacturers. RC servos are usually intended for controlling things like the steering mechanism in an RC car or the flaps on an RC plane. Manufacturers make sure that the range is enough for these typical applications, but they do not guarantee performance over a wider range.
This means most RC servos will rotate about 90° using the standard 1–2 ms pulse range used by most RC receivers. However, if you are using a controller capable of sending a wider range of pulses, many servos can rotate through almost 180°.
You can find a servo’s limits if you use a servo controller that can send pulses outside of the standard range (such as our Maestro servo controllers). To find the limits, use the lowest possible supply voltage at which the servo moves, and gradually increase or decrease the pulse width until the servo does not move any further or you hear the servo straining. Once the limit is reached, immediately move away from it to avoid damaging the servo, and configure your controller to never go past the limit.
You might be wondering why we do not just follow the above steps for all the servos we carry and list a specification for degrees of rotation. Unfortunately, since servo manufacturers do not specify the range of rotation, it might change from one manufacturing run to the next. They will not inform us about changes that are not specified, and we have no way of knowing if or when they might change their manufacturing process.
For more information about servos and how to control them, we recommend the series of blog posts on servos starting with: Introduction to servos.
