5V, 1.2A Pololu Step-Up Voltage Regulator U1V11F5

This compact (0.45″×0.6″) U1V11F5 switching step-up (or boost) voltage regulator efficiently generates 5 V from input voltages as low as 0.5 V.

AUD$ 5.95

In stock in Australia

We can ship 270 more in 7 days

Our Code: MCU-60178

Supplier Link: [Pololu MPN:2562]


Description

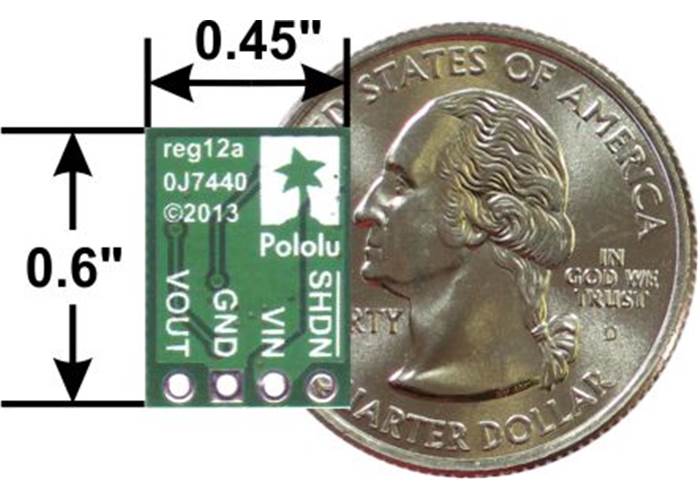

Pololu step-up voltage regulator U1V11F3/U1V11F5/U1V11A, bottom view with dimensions

This 5 V boost (step-up) voltage regulator generates higher output voltages from input voltages as low as 0.5 V, and it also automatically switches to a linear down-regulation mode when the input voltage exceeds the output. This makes it great for powering 5 V electronics projects from 1 to 3 NiMH, NiCd, or alkaline cells or from a single lithium-ion cell. Additionally, unlike most boost regulators, this unit offers a true shutdown option that turns off power to the load (with typical boost regulators, the input voltage will pass directly through to the output when they are disabled).

When boosting, this module acts as a switching regulator (also called switched-mode power supplies (SMPS) or DC-to-DC converters) and has a typical efficiency between 70% to 90%. The available output current is a function of the input voltage, output voltage, and efficiency (see Typical Efficiency and Output Current section below), but the input current can typically be as high as 1.2 A. This regulator is also available with a fixed 3.3 V or adjustable output, and very similar regulators are available in a much smaller size with a fixed 3.3 V or fixed 5 V output.

The regulator’s thermal shutdown engages at around 140°C and helps prevent damage from overheating, but it does not have short-circuit or reverse-voltage protection.

Pololu step-up voltage regulator U1V11F3/U1V11F5 in a breadboard

Features

  • Input voltage: 0.5 V to 5.5 V
  • Fixed 5 V output with 4% accuracy
  • True shutdown option that turns off power to the load
  • Automatic linear down-regulation when the input voltage is greater than the output voltage
  • 1.2 A switch allows for input currents up to 1.2 A
  • Good efficiency at light load: <1 mA typical no-load quiescent current, though it can exceed 1 mA for very low input voltages (<100 μA typical quiescent current with SHDN = LOW)
  • Integrated over-temperature shutoff
  • Small size: 0.45″ × 0.6″; × 0.1″ (12 × 15 × 3 mm)

Using the Regulator

Connections

The boost regulator has four connections: shutdown (SHDN), input voltage (VIN), ground (GND), and output voltage (VOUT).

The SHDN can be driven low (typically under 0.4 V) to power down the regulator and turn off power to the load (unlike most boost regulators, the input power does not pass through to the output when the board is disabled). This pin is internally pulled up to VIN through an 100 kΩ resistor, so it can be left disconnected or connected directly to VIN if you do not need to use the disable feature. The disable threshold is a function of the input voltage as follows:

  • For VIN < 0.8 V, SHDN voltage must be below 0.1×VIN to disable the regulator and above 0.9×VIN to enable it.
  • For 0.8 V ≤ VIN ≤ 1.5 V, SHDN voltage must be below 0.2×VIN to disable the regulator and above 0.8×VIN to enable it.
  • For VIN > 1.5 V, SHDN voltage must be below 0.4 V to disable the regulator and above 1.2 V to enable it.

The input voltage, VIN, must be at least 0.5 V for the regulator to turn on. However, once the regulator is on, the input voltage can drop as low as 0.3 V and the 5 V output voltage will be maintained on VOUT. Unlike standard boost regulators, this regulator has an additional linear down-regulation mode that allows it to convert input voltages as high as 5.5 V down to 5 V for small to moderate sized loads (for example, in Polou's tests, the adjustable version of this regulator was able to supply 300 mA while converting an input of 5.5 V down to 1.8 V). When the input voltage exceeds 5 V, the regulator automatically switches to this down-regulation mode. The input voltage should not exceed 5.5 V. Please be wary of destructive LC spikes that might cause the input voltage to surpass 5.5 V (see below for more information).

The four connections are labelled on the back side of the PCB, and they are arranged with a 0.1″ spacing along the edge of the board for compatibility with solderless breadboards, connectors, and other prototyping arrangements that use a 0.1″ grid. You can solder wires directly to the board or solder in either the 4×1 straight male header strip or the 4×1 right-angle male header strip that is included.

Pololu step-up voltage regulator U1V11F3/U1V11F5 with included hardware

Typical Efficiency and Output Current

The efficiency of a voltage regulator, defined as (Power out)/(Power in), is an important measure of its performance, especially when battery life or heat are concerns. As shown in the graphs below, this switching regulator typically has an efficiency of 70 to 90%.

Typical efficiency of Pololu 5V step-up voltage regulator U1V11F5

The maximum achievable output current is approximately proportional to the ratio of the input voltage to the output voltage. If the input current exceeds the switch current limit (typically somewhere between 1.2 and 1.5 A), the output voltage will begin to drop. Additionally, the maximum output current can depend on other factors, including the ambient temperature, air flow, and heat sinking.

LC Voltage Spikes

When connecting voltage to electronic circuits, the initial rush of current can cause damaging voltage spikes that are much higher than the input voltage. In Polou's tests with typical power leads (~30″ test clips), input voltages above 4.5 V caused voltage spikes that could potentially damage the regulator. You can suppress such spikes by soldering a 33 μF or larger electrolytic capacitor close to the regulator between VIN and GND.

More information about LC spikes can be found in Polou's application note, Understanding Destructive LC Voltage Spikes.



Specifications

Dimensions

Size: 0.45″ × 0.6″ × 0.1″1
Weight: 0.7 g1

General specifications

Minimum operating voltage: 0.5 V
Maximum operating voltage: 5.5 V
Maximum input current: 1.2 A2
Output voltage: 5 V
Reverse voltage protection?: N
Maximum quiescent current: 3 mA3

Identifying markings

PCB dev codes: reg12a
Other PCB markings: 0J7440

Notes:

1
Without included optional headers.
2
Regulator may overheat at lower input currents when VIN is much lower than VOUT. Available output current is a function of VIN, VOUT, and the regulator efficiency.
3
The highest quiescent currents occur at very low input voltages; for most of the input voltage range, the quiescent current is well below 1 mA.

Resources

File downloads

Pololu Step-Up Voltage Regulator U1V11x schematic diagram (177k pdf)
Printable schematic diagram for the U1V11x family of Pololu step-up voltage regulators: U1V11A, U1V11F3, and U1V11F5.
Texas Instruments TPS6120x regulator datasheet (1MB pdf)

Related Products
