This is an anodized aluminium servo horn for the Power HD Ultra-High-Torque, High-Voltage Digital Giant Servo HD-1235MG . The HD-1235 ships with a set of plastic horns, but metal is the way to go if you want to get the most torque out of this 1/4-scale servo.
Special Order
Shipping from $2.90
+30 more from our supplier in 7-10 days
Our Code: SKU-003187
Supplier Link: [Pololu MPN:2374]
This is an anodized aluminum servo horn for the Power HD Ultra-High-Torque, High-Voltage Digital Giant Servo HD-1235MG. The HD-1235 ships with a set of plastic horns, but metal is the way to go if you want to get the most torque out of this 1/4-scale servo.

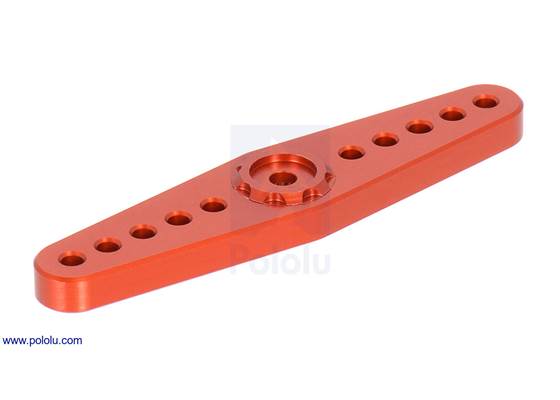

This metal servo horn is an optional accessory for the Power HD’s HD-1235MG giant servo. For ultra-high-torque applications, this anodized aluminium horn makes a much more robust lever arm than the plastic horns included with the HD-1235MG servo.

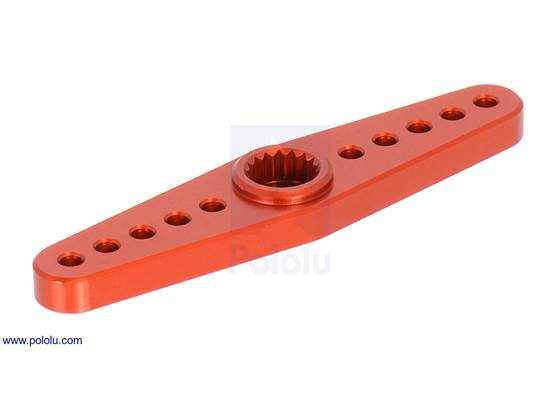

Metal servo horn for the Power HD giant servo HD-1235MG. (1) |

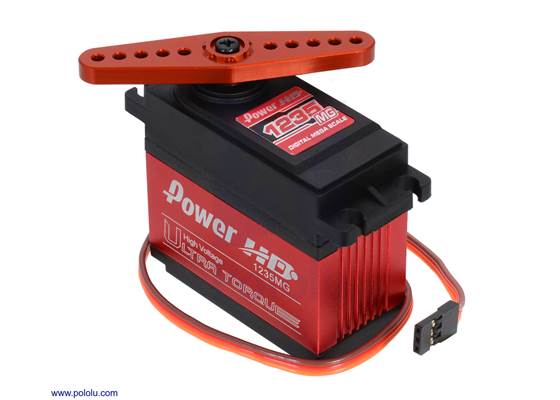

Metal servo horn on a Power HD giant servo HD-1235MG. |
Note: This horn does not work with the FEETECH FT5335M giant servo (the output spline diameter on that servo is approximately 0.2 mm bigger than on the 1235MG).
 |

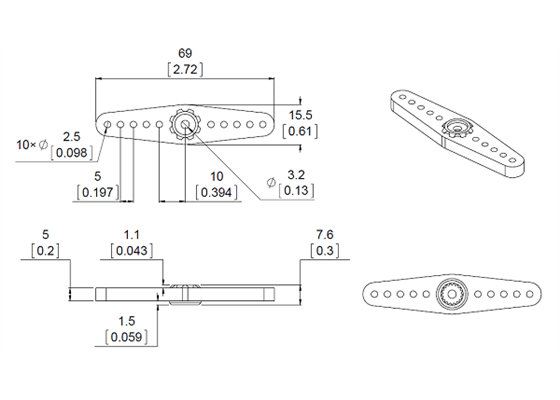

Dimensions (mm over inches) of the metal servo horn for the Power HD giant servo HD-1235MG. |
|---|
This dimension diagram is also available as a downloadable pdf (79k pdf).

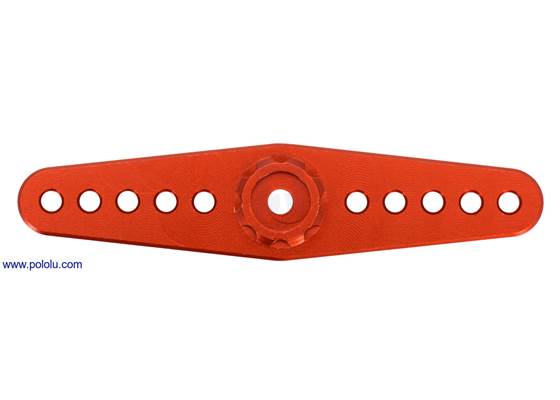

Metal servo horn for the Power HD giant servo HD-1235MG. (2) (2)
| Size: | 69 × 15.5 × 5 mm |
|---|---|
| Weight: | 10 g |
| Material: | aluminium |
|---|
