FEETECH Standard Servo FS5103B

AUD $16.95

Order As Required

Back orders: Ship 143 units in 7 days

Our Code: SKU-004430

Supplier: [Pololu MPN:3424]

The FS5103B is a general-purpose, low-cost standard analogue servo from FEETECH. Two ball bearings help reduce friction and improve performance. Servo horns and associated hardware are included. Key specs at 6 V: 0.16 sec/60°, 53 oz-in (3.8 kg-cm), 40 g.


Description

Overview

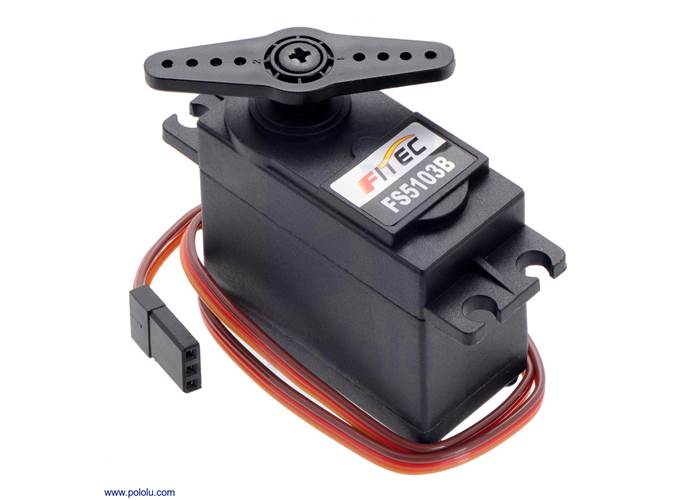

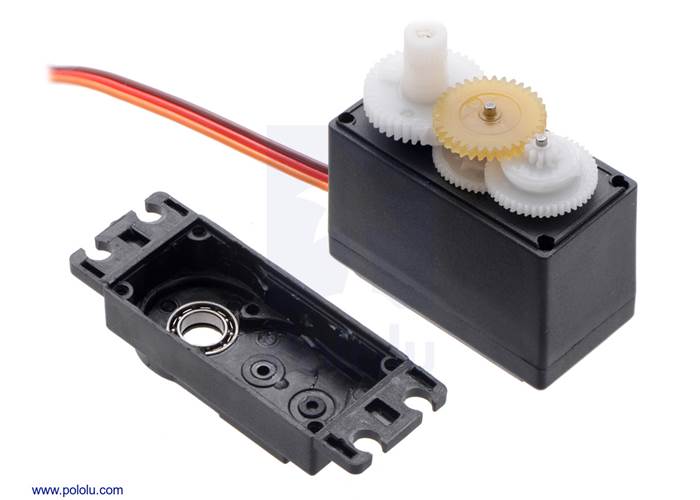

The FS5103B is a general-purpose standard-size analogue servo from FEETECH. The output shaft is supported by two ball bearings for reduced friction. The FS5106B works with standard RC servo pulses, providing a running angle of approximately 180° over a servo pulse range of 600 µs to 2400 µs, and it has a 12″ (30 cm) cable that is terminated with a standard JR-style connector, which is Futaba-compatible.

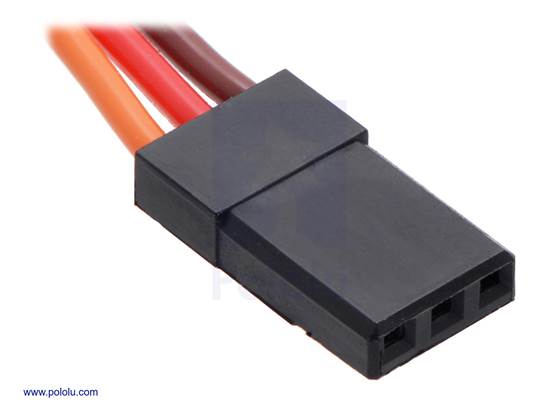

The servo cable is terminated with a Futaba-compatible JR-style connector.

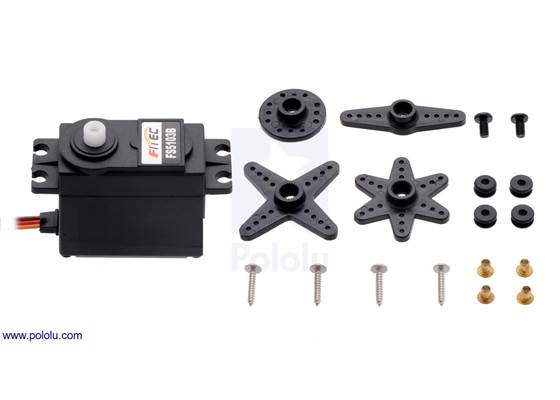

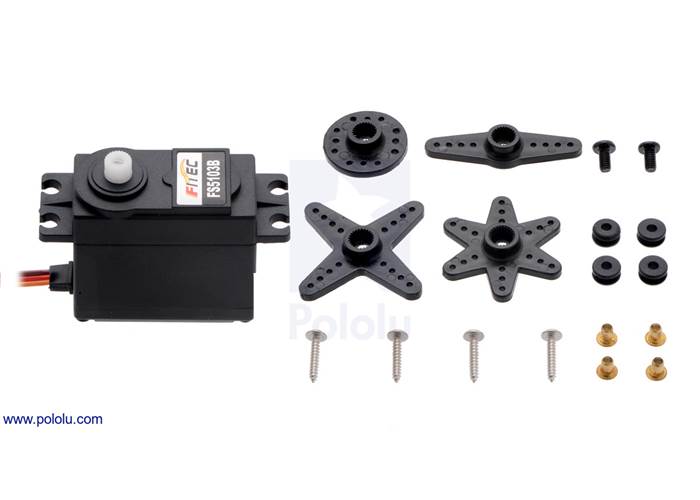

FEETECH Standard Servo FS5103B with included hardware (actual hardware might vary).

FEETECH Standard Servo FS5103B with included hardware (actual hardware might vary).

Note that, as with most hobby servos, stalling or back-driving this servo can damage it.

Comparison to the Power HD 3001HB servo

This servo is a lower-cost alternative to the 3001HB from Power HD, which has nearly identical dimensions and similar performance. The two servos should be generally interchangeable for most applications. The picture below shows both the FS5103B and the 3001HB side by side:

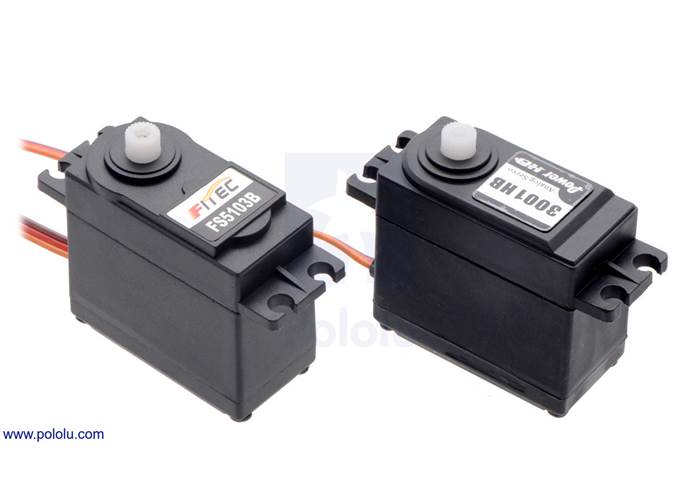

The FEETECH FS5103B and Power HD 3001HB have nearly identical dimensions and similar performance.

The FEETECH FS5103B and Power HD 3001HB have nearly identical dimensions and similar performance.


Specifications

Dimensions

Size: 40.8 × 20.1 × 38 mm
Weight: 40 g

General specifications

Digital?: N
Speed @ 6V: 0.16 sec/60°
Stall torque @ 6V: 3.8 kg·cm
Speed @ 4.8V: 0.18 sec/60°
Stall torque @ 4.8V: 3 kg·cm
Lead length: 12 in
Hardware included?: Y

FAQs

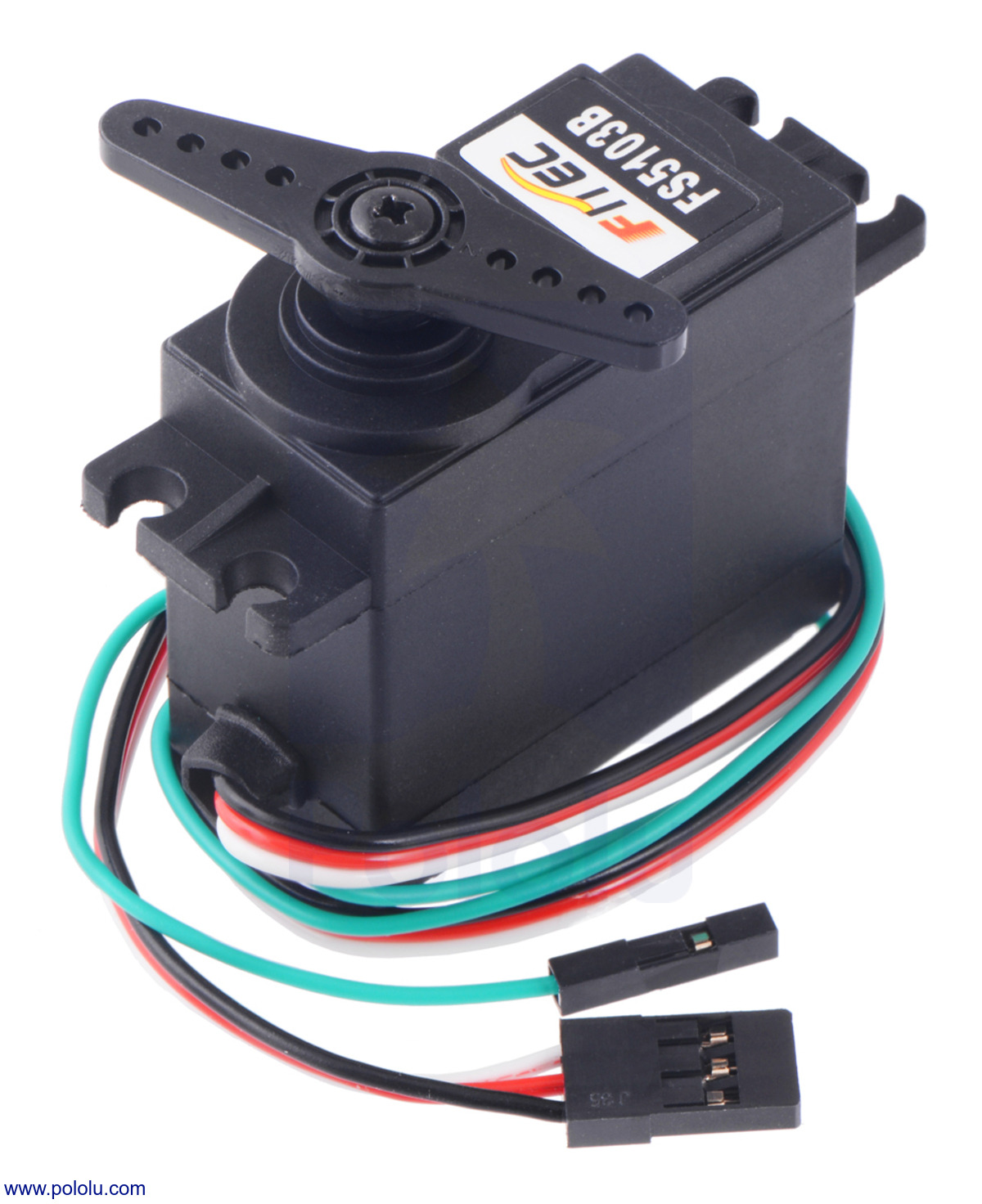

What are the three wires coming out of my servo?

Most standard radio control servos (and all RC servos we sell) have three wires, each a different colour. Usually, they are either black, red, and white, or they are brown, red, and orange/yellow:

  • brown or black = ground (GND, battery negative terminal)
  • red = servo power (Vservo, battery positive terminal)
  • orange, yellow, white, or blue = servo control signal line

Please check the specs for your servo to determine the proper power supply voltage, and please take care to plug the servo into your device in the proper orientation (plugging it in backwards could break the servo or your device).
